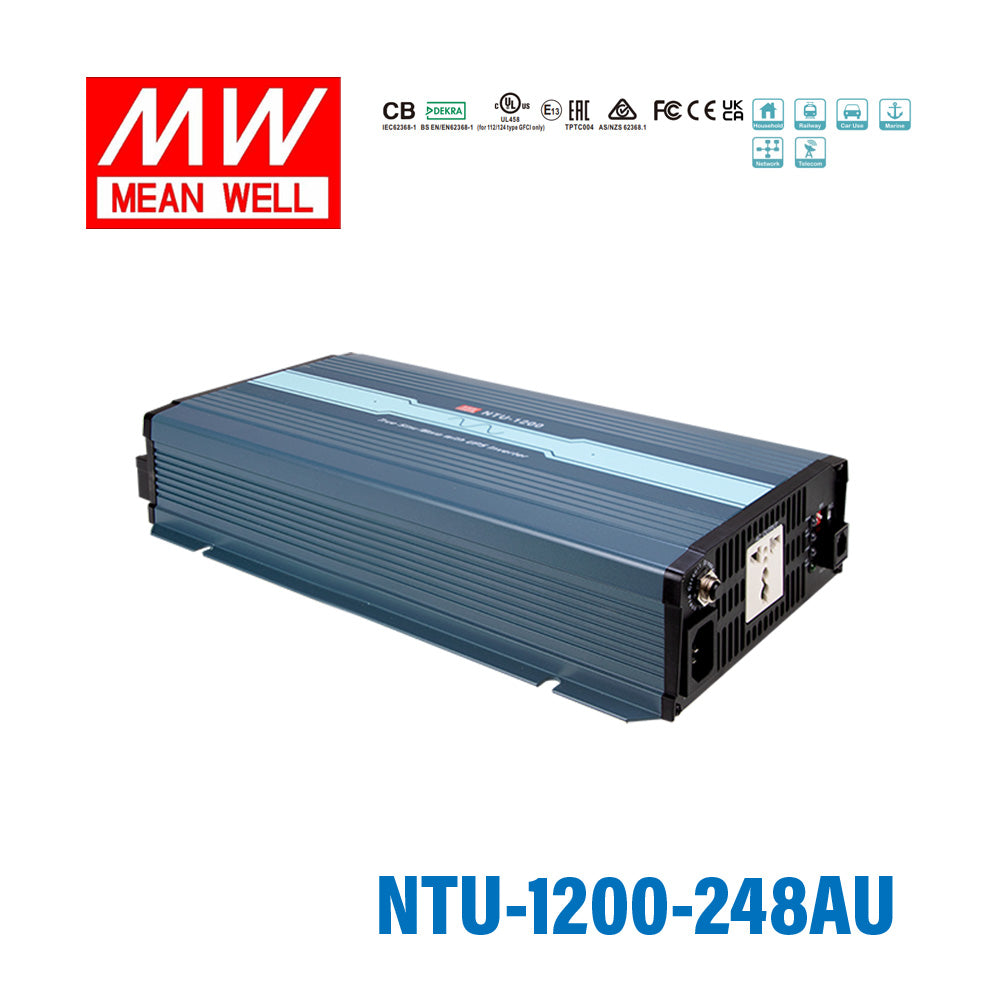

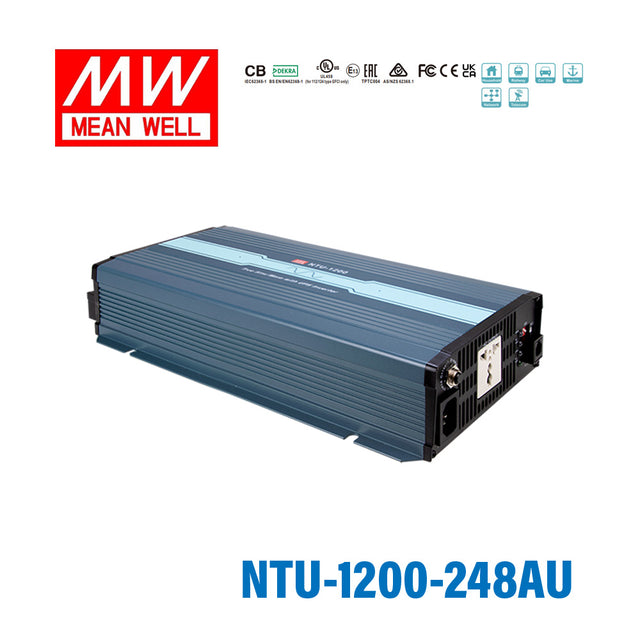

Mean Well NTU-1200-248AU True Sine Wave DC-AC Inverter 1200W 220V out 48V in with AU Socket
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-1200-248AU True Sine Wave DC-AC Inverter 1200W 220V o...
The NTU-1200 is a 1200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating1200 Watt
-
Output Voltage240 Volt
-
Input Voltage40V~66V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length13.11 in
-
Width7.24 in
-
Height2.76 in
-
Weight7.28 lb
::specification::
Frequently Asked Questions
What is the main purpose of the Mean Well NTU-1200-248AU?
The NTU-1200-248AU is a true sine wave DC-AC inverter designed to convert 48V DC input to AC output for professional power applications. This model is rated for 1200W continuous output and is suited to systems that require stable AC power from a DC battery source.
What kind of AC output does this inverter provide?
This model provides true sine wave AC output with total harmonic distortion below 3%. It is intended for applications where cleaner output waveform quality is preferred over modified sine wave alternatives.
What input and output voltage does the NTU-1200-248AU use?
The NTU-1200-248AU uses a 48V DC input and is specified here with 240V AC output. Its AC output voltage range is selectable by DIP switch, with options including 100/110/115/120VAC and 200/220/230/240VAC.
Does this inverter support high startup or surge loads?
Yes. The NTU-1200-248AU is rated for 1200W continuous output and supports surge power up to 2000W. It also includes overload protection behavior with defined timing at higher load levels.
Does this model include UPS or bypass functionality?
Yes. This inverter includes a built-in UPS function with AC bypass. That makes it relevant for applications where continuity of AC output is important during source changes.
What battery types is the NTU-1200-248AU compatible with?
Mean Well specifies this model as suitable for both lead-acid and li-ion batteries. It also includes battery over-discharge protection through low voltage disconnect.
Can this inverter be used in demanding environmental conditions?
It is specified for operation from -25°C to +70°C, subject to the output derating curve. The unit also uses a temperature-controlled cooling fan and conformal coating, which support use in tougher operating environments.
What protection and monitoring features are built into this model?
The NTU-1200-248AU includes protection for short circuit, overload, and over voltage, along with battery low voltage disconnect. It also has front panel status indicators, remote on-off capability, and RS-232 communication support.
What approvals and warranty come with the NTU-1200-248AU?
This model is CB IEC62368-1 approved, and its design refers to AS/NZS 62368.1. It is backed by a 3-year warranty from Mean Well.
