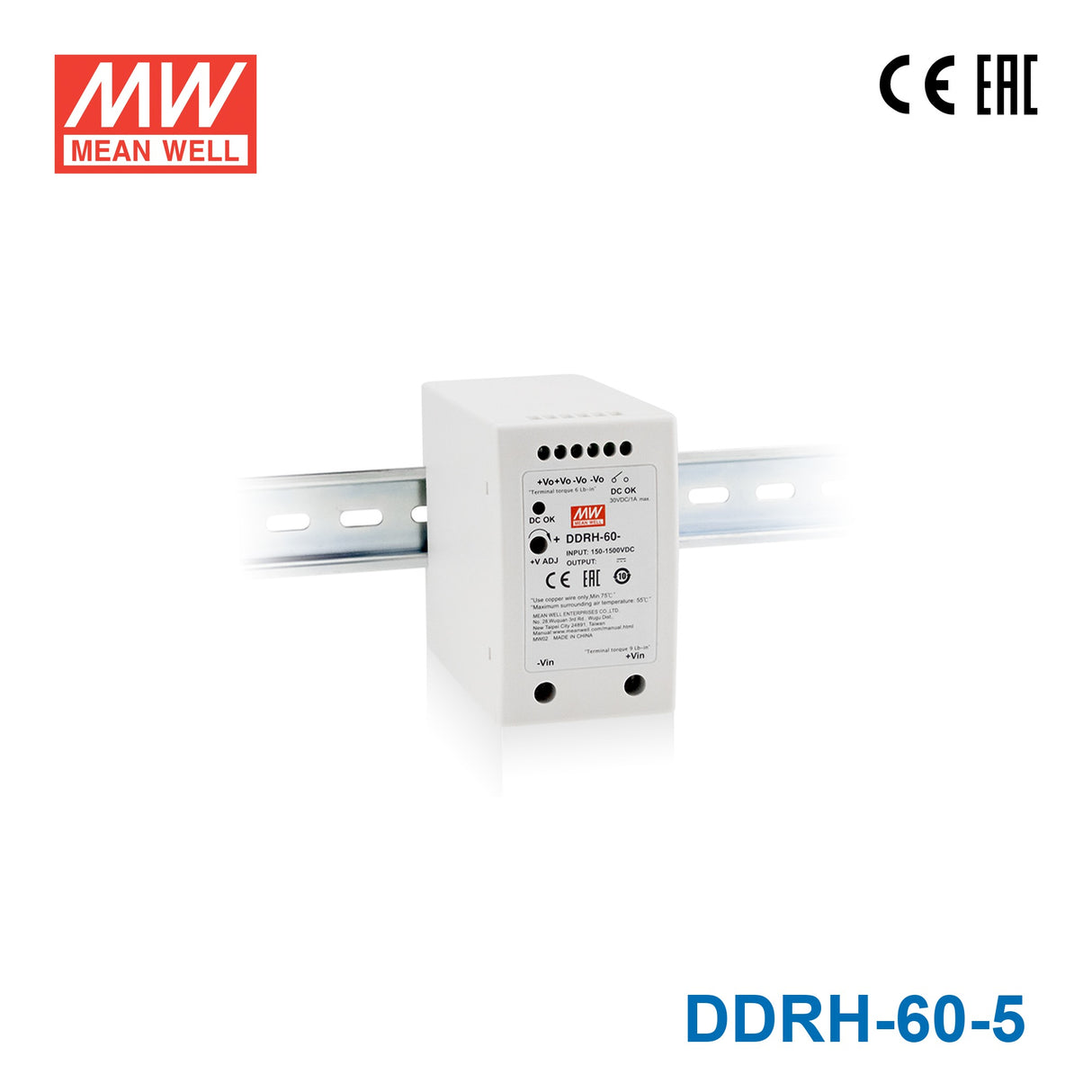

Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V 10A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V 10A
The DDRH-60 is a 50W Mean Well DC-DC converter (input: 150~1500VAC, operating temperature: -30~+80°C).
Key Features
- ✓ Input voltage: 150~1500VAC
- ✓ Output voltage (max): 5V
- ✓ Rated output current: 10A
- ✓ Operating temperature: -30~+80°C
- ✓ Safety certifications: CE, EAC
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage150V~1500V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length2.24 in
-
Width3.68 in
-
Height4.13 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the DDRH-60-5 power 5V embedded computing modules or single-board computers in industrial control systems?
Yes. The DDRH-60-5 provides 5V at 10A (50W), which is sufficient to power multiple embedded SBCs, Raspberry Pi-class industrial computers, or 5V microcontroller platforms in automation systems drawing from a high-voltage DC bus.
Is the DDRH-60-5 suitable for supplying 5V to barcode scanners, RFID readers, or HMI touch panels in a warehouse automation system?
At 50W and 10A on a 5V rail, the DDRH-60-5 can simultaneously supply several barcode scanners, RFID readers, and small HMI panels used in warehouse automation or logistics conveyor systems.
Can the DDRH-60-5 handle input from photovoltaic or energy storage systems with high open-circuit voltages?
Yes. The 150–1500VDC ultra-wide input range accommodates high-voltage PV string outputs and battery bank systems that exceed standard low-voltage thresholds, converting them to a regulated 5V, 10A supply.
Is the DDRH-60-5 appropriate for DIN rail mounting in outdoor or temperature-extreme environments?
The operating range of –30°C to +80°C suits most industrial indoor and protected outdoor installations. No IP rating is stated, so the mounting enclosure must provide the required weather or contamination protection.
Can the output voltage of the DDRH-60-5 be adjusted above 5V for specific load requirements?
Yes. The output is adjustable up to +20% above the nominal 5V, allowing the output to be set to approximately 6V, which can be useful for applications requiring a slightly elevated supply or cable drop compensation.
How does the DDRH-60-5 differ from the DDRH-60-12, DDRH-60-24, and DDRH-60-48 in the DDRH-60 series?
All four DDRH-60 models share the 150–1500VDC input, 57mm slim-width form factor, fanless design, and +20% adjustable output. The DDRH-60-5 delivers 5V at 10A (50W), compared to 12V at 5A (60W), 24V at 2.5A (60W), and 48V at 1.25A (60W) for the other three variants.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DDRH-60 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DDRH-60-48 Ultra Wide Input DC-DC Converter, 60W 48V 1.25A | 60W | 48V | 1.25A | Indoor | $72.01 | View |
| Mean Well DDRH-60-24 Ultra Wide Input DC-DC Converter, 60W 24V 2.5A | 60W | 24V | 2.5A | Indoor | $74.30 | View |
| Mean Well DDRH-60-12 Ultra Wide Input DC-DC Converter, 60W 12V 5A | 60W | 12V | 5A | Indoor | $72.01 | View |
