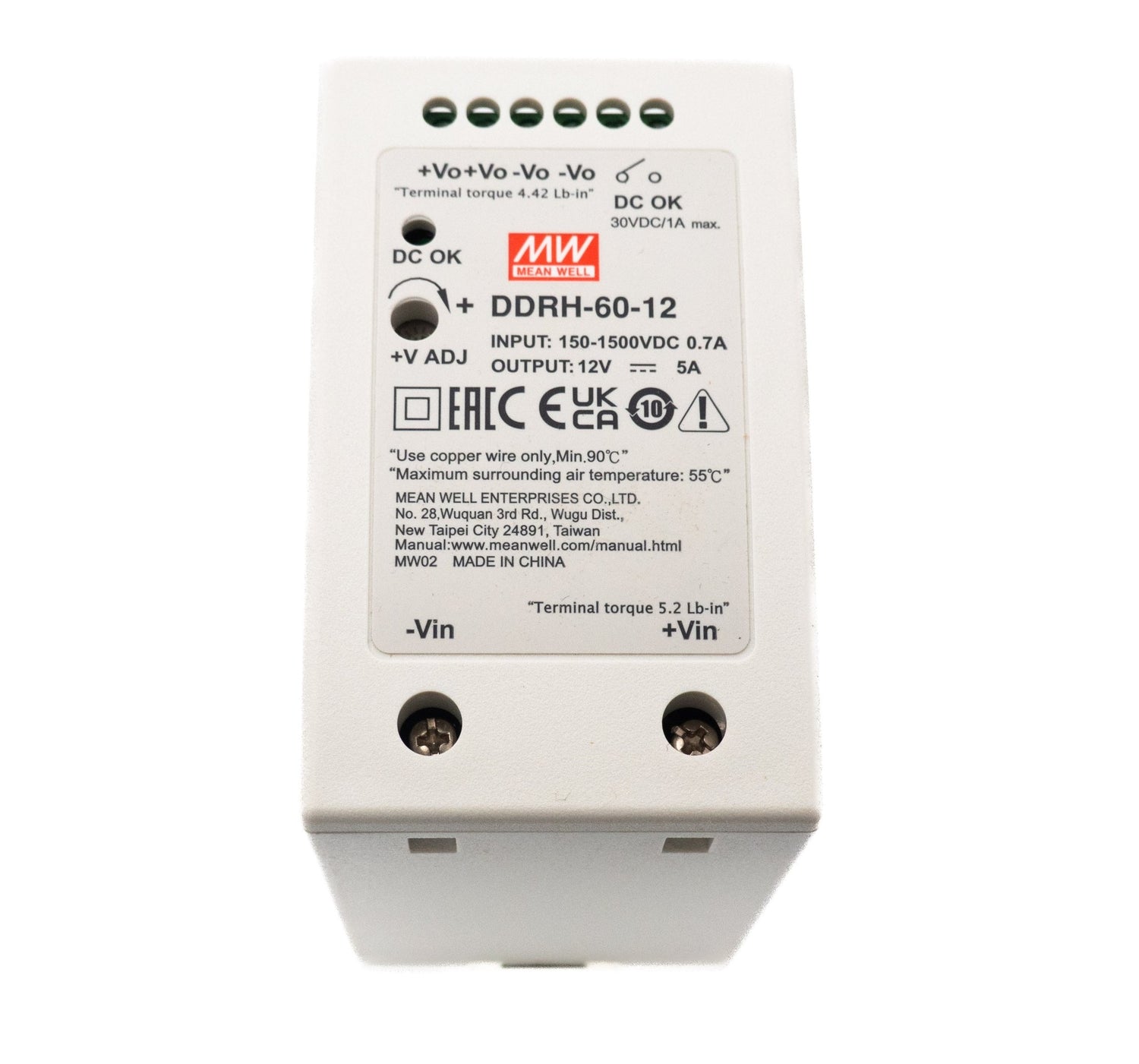

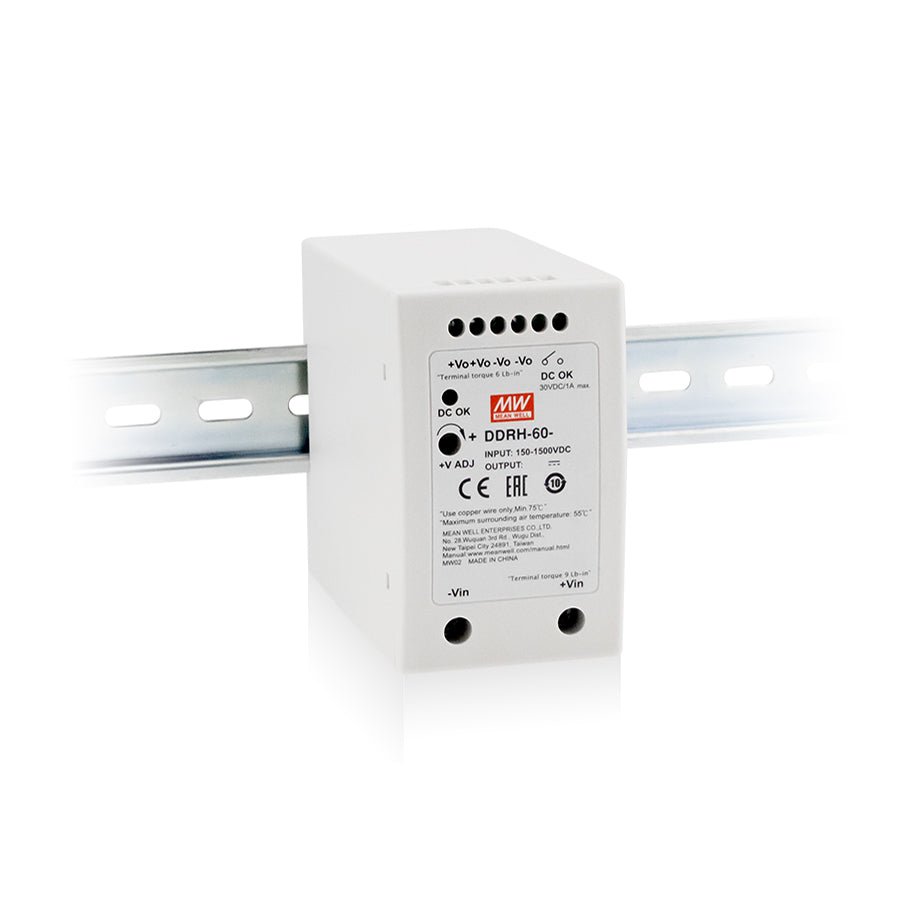

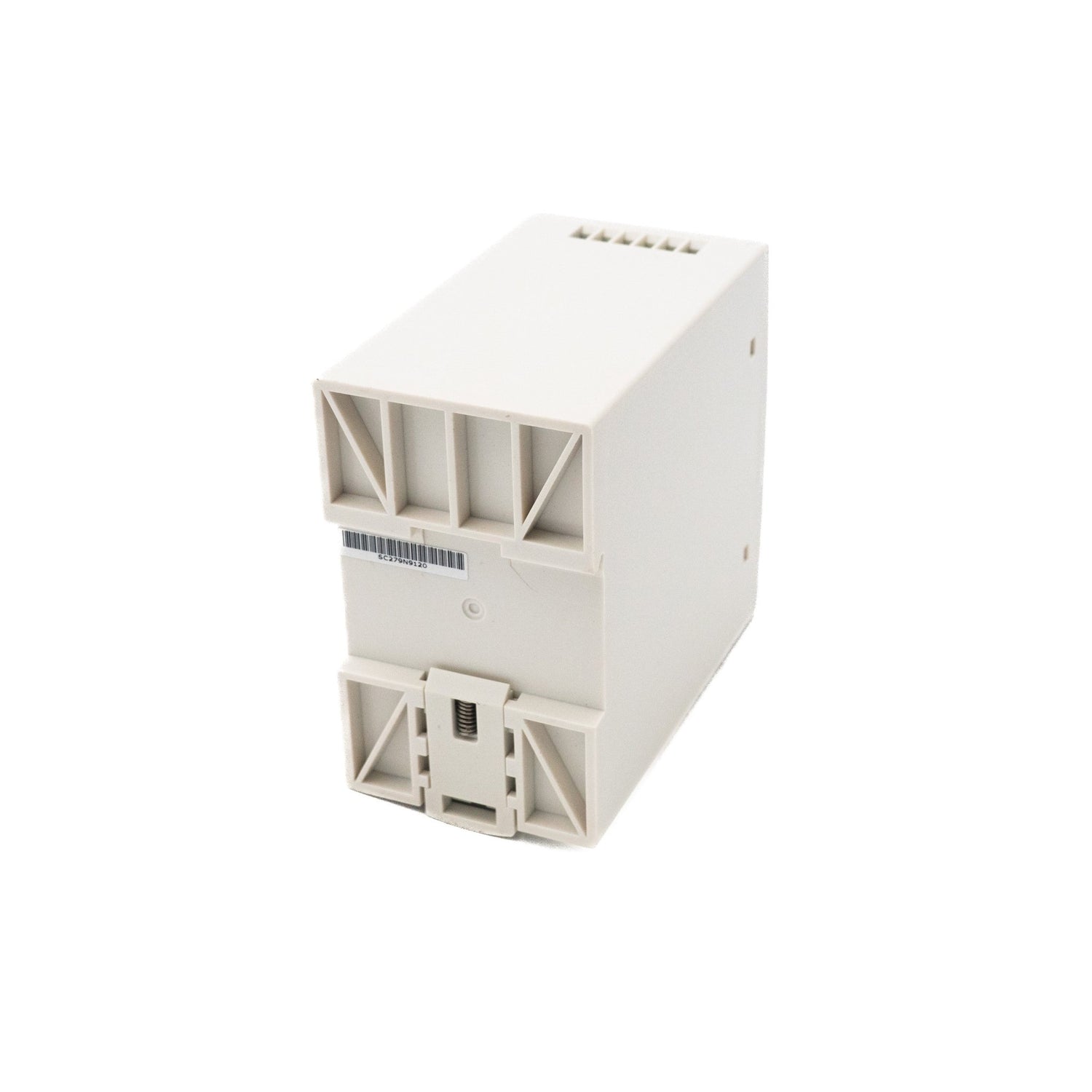

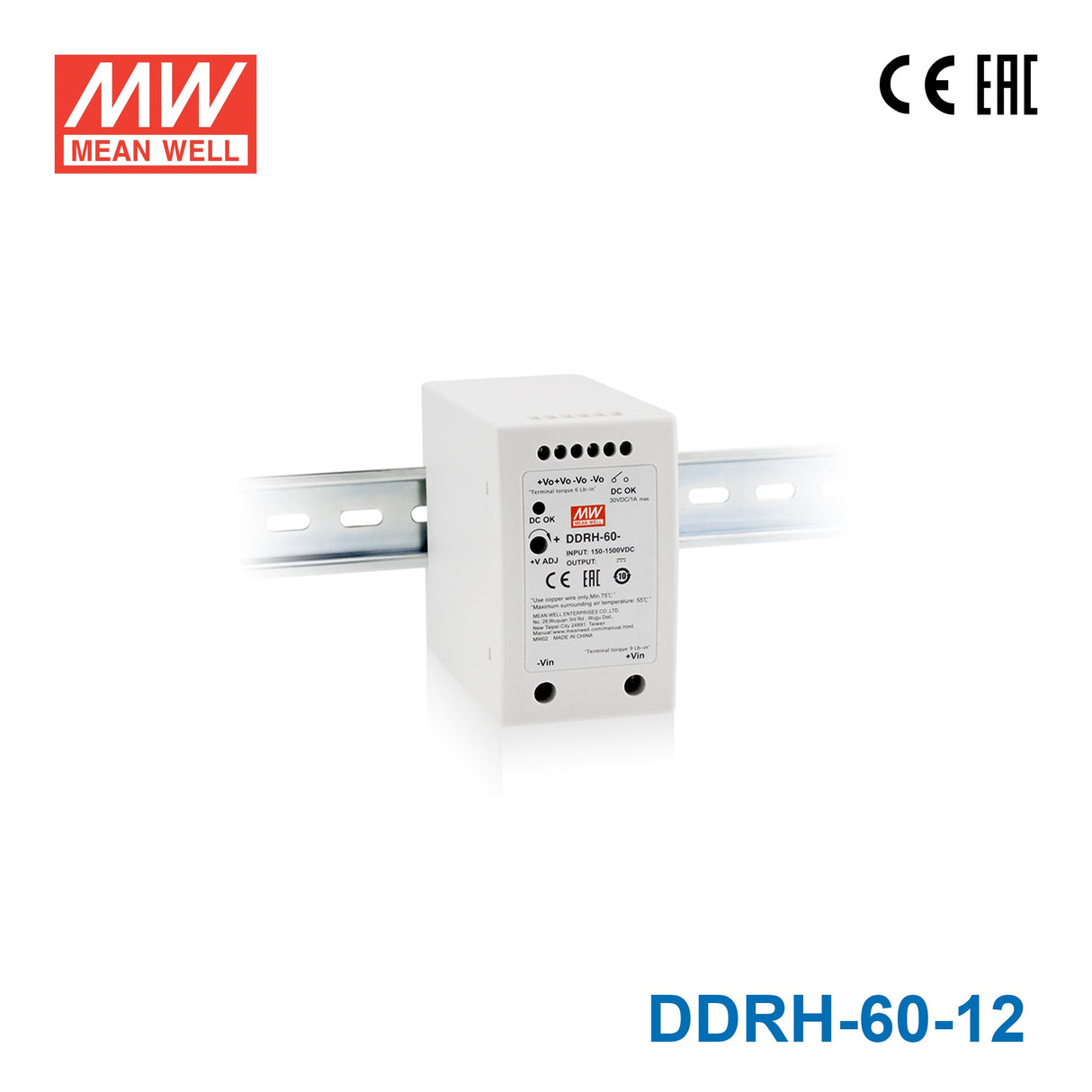

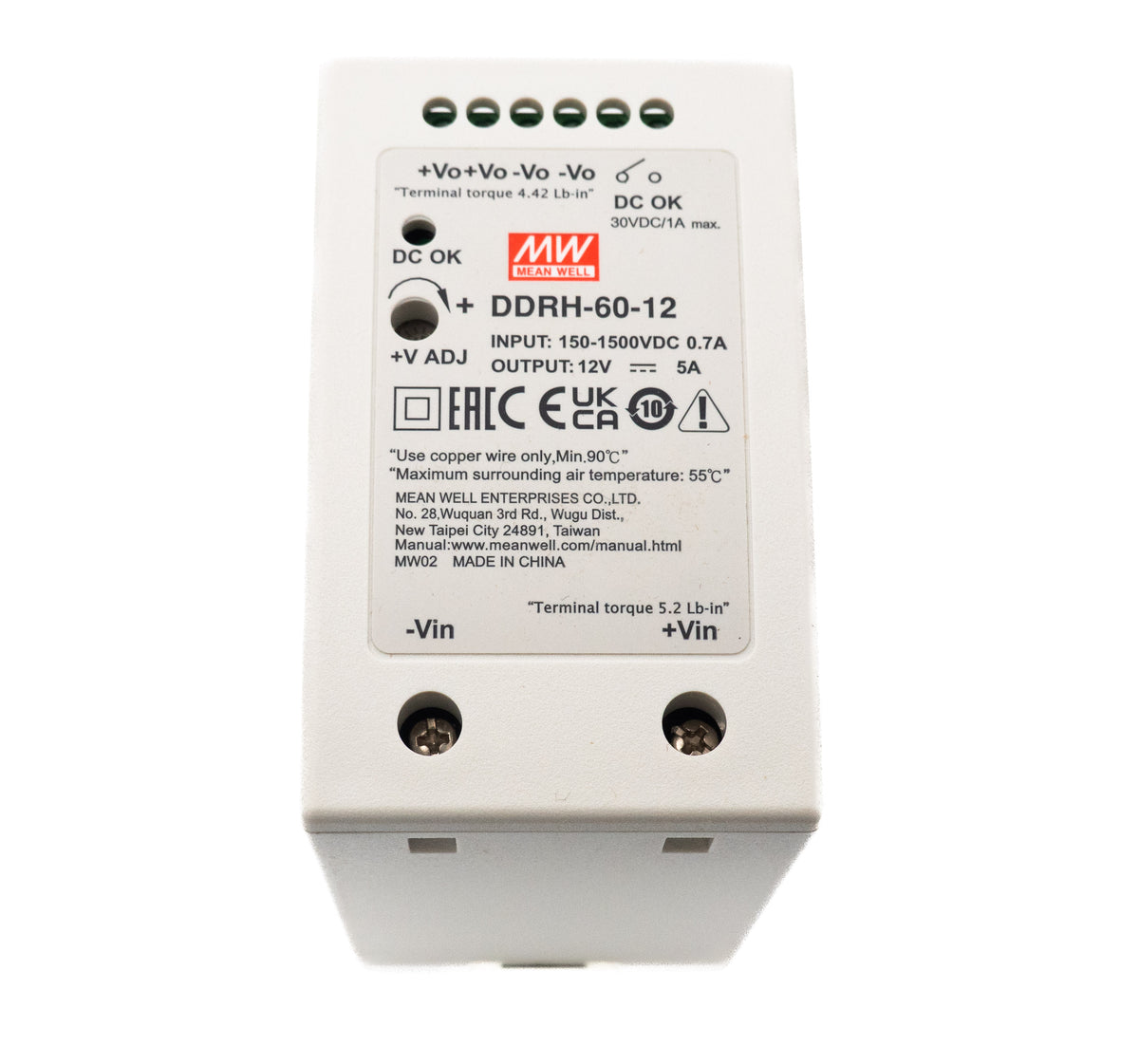

Mean Well DDRH-60-12 Ultra Wide Input DC-DC Converter, 60W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DDRH-60-12 Ultra Wide Input DC-DC Converter, 60W 12V
Description
Description
Features:
- 150~1500Vdc 10:1 ultra-wide input range
- 57mm slim width
- 4KVac I/O high isolation(Reinforced isolation)
- Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- -30 ~ +80℃ ultra-wide operating temperature (>+55℃ derating)
- Over Voltage Category II
- Operating altitude up to 5000 meters
- DC OK relay contact
- DC output voltage adjustable(+20%)
- 3 years warranty
General Specification
AC input voltage range
150 1500Vdc
AC inrush current (max.)
COLD START 120A /1500Vdc | 80A/800Vdc | 30A/150Vdc
Over-voltage protection
6.6 8.4V | 16.5 21V | 30 38V | 55 60V
Protection type: Hiccup up mode, recovers automatically after fault condition is removed
Withstand voltage
I/P-O/P:4KVAC O/P-DC OK:0.5KVAC
Working temperature
-30 ~ +80℃ (Refer to "Derating Curve")
Safety standards
IEC62109-1 approved; Design refer to UL1741(By request)
Dimension (LxWxH)
57x93.5x105mm
Specifications
Specifications
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage150V~1500V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length2.24 in
-
Width3.68 in
-
Height4.13 in
-
Weight1.76 lb
