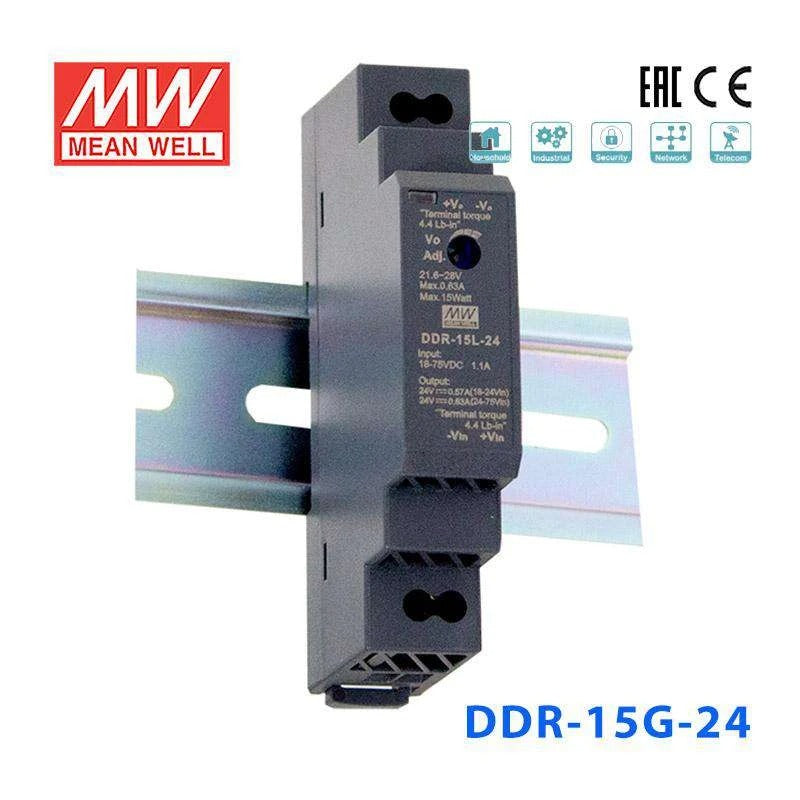

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DDR-15G-24 DC-DC Converter - 15W - 9~36V in 24V out

Name: Mean Well DDR-15G-24 DC-DC Converter - 15W - 9~36V in 24V out
Brand: Mean Well
SKU: DDR-15G-24
Price: 22.36 USD
Availability: InStock

2:1 or 4:1 wide input rangefanless design4KVdc I/O isolationultra slim dimensions

SKU:

DDR-15G-24

$22.36 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The DDR-15G is a compact 15W DIN Rail type DC-DC converter engineered for industrial power distribution. Its ultra slim 17.5mm (1SU) profile fits standard TS-35 DIN rails, while a 4:1 wide input voltage range of 9~36Vdc accommodates diverse DC supply sources across industrial control, security, and communications applications. With no minimum load requirement, free air convection cooling, and reinforced 4KVdc I/O isolation, the DDR-15G delivers dependable, noise-resistant power conversion across a wide -40~+85°C operating range.

Key Features

✓ Ultra slim 17.5mm (1SU) width — DIN rail TS-35/7.5 or 15 compatible
✓ 4:1 wide input voltage range: 9~36Vdc
✓ DC output voltage adjustable ±10%
✓ 4KVdc reinforced I/O isolation
✓ Cooling by free air convection — no minimum load required
✓ Wide operating temperature: -40°C ~ +85°C
✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
✓ Safety approvals: UL 62368-1, IEC 62368-1, AS/NZS 62368.1
✓ 3 years warranty

Brand

Mean Well
Series

DDR Series
Power Rating

15 Watt
Output Voltage

24 Volt
Rated Current

0.63 Ampere
Input Voltage

9V~36V
No of Output

1
Dimming Control

None
Standards Met

CE,EAC,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

2 Year
Length

3.54 in
Width

2.15 in
Height

0.69 in
Weight

0.15 lb

Frequently Asked Questions

Can I use the DDR-15G-24 to generate a 24V control signal rail from a 12V battery system?

Yes. The DDR-15G-24 accepts 9-36V DC and boosts or regulates to 24V at 0.63A (15W). This is useful when you need a 24V rail for small PLC inputs, indicator lights, or relay coils in a system powered by a 12V battery bank. The 4KVdc I/O isolation prevents ground loop issues between the battery and the 24V circuit.

Is the DDR-15G-24 suitable for powering a small 24V industrial sensor loop from a 24V or 28V DC bus?

Yes. Even though the input and output are both near 24V, the converter accepts 9-36V input and provides a clean regulated 24V output at up to 0.63A. This is useful for isolating a sensitive 4-20mA sensor loop from a noisy DC bus, thanks to the 4KVdc I/O isolation barrier.

Can I use the DDR-15G-24 in a compact junction box for building automation?

Yes. At only 90.0 x 54.5 x 17.5 mm, it fits into small DIN rail junction boxes commonly used in building automation for HVAC damper controls, lighting relays, or occupancy sensor loops. The 15W capacity covers a small cluster of low-power 24V devices.

Can the DDR-15G-24 handle temperature extremes in an uninsulated rooftop equipment enclosure?

Yes. The -40°C to +85°C operating temperature range accommodates both winter freezing and direct summer sun heating inside a rooftop enclosure. The fanless design eliminates maintenance concerns from filter clogging or fan bearing failure. Use a sealed NEMA-rated enclosure to protect against rain and dust.

What output voltages are available in the DDR-15G series besides 24V?

The DDR-15G series offers five output voltages, all with the same 9-36V DC input range: 3.3V/3.5A (11.6W), 5V/3A (15W), 12V/1.25A (15W), 15V/1A (15W), and 24V/0.63A (15W). They share the same ultra-slim 17.5mm DIN rail package, fanless design, and 4KVdc I/O isolation.
