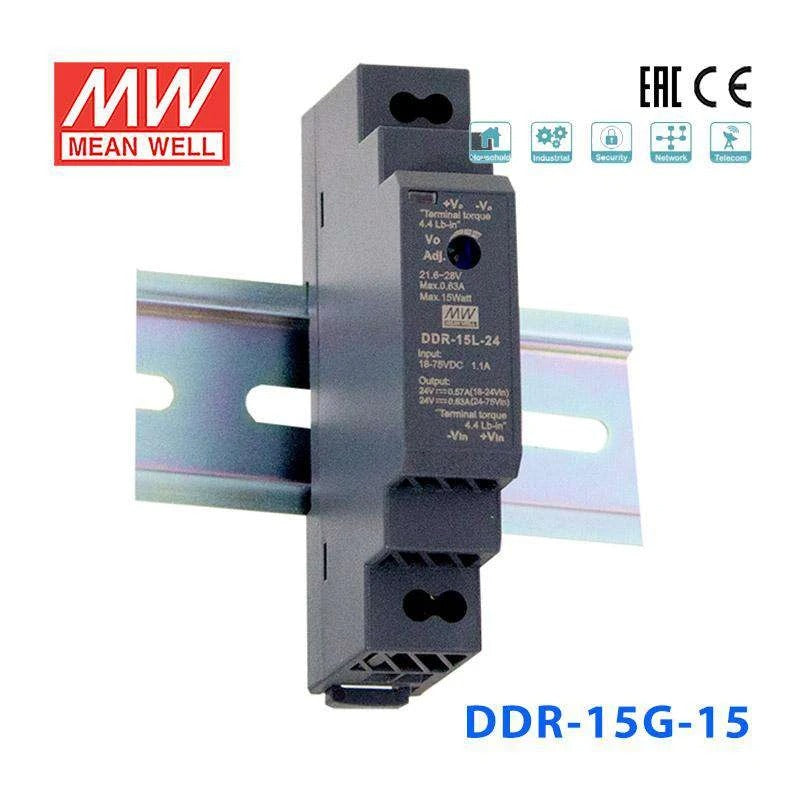

Mean Well DDR-15G-15 DC-DC Converter - 15W

Name: Mean Well DDR-15G-15 DC-DC Converter - 15W - 9~36V in 15V out 1A
Brand: Mean Well
SKU: DDR-15G-15
Price: 19.67 USD
Availability: InStock

Overview

DDR-15G-15 is the 15V output model of this series: rated current 1A, rated power 15W, typical efficiency 85%.

DDR-15 series is a 15W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (17.5mm), 4: 1 ultra wide input voltage, -40~+85℃ wide operating temperature, 4KVdc I/O isolation, adjustable output voltage ( 10%) and full protective functions...etc. This series has two input options: 9~36V /18~75V and various output options: 3.3V / 5V / 12V / 15V / 24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.

Features

Width only 17.5mm (1SU)
4:1 ultra wide input range
-40~+85℃ wide working temperature
No minimum load required
DC output adjustable (±10%)
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
3 years warranty

Specifications

DDR-15G-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 1A
CURRENT RANGE: 0 ~ 1A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 75mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 120ms, 85ms at full load
HOLD UP TIME (Typ.): G-type: 8ms@24Vdc input
EXTERNAL CAPACITANCE LOAD (Max.): 1200μF

INPUT

VOLTAGE RANGE^Note.4: 9 ~ 36Vdc
EFFICIENCY (Typ.): 85%
DC CURRENT (Typ.): 0.8A /24Vdc
INRUSH CURRENT (Typ.): 15A /24Vdc

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover
REVERSE POLARITY: By internal MOSFET, no damage, recovers automatically after fault condition removed
UNDER VOLTAGE LOCKOUT: Power ON≥9V , OFF≤8.5V

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 5 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 5 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 5000 meters

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL 62368-1, IEC 62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVdc
ISOLATION RESISTANCE: I/P-O/P>100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line; criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line; criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 3446.2K hrs min. Telcordia SR-332 (Bellcore) ; 907.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 17.5*90*54.5mm (W*H*D)
PACKING: 68g; 160pcs/12Kg/1.14CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 24VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

DDR-15G-15 Block Diagram — Block Diagram

DDR-15G-15 Derating Curve — Derating Curve

DDR-15G-15 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates3

UL Certificate(DDR-15)(EN) PDF Download

CE Certificate(DDR-15)(EN) PDF Download

EMC Certificate(DDR-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DDR-15G-15 to supply 15V to legacy measurement instruments from a 24V DC bus?

Yes. The DDR-15G-15 accepts 9-36V DC input and outputs a regulated 15V at 1A (15W). Many older analog instruments and data acquisition modules require a dedicated 15V rail, and this converter provides it cleanly from a standard 24V control bus with 4KVdc I/O isolation.

Is the DDR-15G-15 a good choice for powering 15V op-amp circuits in a DIN rail test fixture?

Yes. The regulated 15V at 1A output, with 75mVp-p maximum ripple and noise, is well suited for analog signal conditioning circuits and op-amp stages that require a stable positive supply rail. The 4KVdc isolation separates the input bus from the analog circuits.

Can the DDR-15G-15 run from a 12V vehicle battery to provide 15V for dashboard instrumentation?

Yes. A 12V vehicle battery typically ranges from about 10V to 14.4V, which falls within the 9-36V input range, though derating may be needed at low input voltage. At 15W it can power small instrument clusters, custom displays, or interface modules. The compact 17.5mm-wide housing fits into tight vehicle-mounted enclosures.

Will the DDR-15G-15 operate in a freezing outdoor equipment cabinet?

Yes. Its -40°C to +85°C operating range (with derating per the derating curve) covers extreme cold conditions. Humidity is rated 5-95% RH non-condensing, so install it inside a sealed enclosure to keep moisture, condensation and particulates away from the converter.

How does the DDR-15G-15 compare to other DDR-15G output voltage options?

The DDR-15G series shares the same 9-36V input range and 17.5 x 90 x 54.5 mm package. Available outputs are 3.3V/3.5A (11.6W), 5V/3A (15W), 12V/1.25A (15W), 15V/1A (15W), and 24V/0.63A (15W). All models feature 4KVdc I/O isolation and a -40°C to +85°C working temperature range with derating.
