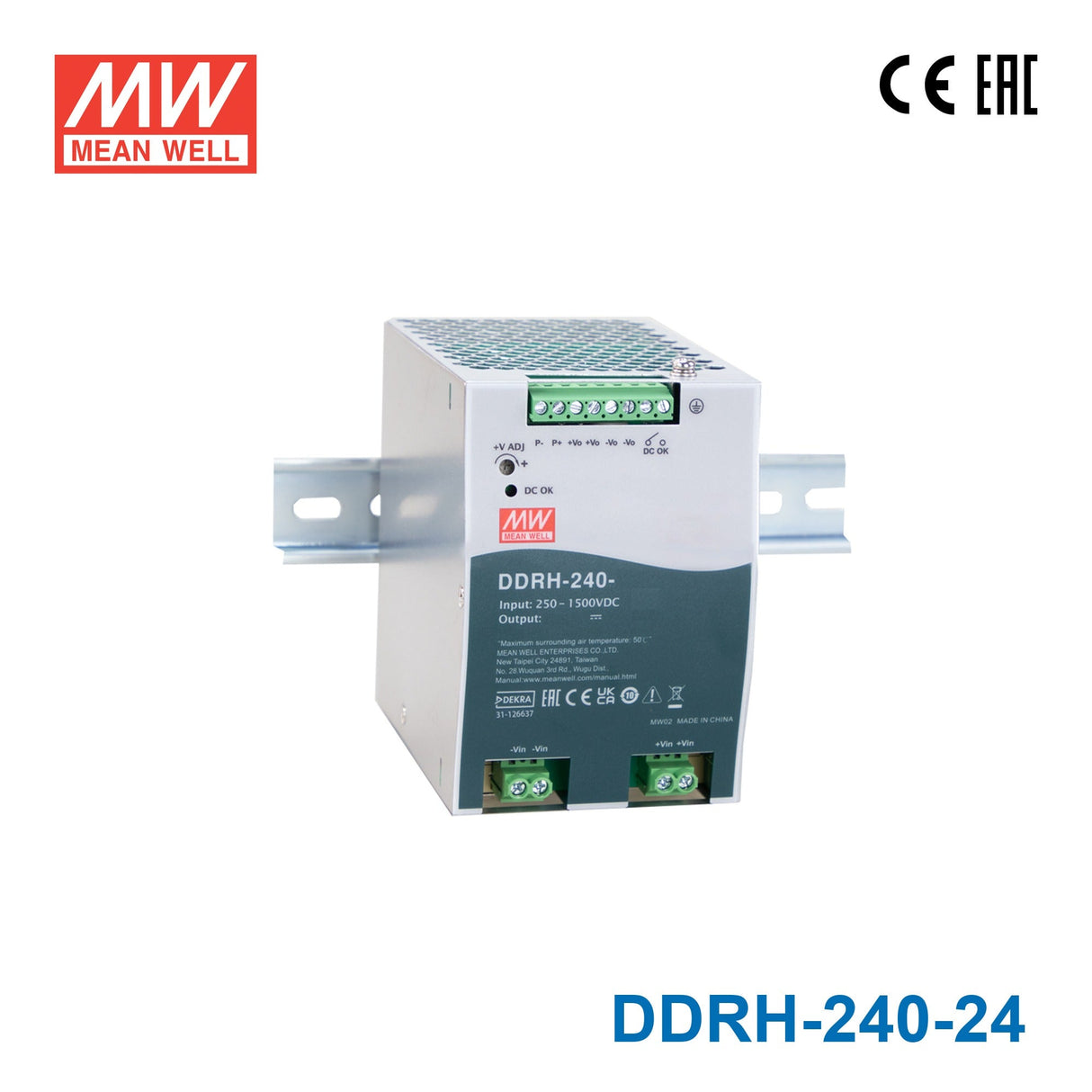

Mean Well DDRH-240-24 Ultra Wide Input DC-DC Converter, 240W 24V

The DDRH-240 is a 240W high-reliability ultra-wide input DIN Rail DC-DC converter for photovoltaic, energy storage, and high-voltage industrial applications. Its 250~1500Vdc input range handles high-voltage DC bus and battery string sources, with 4KVac reinforced I/O isolation for reliable, noise-free operation. Up to four units can be paralleled for current sharing up to 960W, and a DC OK relay output provides supply status monitoring. The DDRH-240 operates fanless across -40~+80℃.

Key Features

• ✓ Ultra-wide 250~1500Vdc input range — high-voltage DC bus and battery string compatible
• ✓ DC output voltage adjustable ±10%
• ✓ 4KVac reinforced I/O isolation
• ✓ Cooling by free air convection — fanless design, no minimum load required
• ✓ Wide operating temperature: -40°C ~ +80°C
• ✓ DC OK relay contact output — signals supply status
• ✓ Current sharing up to 960W (3+1 parallel units)
• ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
• ✓ DIN rail TS-35 compatible
• ✓ Safety approvals: IEC62109-1, BS EN/EN62109-1, EAC TP TC 004
• ✓ 3 years warranty

• Brand
  Mean Well
• Series
  DDRH Series
• Power Rating
  240 Watt
• Output Voltage
  24 Volt
• Rated Current
  10 Ampere
• Input Voltage
  250V~1500V
• No of Output
  1
• Dimming Control
  None
• Standards Met
  CE,EAC
• Operation Mode
  Constant Voltage
• Operating Temperature
  -40°C~80°C
• Warranty
  3 Year
• Length
  3.37 in
• Width
  4.93 in
• Height
  5.09 in
• Weight
  2.12 lb
