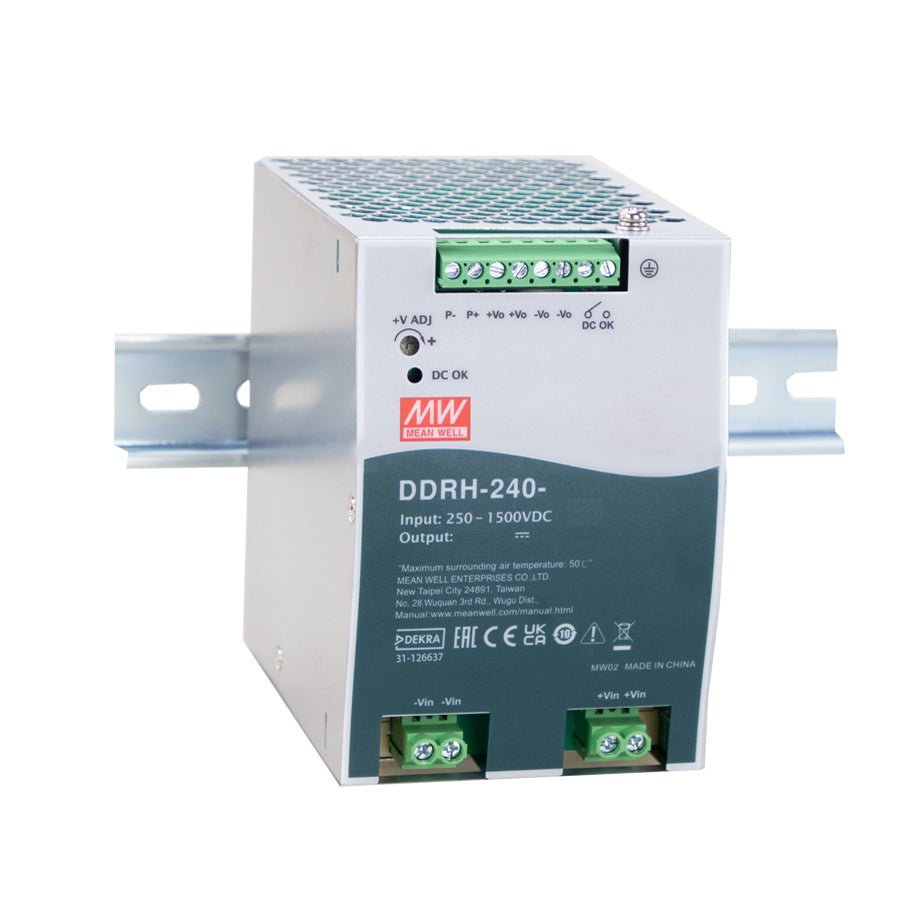

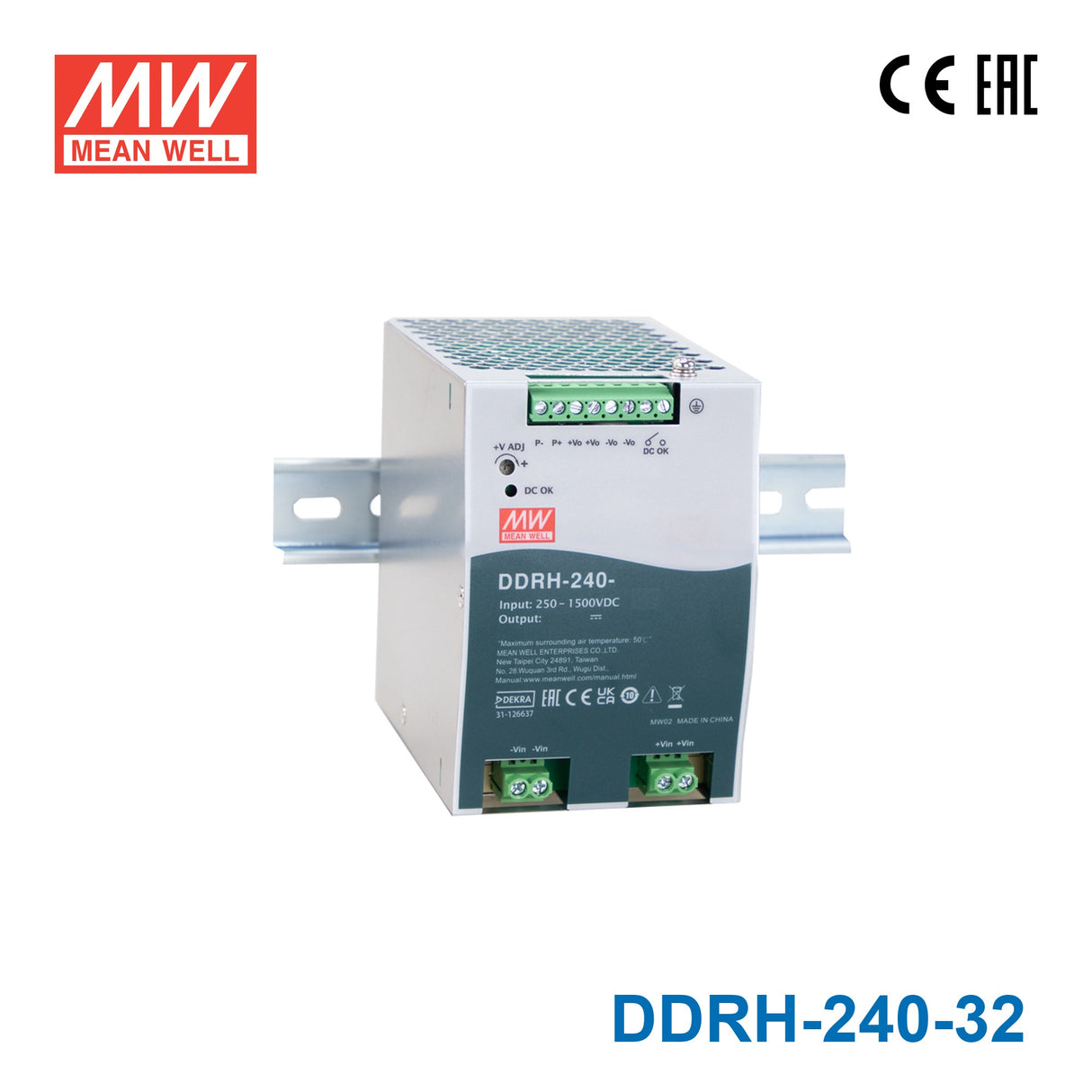

Mean Well DDRH-240-32 Ultra Wide Input DC-DC Converter, 240W 32V

Features:

• 250~1500Vdc 6:1 ultra-wide input range
• Withstand 1700Vdc surge input for 10 seconds
• 85.5mm slim width
• 4KVac I/O high isolation(Reinforced isolation)
• Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
• Fanless design, Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• -40 ~ +80℃ ultra-wide operating temperature (>+50℃ derating)
• Current sharing up to 960W(3+1)
• Over Voltage Category II
• Operating altitude up to 5000 meters
• DC OK relay contact
• DC output voltage adjustable(1215V, 2429V, 3036V, 4858V)
• 3 years warranty

General Specification

AC input voltage range

250 ~ 1500Vdc

AC inrush current (max.)

COLD START 500A /1500Vdc | 300A/800Vdc | 120A/300Vdc

Over-voltage protection

16.5 21V | 32 42V | 40 48V | 62 70V

Protection type : Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:2KVAC O/P-DC OK:0.5KVAC

Working temperature

-40 ~ +80℃ (Refer to "Derating Curve")

Safety standards

IEC62109-1 BS EN/EN62109-1 EAC TP TC 004 approved; Design refer to UL1741(By request)

Dimension (LxWxH)

85.5x125.2x129.2mm
