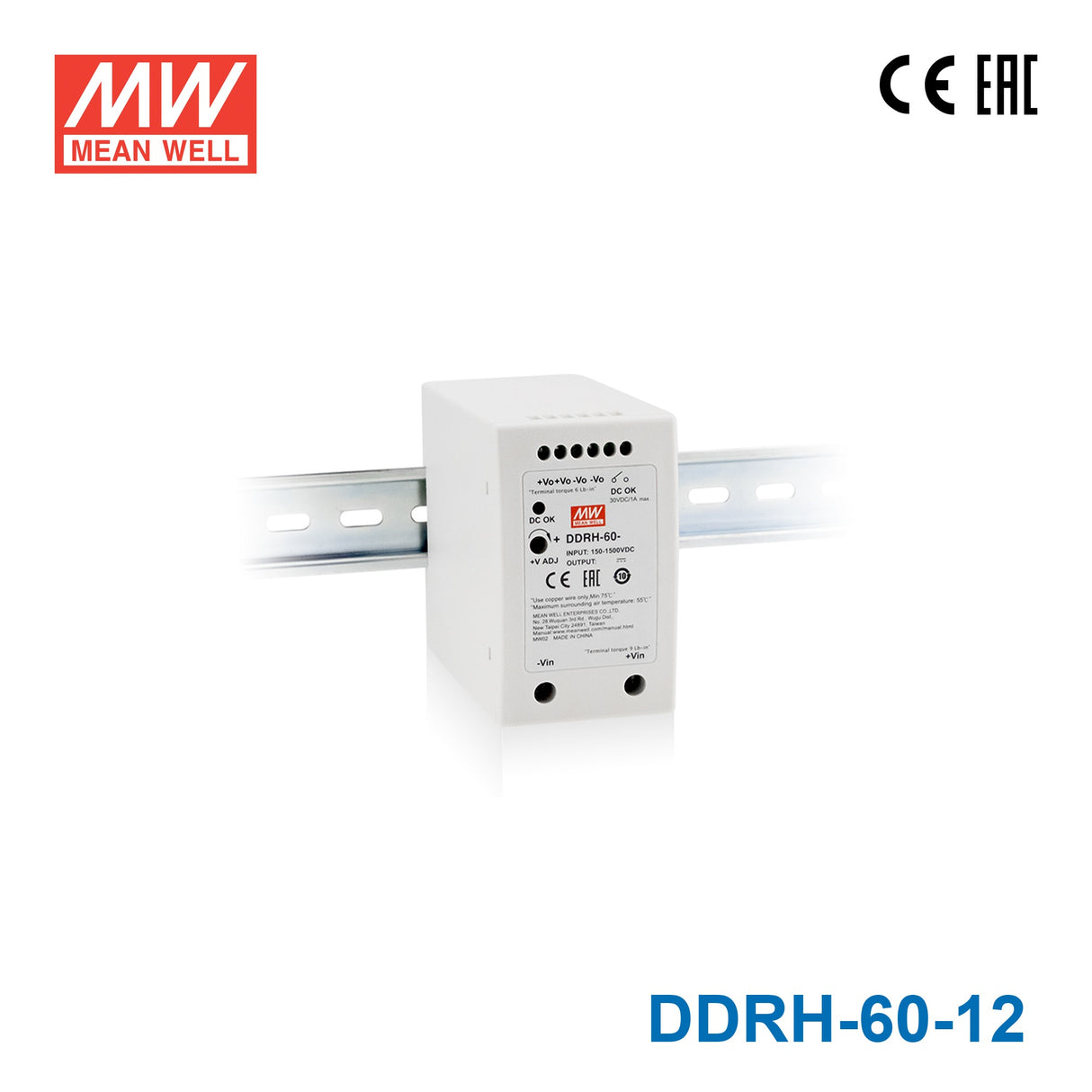

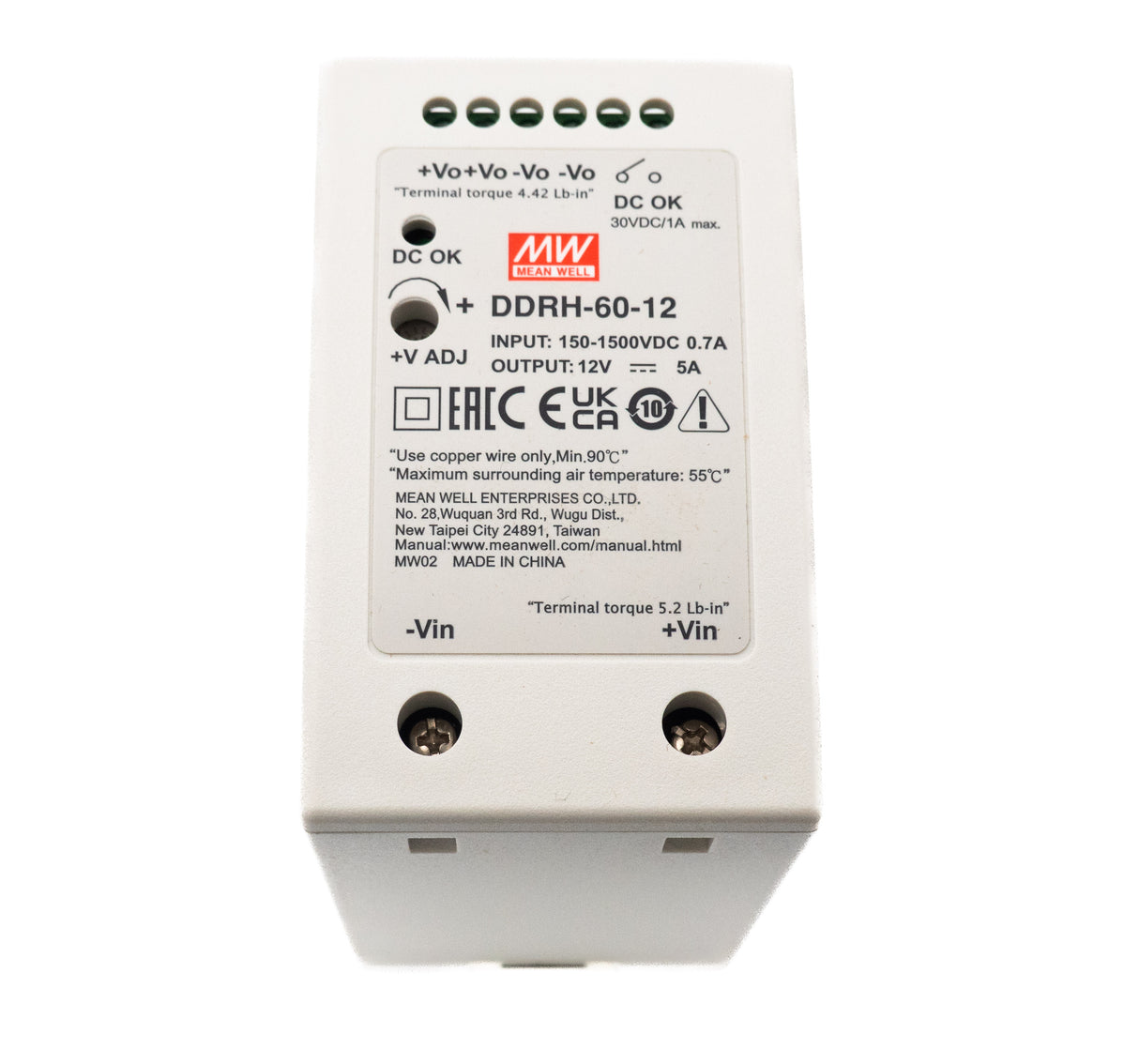

Mean Well DDRH-60-12 Ultra Wide Input DC-DC Converter, 60W 12V

150~1500VDC 10:1 ultra-wide input range57mm slim widthDC output voltage adjustable(+20%)

SKU:

DDRH-60-12

$70.97 USD ~~$128.57~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The DDRH-60 is a 60W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy, and demanding high-voltage industrial applications. Its exceptional 150~1500Vdc input range covers solar, battery string, and DC bus supply sources from diverse voltage levels. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and a DC OK relay output, the DDRH-60 delivers stable, monitored power across a -30~+80℃ operating range.

Key Features

✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
✓ DC output voltage adjustable ±10%
✓ 4KVac reinforced I/O isolation
✓ Cooling by free air convection — fanless design, no minimum load required
✓ Wide operating temperature: -30°C ~ +80°C
✓ DC OK relay contact output — signals supply status
✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout

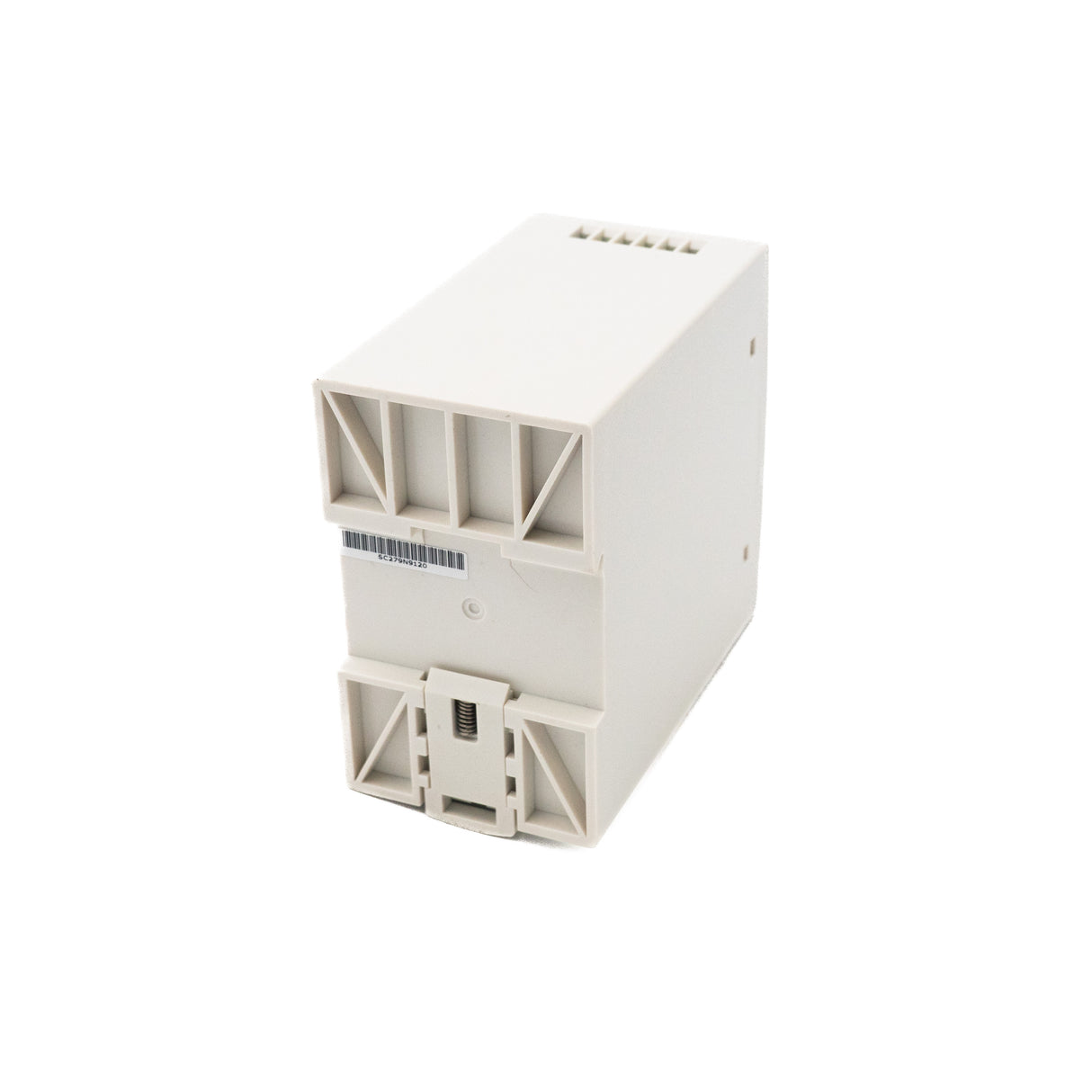

✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
✓ 3 years warranty

Brand

Mean Well
Series

DDRH Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

150V~1500V
No of Output

1
Dimming Control

None
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-30°C~80°C
Warranty

3 Year
Length

2.24 in
Width

3.68 in
Height

4.13 in
Weight

1.76 lb

Frequently Asked Questions

Can the DDRH-60-12 power 12V DC loads in a solar or wind energy system with a high-voltage DC bus?

Yes. The 150–1500VDC ultra-wide input range allows the DDRH-60-12 to step down from high-voltage PV string or wind turbine DC outputs to a regulated 12V, 5A (60W) supply for balance-of-system loads.

Is the DDRH-60-12 suitable for powering 12V industrial cameras or machine vision systems in DIN rail panels?

At 60W and 5A on a 12V rail, the DDRH-60-12 can supply multiple industrial cameras or a single high-power machine vision system mounted alongside PLCs in a standard DIN rail cabinet.

Can the DDRH-60-12 be used in automotive or rolling stock environments with wide input voltage variation?

The 10:1 input range of 150–1500VDC covers common traction and vehicle electrical architectures. Operating temperature is –30°C to +80°C, which suits many mobile and rolling stock applications.

Does the adjustable output voltage feature of the DDRH-60-12 allow it to compensate for cable voltage drop to remote loads?

Yes. The output voltage is adjustable up to +20% above the nominal 12V, allowing the output to be trimmed to approximately 14.4V to compensate for cable losses when powering loads at a distance from the supply.

Is the DDRH-60-12 appropriate for installation in outdoor telecom enclosures or roadside cabinets?

The –30°C to +80°C operating range and fanless 57mm slim-width design allow installation in outdoor roadside or telecom cabinets. No IP rating is specified for the unit itself, so the enclosure must provide the required environmental protection.

How does the DDRH-60-12 compare to the DDRH-60-24 and DDRH-60-48 siblings?

All three DDRH-60 models share the same 150–1500VDC input, 57mm slim width, and adjustable output (+20%). The DDRH-60-12 delivers 12V at 5A (60W), the DDRH-60-24 delivers 24V at 2.5A (60W), and the DDRH-60-48 delivers 48V at 1.25A (60W).
