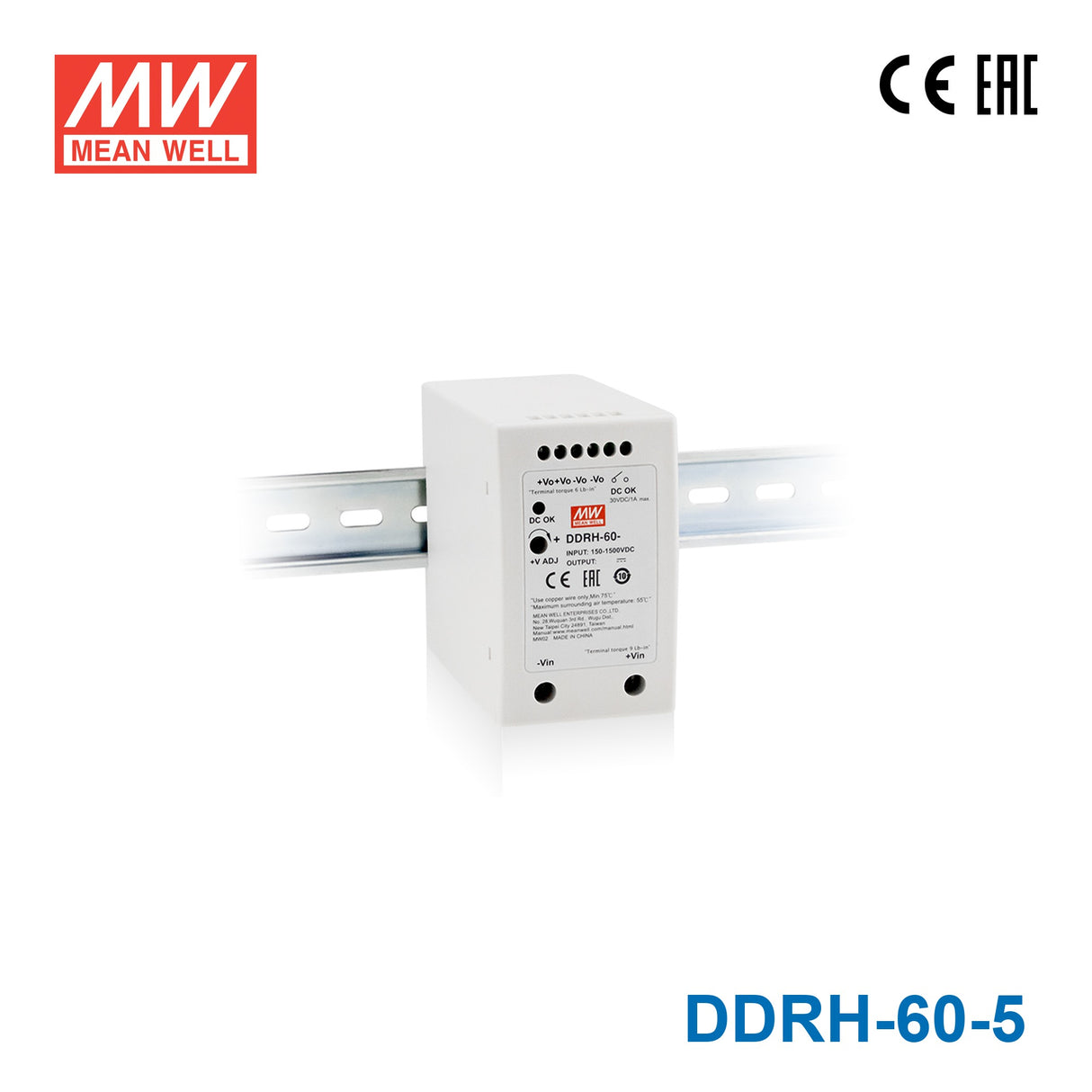

Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V

The DDRH-60 is a 60W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy, and demanding high-voltage industrial applications. Its exceptional 150~1500Vdc input range covers solar, battery string, and DC bus supply sources from diverse voltage levels. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and a DC OK relay output, the DDRH-60 delivers stable, monitored power across a -30~+80℃ operating range.

Key Features

• ✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
• ✓ DC output voltage adjustable ±10%
• ✓ 4KVac reinforced I/O isolation
• ✓ Cooling by free air convection — fanless design, no minimum load required
• ✓ Wide operating temperature: -30°C ~ +80°C
• ✓ DC OK relay contact output — signals supply status
• ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
• ✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
• ✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
• ✓ 3 years warranty

• Brand
  Mean Well
• Series
  DDRH Series
• Power Rating
  50 Watt
• Output Voltage
  5 Volt
• Rated Current
  10 Ampere
• Input Voltage
  150V~1500V
• No of Output
  1
• Dimming Control
  None
• Standards Met
  CE,EAC
• Operation Mode
  Constant Voltage
• Operating Temperature
  -30°C~80°C
• Warranty
  3 Year
• Length
  2.24 in
• Width
  3.68 in
• Height
  4.13 in
• Weight
  1.76 lb
