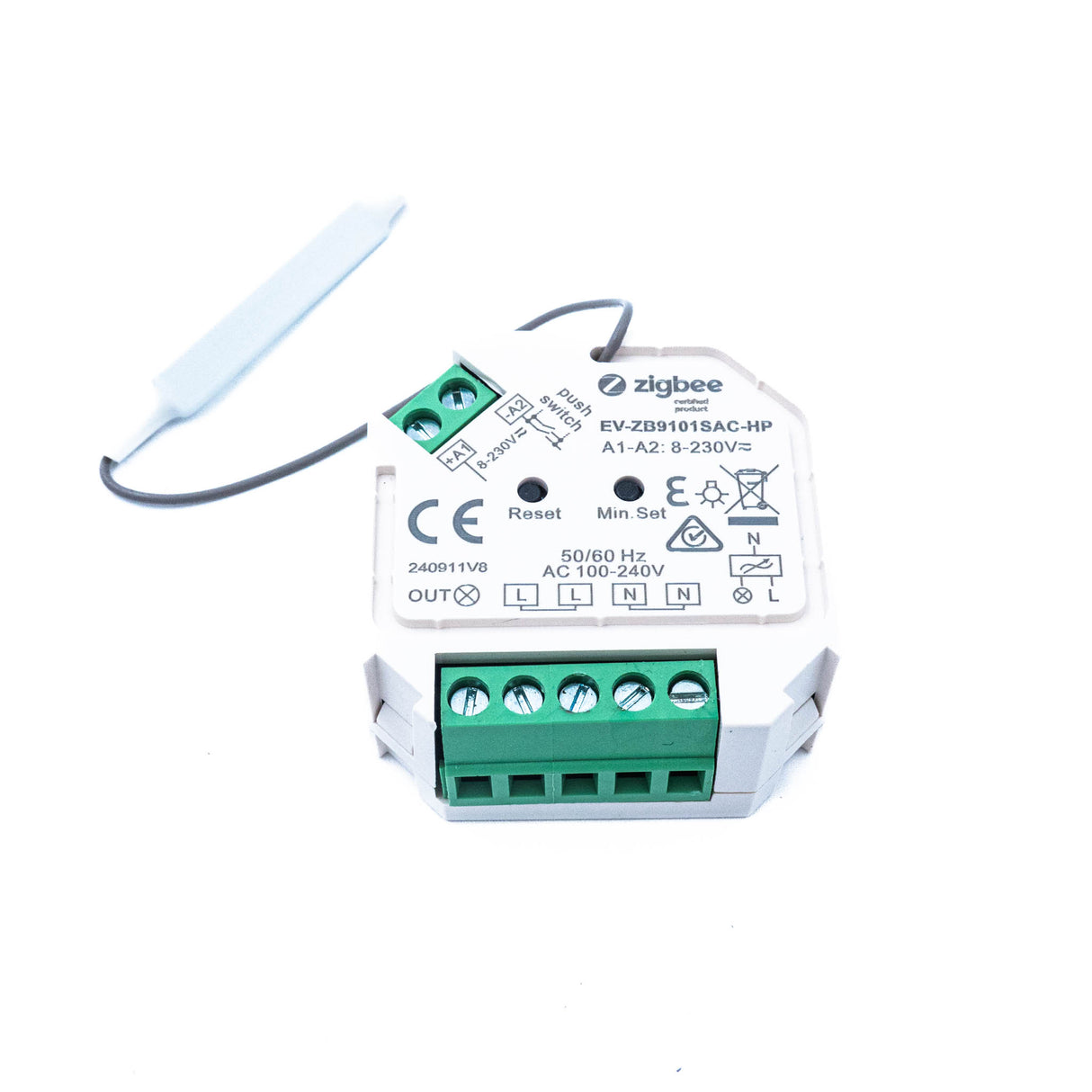

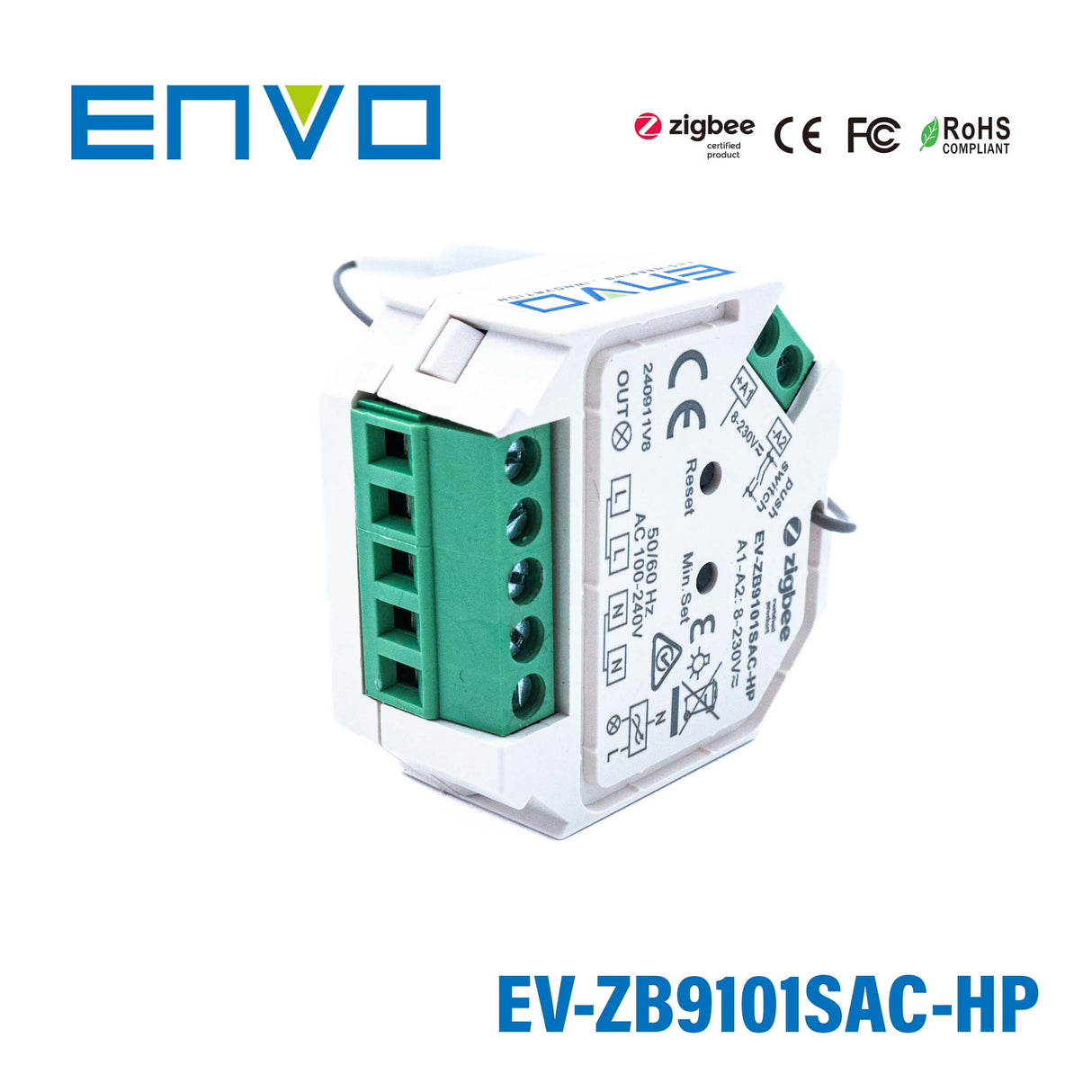

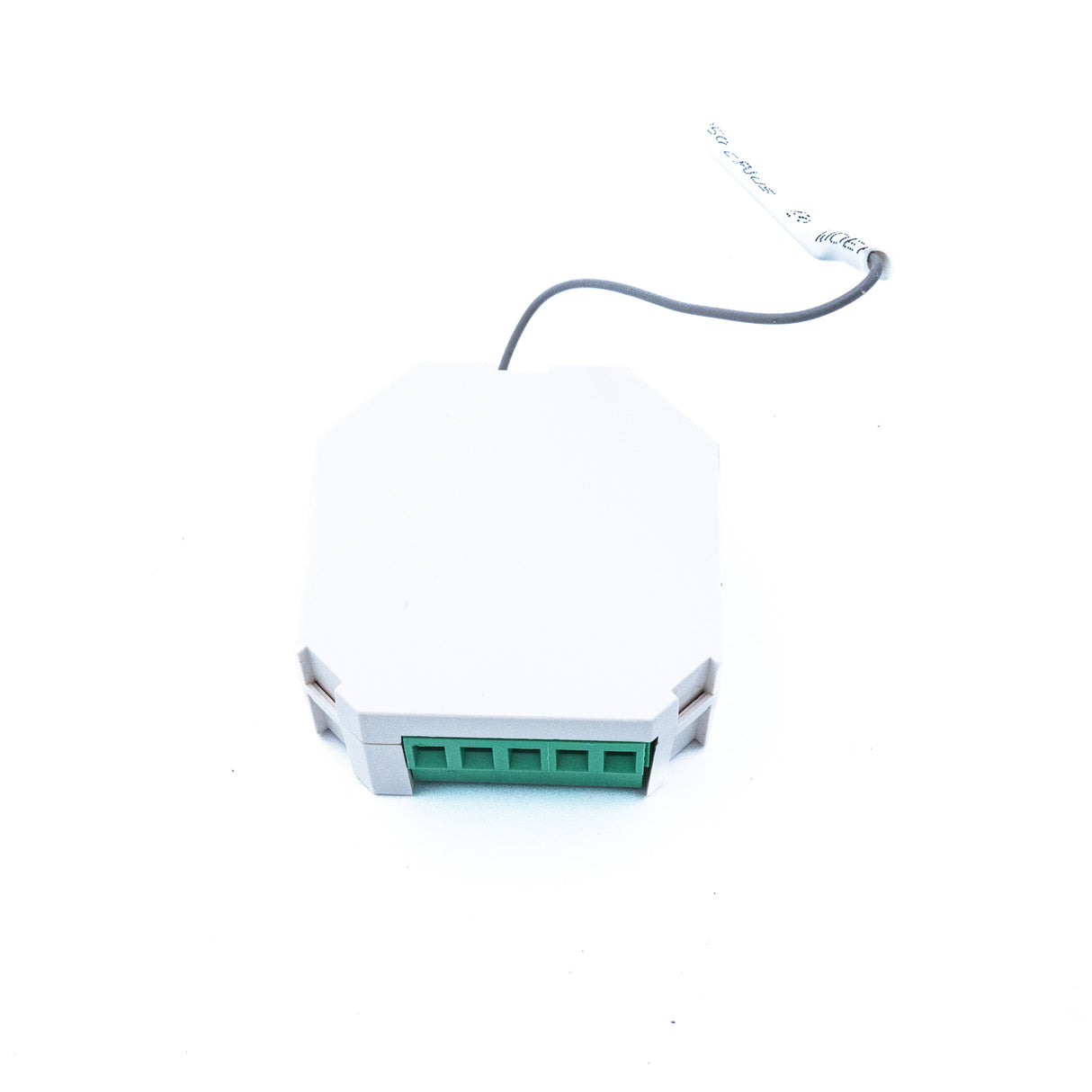

ENVO ZigBee AC Phase Dimmer
Features:
- ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
- 100-240VAC Wide Input and Output Voltage
- Supports resistive loads and capacitive loads
- 1 Channel Output, Up to 400W
- Input and Output with Screw Terminals, Safe and Reliable
- Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
- Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Can be controlled by universal 8-230V input single wire push switch
- Mini Size, Easy to be Installed into a standard 86*86mm wall box
- Radio Frequency : 2.4GHz
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
100-240VAC
Output Current
100-240VAC
Output Current
1.8A max
Output Channel 1
100-240VAC
Input Type
Constant voltage
Dimension (LxWxH)
45.5x45x20.3mm
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating400 Watt
-
Output Voltage220 Volt
-
Rated Current1.5 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length1.79 in
-
Width1.77 in
-
Height0.8 in
::specification::
Frequently Asked Questions
What type of lighting is the ENVO ZigBee AC Phase Dimmer designed to control?
This model is designed to control triac dimmable LED lights or LED drivers using AC phase cut dimming. It supports both resistive and capacitive loads, making it suitable for a range of compatible dimmable AC lighting applications. It is a 1-channel dimmer intended for on/off control and light intensity adjustment.
Does this dimmer work with ZigBee 3.0 systems?
Yes. The EV-ZB9101SAC-HP uses ZigBee 3.0 and is compatible with universal ZigBee gateway products. It also supports Touchlink commissioning, find-and-bind mode, and ZigBee Green Power remote binding.
Can the ENVO ZigBee AC Phase Dimmer be used without a ZigBee coordinator?
Yes. This dimmer can directly pair with a compatible ZigBee remote through Touchlink without requiring a coordinator. It also supports self-forming ZigBee networking, which adds flexibility for standalone control scenarios.
What are the electrical ratings of this dimmer?
The ENVO ZigBee AC Phase Dimmer operates on 100-240VAC input and output voltage. It provides 1 channel with up to 400W capacity, and the specification lists output current up to 1.8A max. These ratings make it suitable for AC phase dimming within its stated load limits.
What makes this model different from basic non-networked AC dimmers?
This model adds ZigBee 3.0 wireless control instead of functioning only as a local dimmer. It supports gateway-based control, direct remote pairing, Touchlink, and ZigBee Green Power remotes. That makes it a stronger fit for smart lighting projects that need broader control options.
Where can this dimmer typically be used?
Its compact 45.5 x 45 x 20.3 mm housing is intended for installations where space is limited, including standard 86 x 86 mm wall box applications. With IP20 protection, it is intended for indoor use in dry environments. It is not designed for exposure to moisture.
What operating conditions is this dimmer rated for?
The specified operating temperature range is -20°C to 50°C. The unit also carries an IP20 rating, so it should be used in indoor locations where it will remain dry. These limits are important for maintaining normal performance and product longevity.
