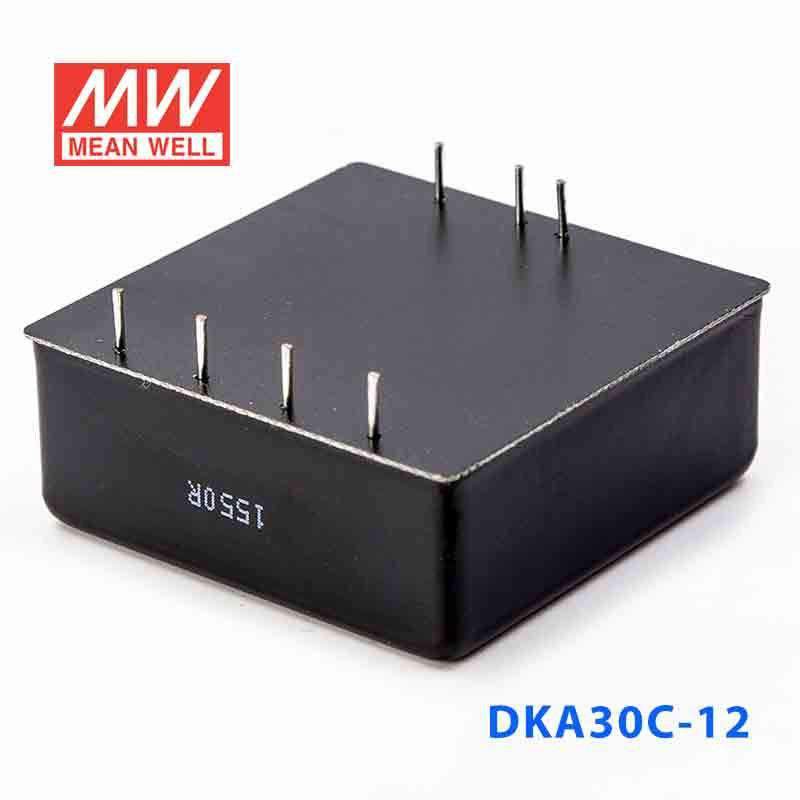

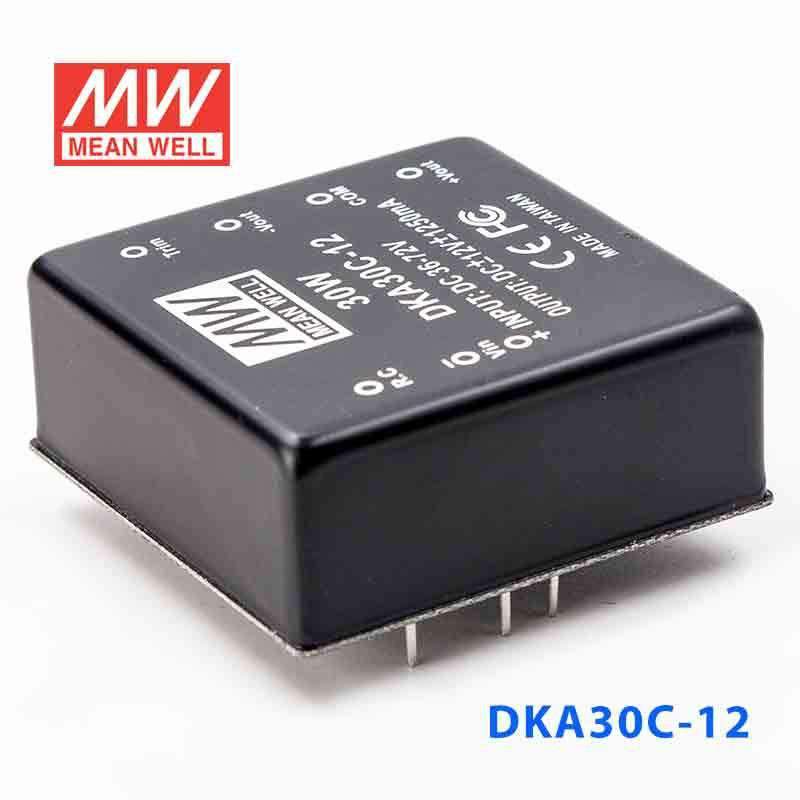

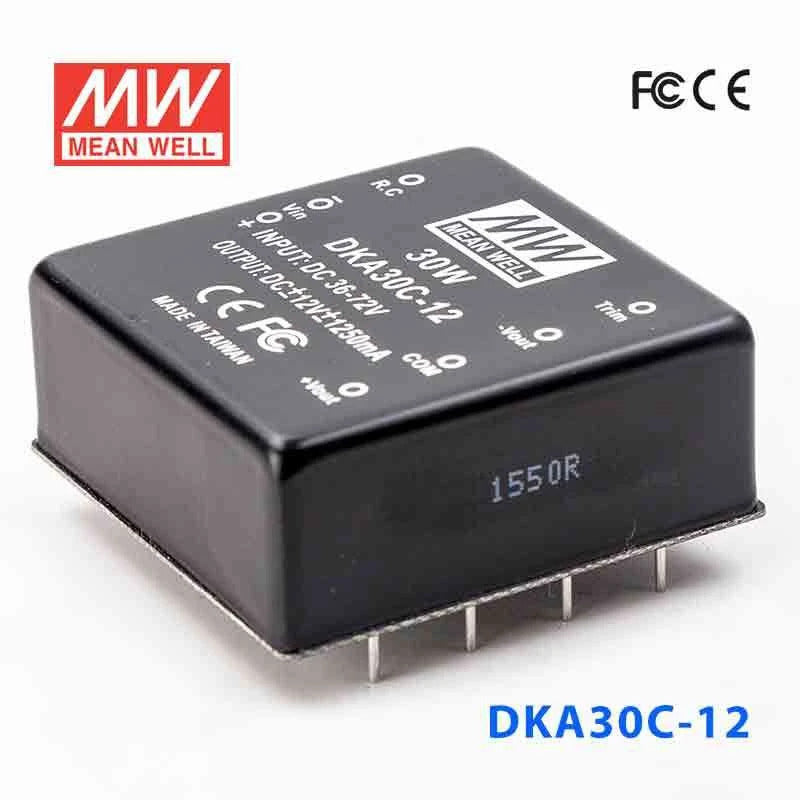

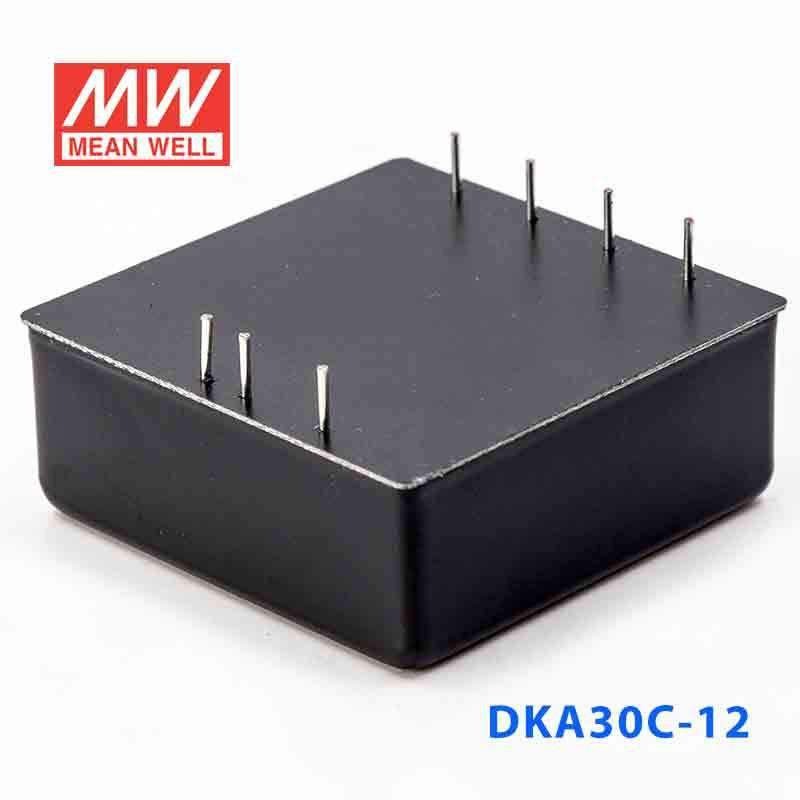

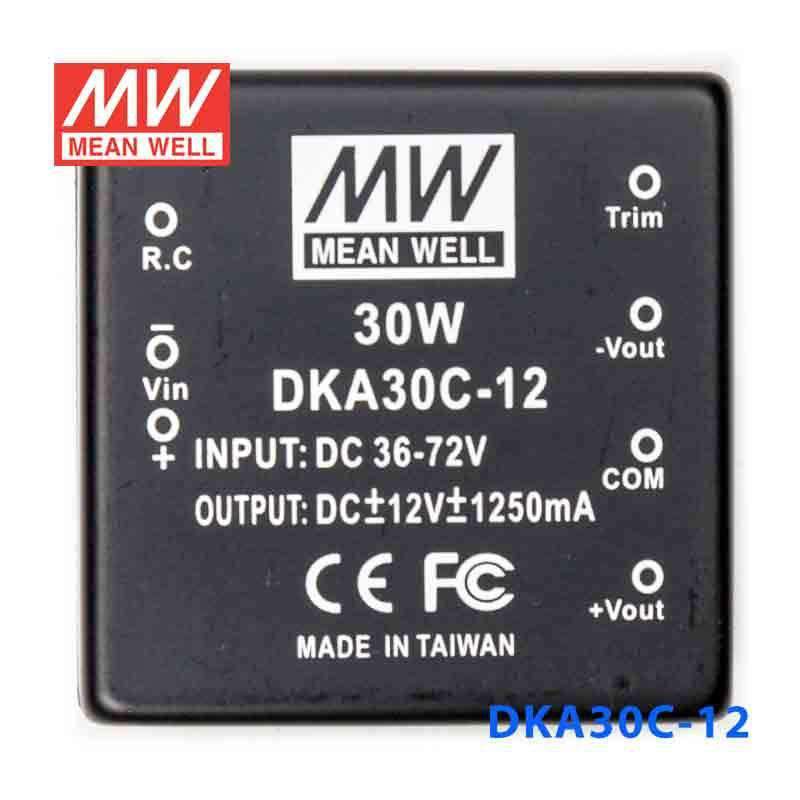

Mean Well DKA30C-12 DC-DC Converter - 30W - 36~72V in ±12V out
The DKA30C is a 30W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY -40 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 ) 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKA Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.83 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the DKA30C-12 for a 12V industrial controller or HMI that needs a regulated output?
It is a constant-voltage converter rated for 12V output, 1.25A, and 30W. The listed input range is 36-72VAC, so it fits applications that need 12V regulation within that input window.
Is the DKA30C-12 suitable for 12V embedded control boards inside factory equipment?
For embedded control loads that require a steady 12V rail, this model provides constant-voltage output at up to 1.25A and 30W. Its compact 50.8 × 50.8 × 21.0 mm size can also help in space-limited equipment housings.
Can this converter power 12V automation sensors or interface modules in a control cabinet?
It can be used where the connected modules need 12V constant-voltage power and the total load stays within 1.25A and 30W. The specified operating range of -40°C to +85°C also suits demanding industrial temperature conditions.
Is the DKA30C-12 appropriate for outdoor or washdown environments?
The published specs list an operating temperature range of -40°C to +85°C, but they do not include an IP rating. That means the temperature capability is stated, while dust and water protection for outdoor or washdown exposure is not stated in the product data.
How does the DKA30C-12 compare with other DKA30C series options?
Within the listed siblings, the DKA30C-05 is rated at 25W with 5V output and 2.5A, while the DKA30C-15 is rated at 30W with 15V output and 1A. The DKA30C-12 sits between them at 30W, 12V, and 1.25A.
