Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

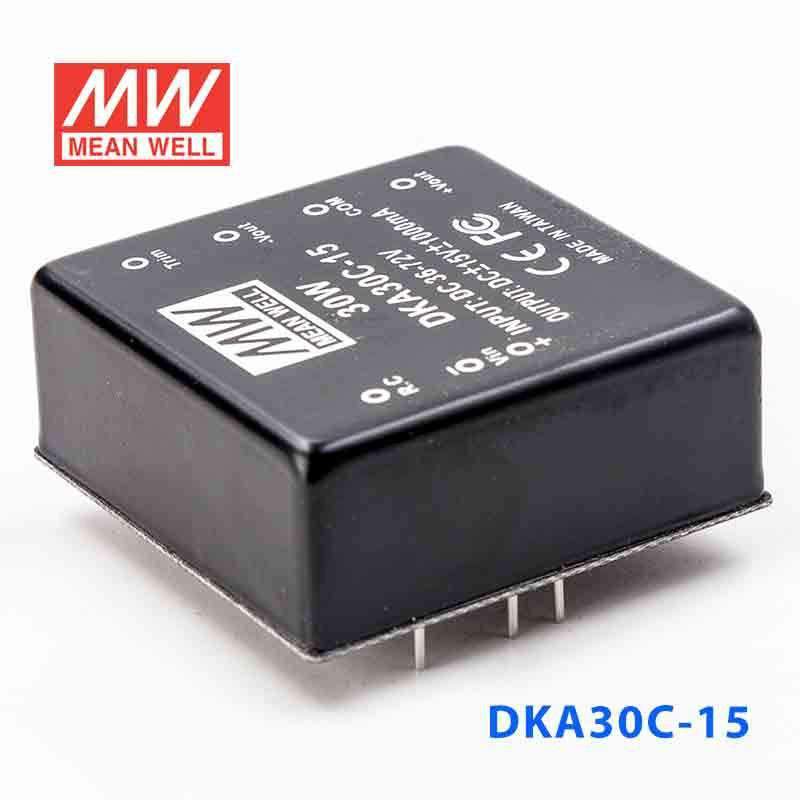

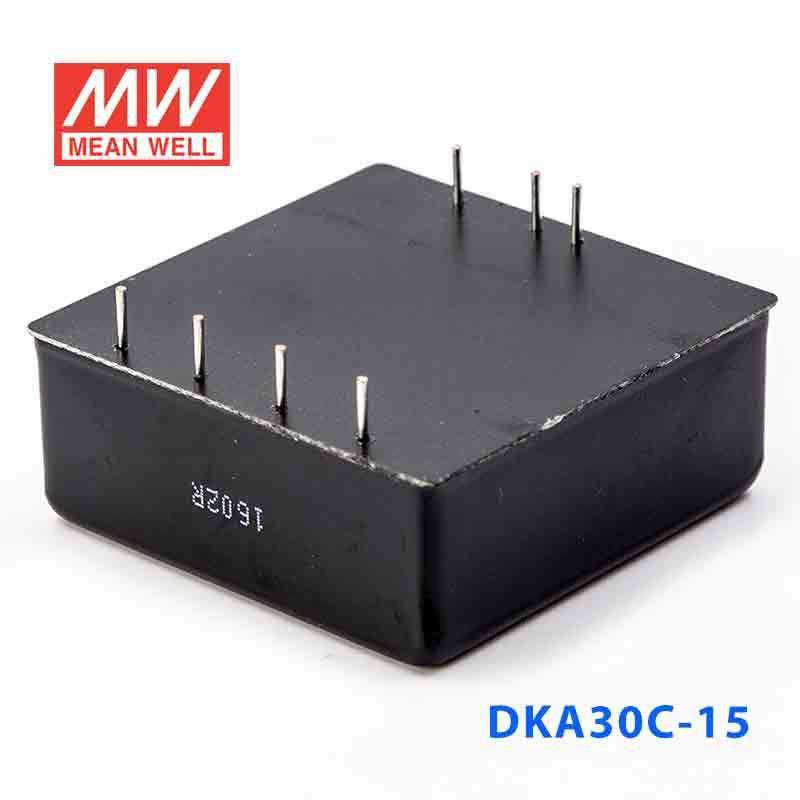

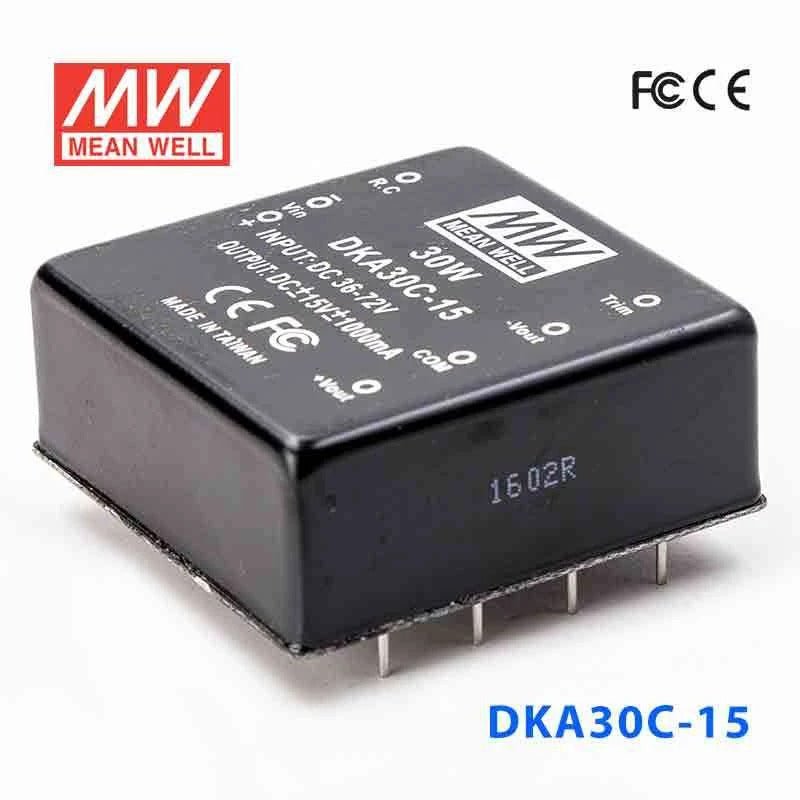

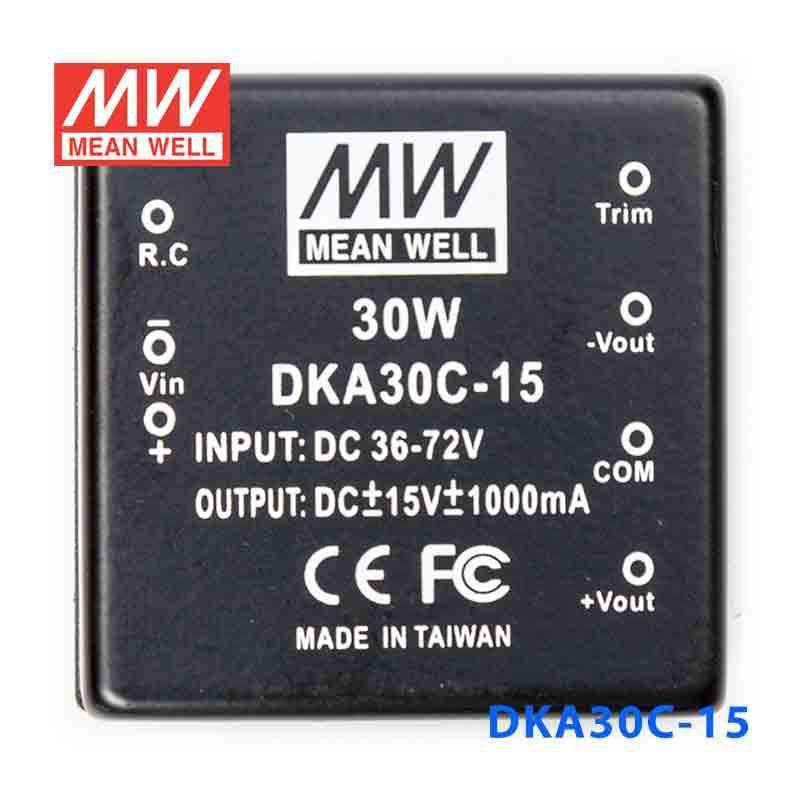

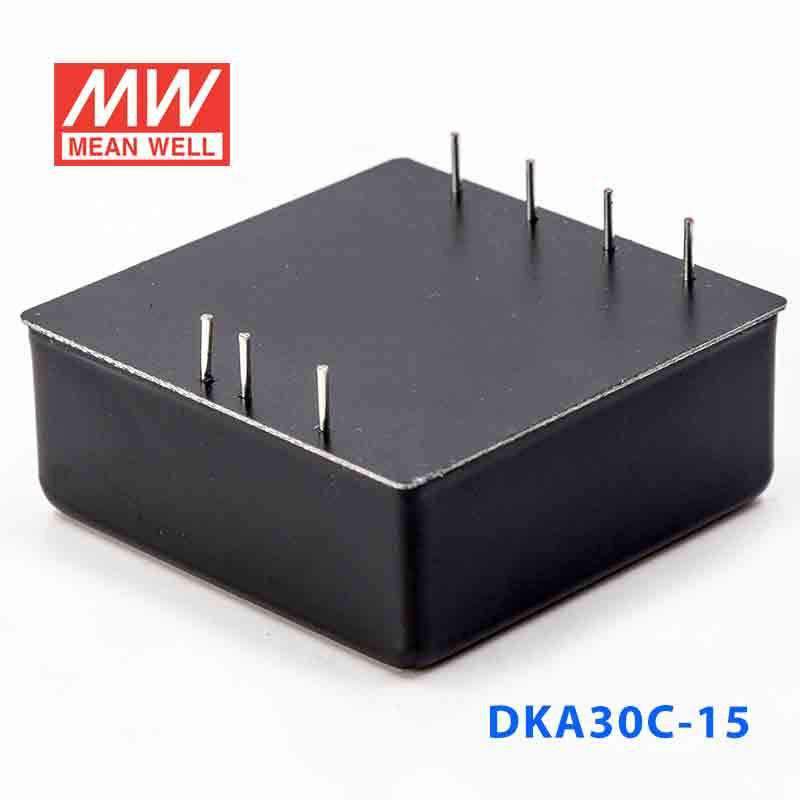

Mean Well DKA30C-15 DC-DC Converter - 30W - 36~72V in ±15V out

SKU:

DKA30C-15

$28.51 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2:1 wide input range

4:1 wide input range(option)

1000VDC I/O isolation

Built-in remote ON/OFF control

Built-in EMI filter

Protection: Short circuit / Overload Input and output over voltage

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Trimming output (±10%) for dual output

1 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.5% (max.) for dual output; ±1% (max.) for triple output
Load regulation	±0.5% (10~100% load)(Dual); ±5% (20~100% load)(Triple)
Overload protection	110%~180%, auto-recovery
Efficiency	83% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.) @500VDC
Working temperature	-40~+85°C (refer to output derating curve)
Storage temperature	-40°C to +105°C
Temp. Coefficient	±0.03% / °C (max.)
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm)	2" x 2" x 0.82"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

DKA Series
Power Rating

30 Watt
Output Voltage

15 Volt
Rated Current

1 Ampere
Input Voltage

36V~72V
No of Output

2
Dimming Control

None
Standards Met

CE,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

2 Year
Length

2 in
Width

2 in
Height

0.83 in
Weight

0.24 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DKA30C-15 for a 15V analog control circuit in industrial equipment?

Yes, if the circuit requires a constant 15V output and stays within 1A and 30W. The listed input range is 36-72VAC, so it is intended for systems operating within that input window.

Is the DKA30C-15 a fit for 15V instrumentation or signal-conditioning modules?

This model is suited to regulated 15V loads because it provides constant-voltage output at 15V. Its 30W rating and 1A output limit define the load range it can support.

Can the DKA30C-15 be used in automation equipment that runs in very hot or very cold environments?

The specified operating temperature range is -40°C to +85°C, which is broad for industrial equipment. That makes it relevant for automation applications where ambient conditions vary widely, provided the load matches 15V, 1A, and 30W.

Is this converter suitable for outdoor control enclosures?

The temperature spec is -40°C to +85°C, but no IP rating is listed in the provided data. So the thermal range is defined, while outdoor exposure to dust or water is not covered by the published specs.

What are the main differences between the DKA30C-15 and the other DKA30C models listed here?

The listed sibling DKA30C-05 is 25W with 5V output and 2.5A, and the DKA30C-12 is 30W with 12V output and 1.25A. The DKA30C-15 is the 30W, 15V, 1A option in the same series group.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well DKA30B-15 DC-DC Converter - 30W - 18~36V in ±15V out	30W	15V	1A	Indoor	$24.68	View
Mean Well DKA30C-12 DC-DC Converter - 30W - 36~72V in ±12V out	30W	12V	1.25A	Indoor	$28.51	View
Mean Well DKA30C-05 DC-DC Converter - 25W - 36~72V in ±5V out	25W	5V	2.5A	Indoor	$28.51	View
Mean Well DKA30B-12 DC-DC Converter - 30W - 18~36V in ±12V out	30W	12V	1.25A	Indoor	$24.68	View
Mean Well DKA30B-05 DC-DC Converter - 25W - 18~36V in ±5V out	25W	5V	2.5A	Indoor	$28.45	View
Mean Well DKA30A-15 DC-DC Converter - 30W - 9~18V in ±15V out	30W	15V	1A	Indoor	$28.45	View
Mean Well DKA30A-12 DC-DC Converter - 30W - 9~18V in ±12V out	30W	12V	1.25A	Indoor	$28.45	View
Mean Well DKA30A-05 DC-DC Converter - 25W - 9~18V in ±5V out	25W	5V	2.5A	Indoor	$28.51	View
