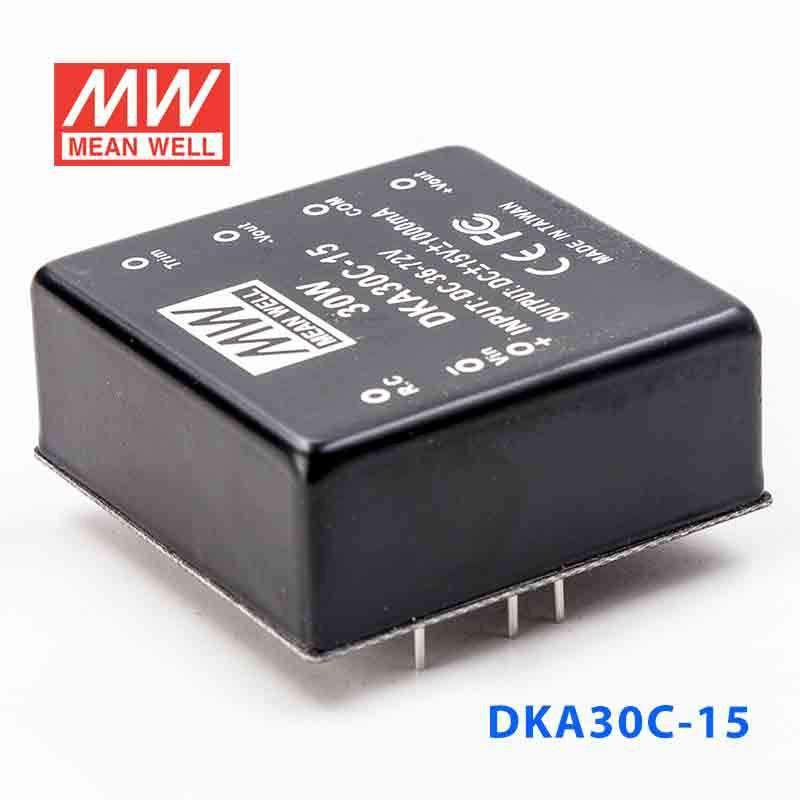

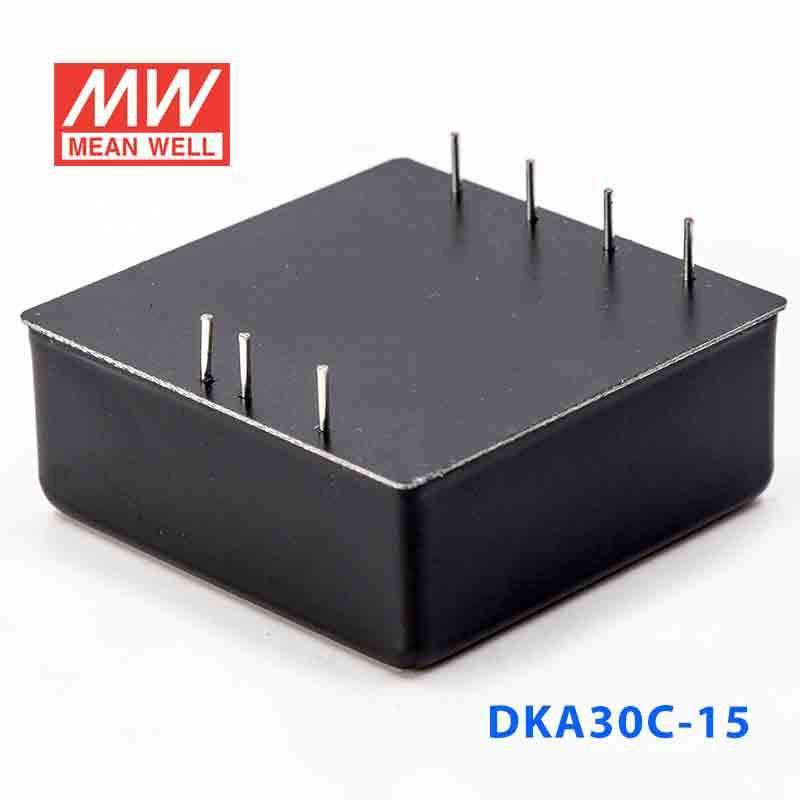

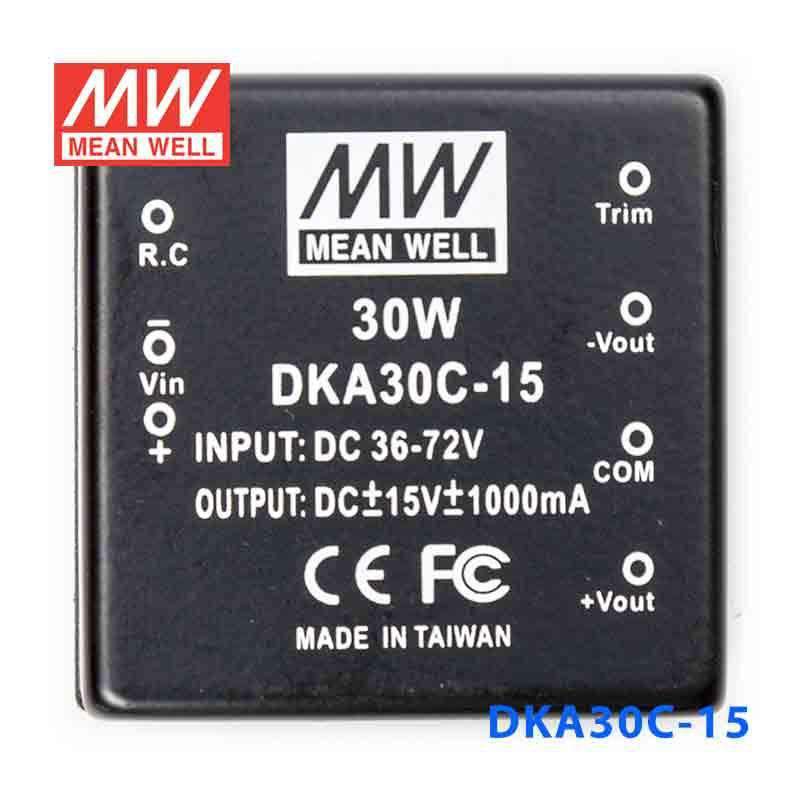

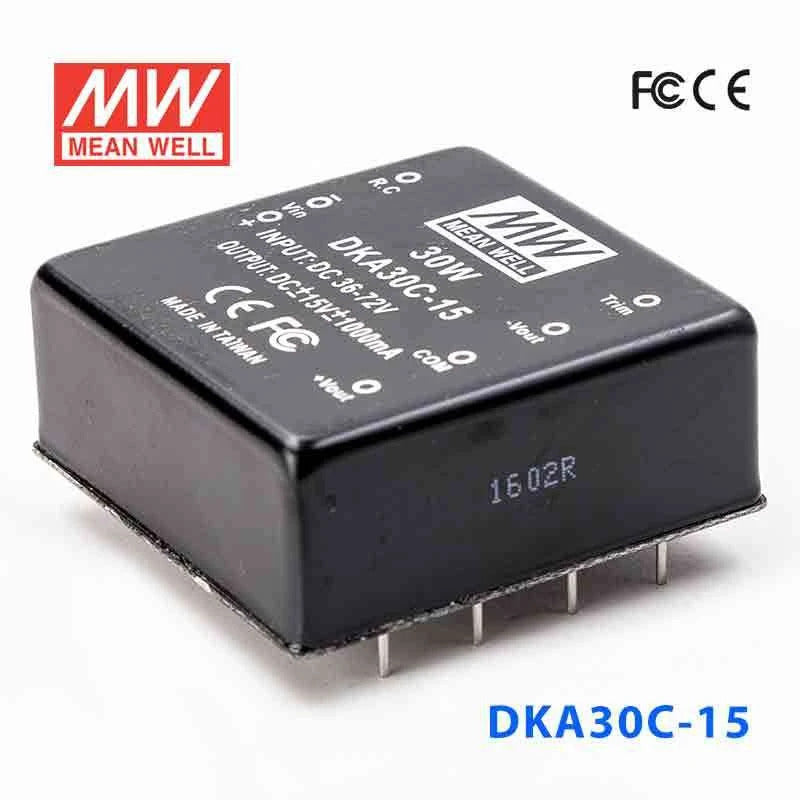

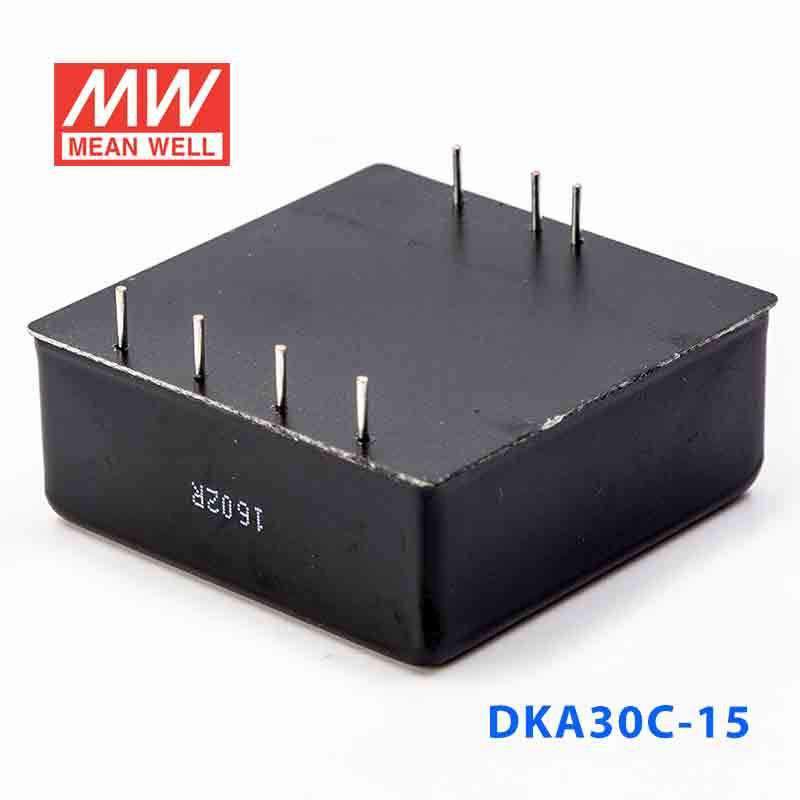

Mean Well DKA30C-15 DC-DC Converter - 30W - 36~72V in ±15V out
The DKA30C is a 30W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY -40 ~ +105 ± 0.03% / ℃ ℃ , 10 ~ 95% RH ℃ (0 ~ 50 ) 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKA Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.83 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the DKA30C-15 for a 15V analog control circuit in industrial equipment?
Yes, if the circuit requires a constant 15V output and stays within 1A and 30W. The listed input range is 36-72VAC, so it is intended for systems operating within that input window.
Is the DKA30C-15 a fit for 15V instrumentation or signal-conditioning modules?
This model is suited to regulated 15V loads because it provides constant-voltage output at 15V. Its 30W rating and 1A output limit define the load range it can support.
Can the DKA30C-15 be used in automation equipment that runs in very hot or very cold environments?
The specified operating temperature range is -40°C to +85°C, which is broad for industrial equipment. That makes it relevant for automation applications where ambient conditions vary widely, provided the load matches 15V, 1A, and 30W.
Is this converter suitable for outdoor control enclosures?
The temperature spec is -40°C to +85°C, but no IP rating is listed in the provided data. So the thermal range is defined, while outdoor exposure to dust or water is not covered by the published specs.
What are the main differences between the DKA30C-15 and the other DKA30C models listed here?
The listed sibling DKA30C-05 is 25W with 5V output and 2.5A, and the DKA30C-12 is 30W with 12V output and 1.25A. The DKA30C-15 is the 30W, 15V, 1A option in the same series group.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DKA30 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DKA30B-15 DC-DC Converter - 30W - 18~36V in ±15V out | 30W | 15V | 1A | Indoor | $28.45 | View |
| Mean Well DKA30C-12 DC-DC Converter - 30W - 36~72V in ±12V out | 30W | 12V | 1.25A | Indoor | $28.51 | View |
| Mean Well DKA30C-05 DC-DC Converter - 25W - 36~72V in ±5V out | 25W | 5V | 2.5A | Indoor | $28.51 | View |
| Mean Well DKA30B-12 DC-DC Converter - 30W - 18~36V in ±12V out | 30W | 12V | 1.25A | Indoor | $28.45 | View |
| Mean Well DKA30B-05 DC-DC Converter - 25W - 18~36V in ±5V out | 25W | 5V | 2.5A | Indoor | $28.45 | View |
| Mean Well DKA30A-15 DC-DC Converter - 30W - 9~18V in ±15V out | 30W | 15V | 1A | Indoor | $28.45 | View |
| Mean Well DKA30A-12 DC-DC Converter - 30W - 9~18V in ±12V out | 30W | 12V | 1.25A | Indoor | $28.45 | View |
| Mean Well DKA30A-05 DC-DC Converter - 25W - 9~18V in ±5V out | 25W | 5V | 2.5A | Indoor | $28.51 | View |
