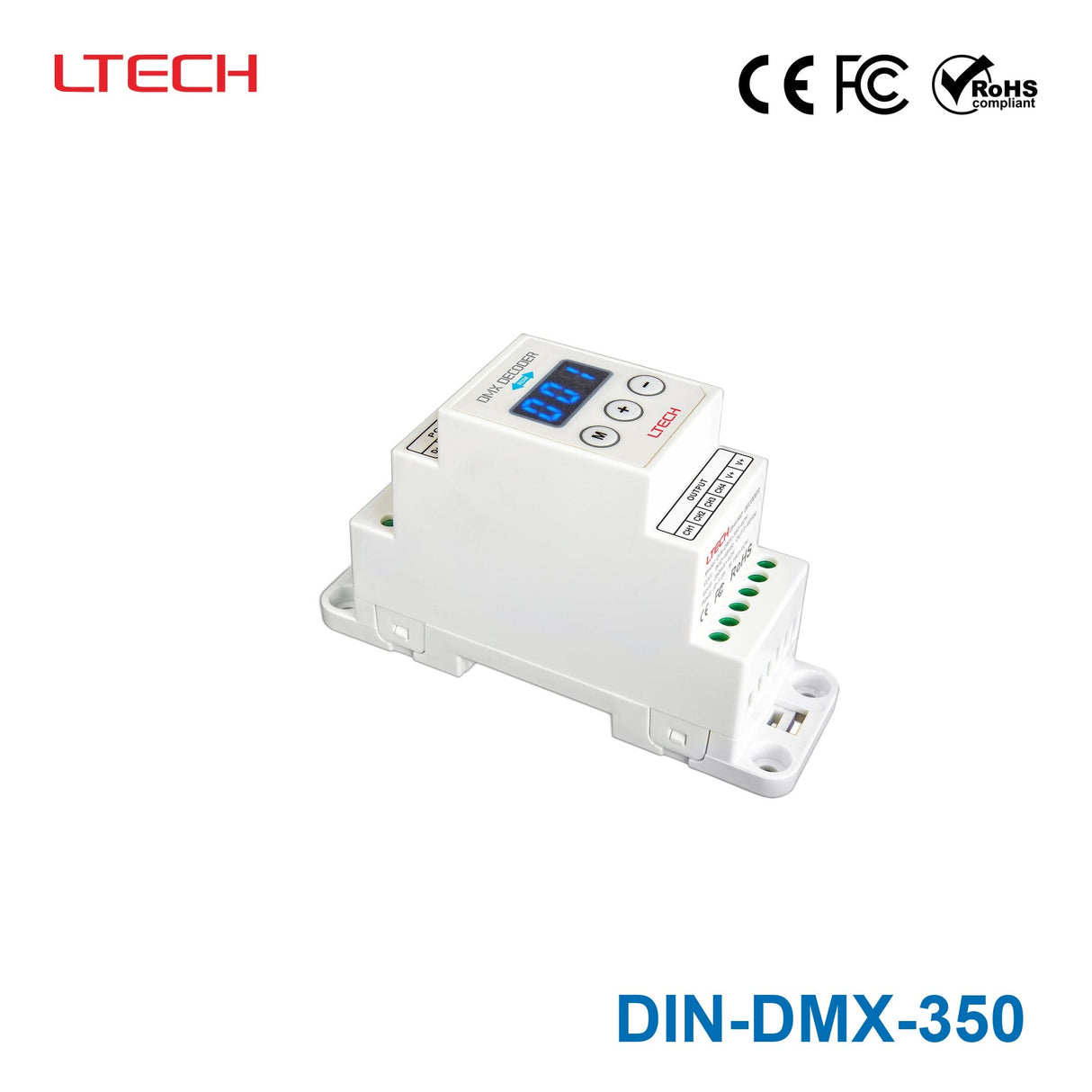

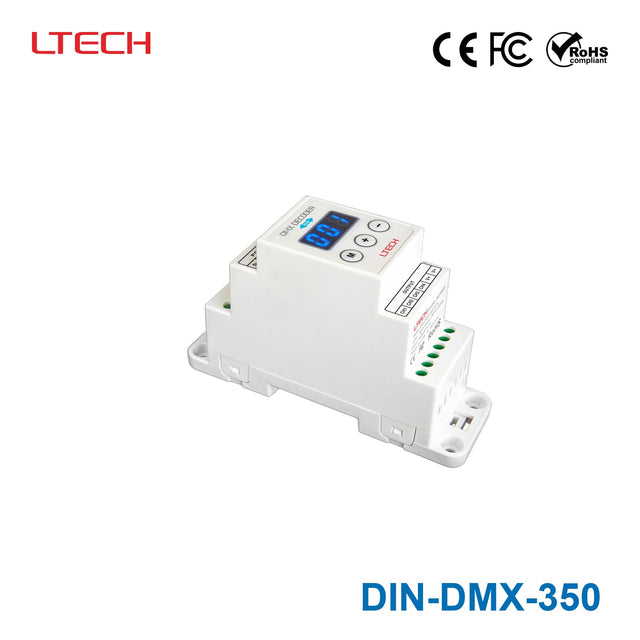

Ltech DIN-DMX-350 Constant Current Decoder - DMX/RDM
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB LED lights.
Have excellent performance:
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lighting stroke and ESD static electricity.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating48.3 Watt
-
Output Voltage46 Volt
-
Rated Current0.35 Ampere
-
Input Voltage12V~48V
-
No of Output3
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.41 in
-
Width1.38 in
-
Height2.64 in
-
Weight0.31 lb
::specification::
