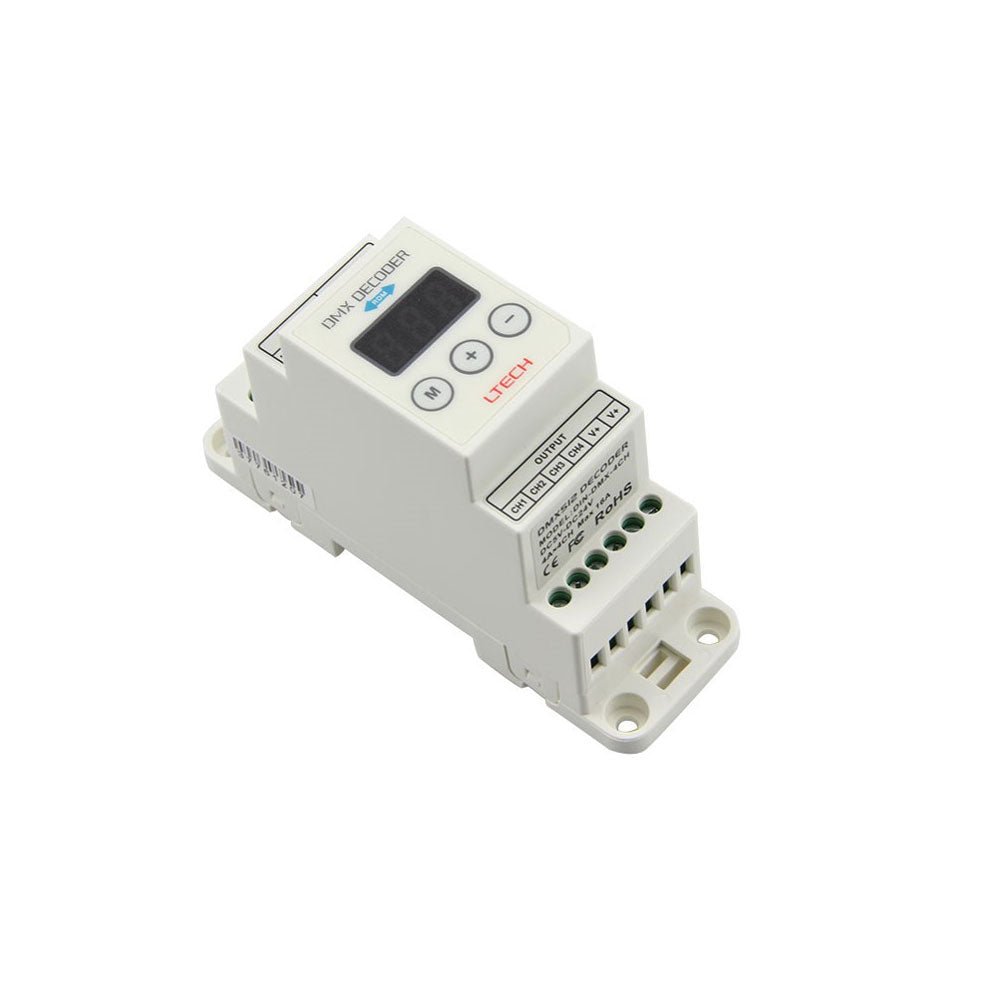

Ltech DIN-DMX-350 Constant Current Decoder - DMX/RDM

SKU:
DIN-DMX-350

$75.17 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB LED lights.

Have excellent performance:

16-bit dimming curve.

Frame rate is as high as 850 frames per second.

Built-in protection circuit of resistance to lighting stroke and ESD static electricity.

Specifications

  • Brand
    Ltech
  • Series
    Ltech DMX Series
  • Power Rating
    48.3 Watt
  • Output Voltage
    46 Volt
  • Rated Current
    0.35 Ampere
  • Input Voltage
    12V~48V
  • No of Output
    3
  • Dimming Control
    DMX,RDM Signal
  • Standards Met
    CE,FCC,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~55°C
  • Warranty
    5 Year
  • Length
    4.41 in
  • Width
    1.38 in
  • Height
    2.64 in
  • Weight
    0.31 lb

File Downloads

::specification::
