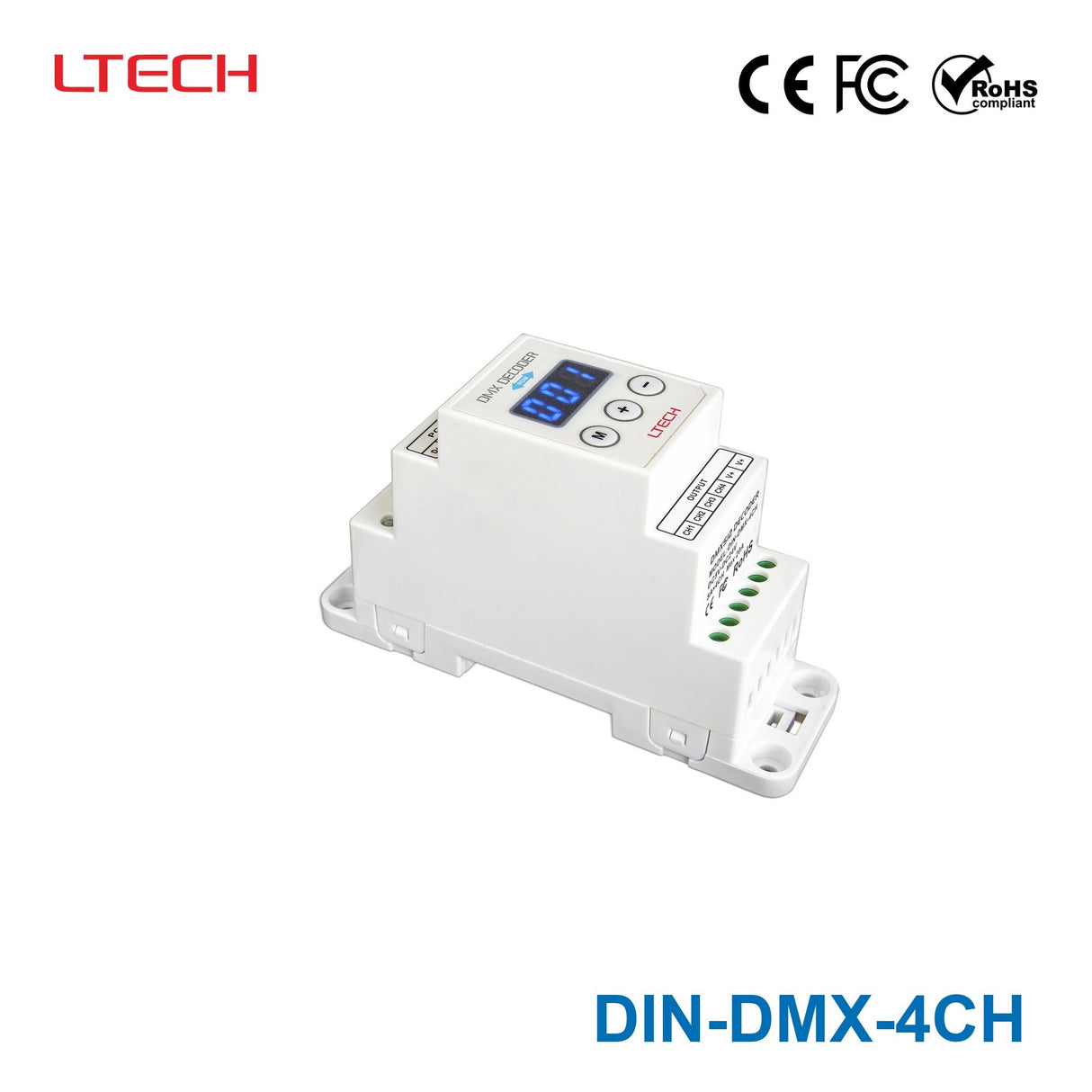

Ltech DIN-DMX-4CH Constant Voltage Decoder - DMX/RDM
$71.53 USD
Unit price /
Unavailable
This DIN rail DMX controller has 4 outputs of each 4A and can be easily mounted on a DIN rail. The 4-channel controller is perfect to control RGBW strip through DMX. And it is easy to address trough the display.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating384 Watt
-
Output Voltage24 Volt
-
Rated Current16 Ampere
-
Input Voltage5V~24V
-
No of Output4
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.41 in
-
Width1.38 in
-
Height2.64 in
-
Weight0.31 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DIN-DMX Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech DIN-DMX-350-4CH Constant Current Decoder - DMX/RDM | 64.4W | 46V | 0.35A | Indoor | $82.44 | View |
| Ltech DIN-DMX-350 Constant Current Decoder - DMX/RDM | 48.3W | 46V | 0.35A | Indoor | $75.17 | View |
