Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

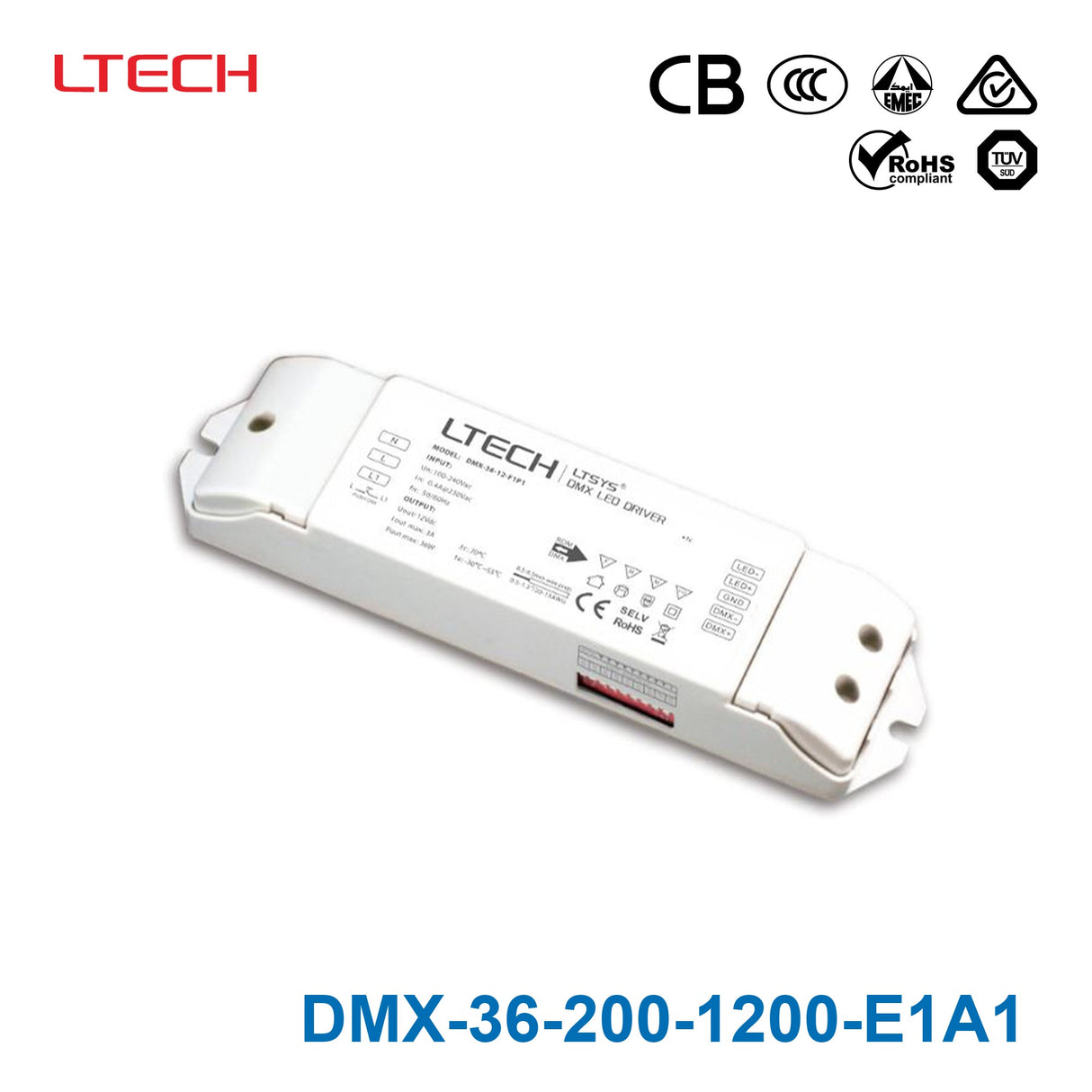

Ltech DMX-36-200-1200-E1A1 36W 200~1200mA CC DMX LED Driver - Selec...
- Dimming interface: DMX512/RDM
- Push DIM
- T-PWM digital dimming
- With RDM remote device management protocol.
- DIP switch for 8 optional currents' quick selection.
- 0-100% flicker-free
- High Frequency Exemption
- Dimming range from 0-100%
- LED start at 0.01%possible.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Short circuit / Over load/Over heat/Over voltage
- Non-load protection
- recover automatically
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Suitable for indoor I/II/III
- 5 years warranty (Rubycon capacitor).
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating36 Watt
-
Output Voltage58 Volt
-
Rated Current0.2 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCB,CCC,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty3 Year
-
Length6.57 in
-
Width1.61 in
-
Height1.26 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What kind of LED applications is the Ltech DMX-36-200-1200-E1A1 designed for?
This model is a constant-current LED driver intended for indoor LED lighting applications that need dimming control. Its selectable current design and DMX-focused control make it suitable for commercial and architectural projects where flexible output settings and smooth dimming are important.
What dimming methods does this LED driver support?
The DMX-36-200-1200-E1A1 supports DMX512/RDM dimming and also lists Push DIM and T-PWM digital dimming in the product description. It is designed for 0-100% flicker-free dimming, with low-end dimming performance down to 0.01% start capability.
What makes this model different from a fixed-output constant-current LED driver?
Unlike a fixed-output driver, this model provides 8 optional current settings for quick selection within a 200-1200mA range. That gives buyers more flexibility when matching one driver model to different power LED requirements across a project.
Is the Ltech DMX-36-200-1200-E1A1 compatible with DMX control systems?
Yes, this model is specifically built for DMX512 control and includes RDM support for remote device management. That makes it a fit for lighting systems that use DMX-based dimming and need device-level management capability.
What are the main electrical ratings for this LED driver?
This model is rated at 36W and has an output voltage rating of 58V. The product name and description indicate selectable constant-current output from 200mA up to 1200mA, giving it broader application flexibility than a single-current driver.
Can this LED driver be used in demanding indoor environments?
It is rated for indoor use and has an operating temperature range of -20°C to 50°C. The product description also highlights thermal management, automatic recovery protection, and protections for short circuit, overload, overheat, overvoltage, and non-load conditions.
