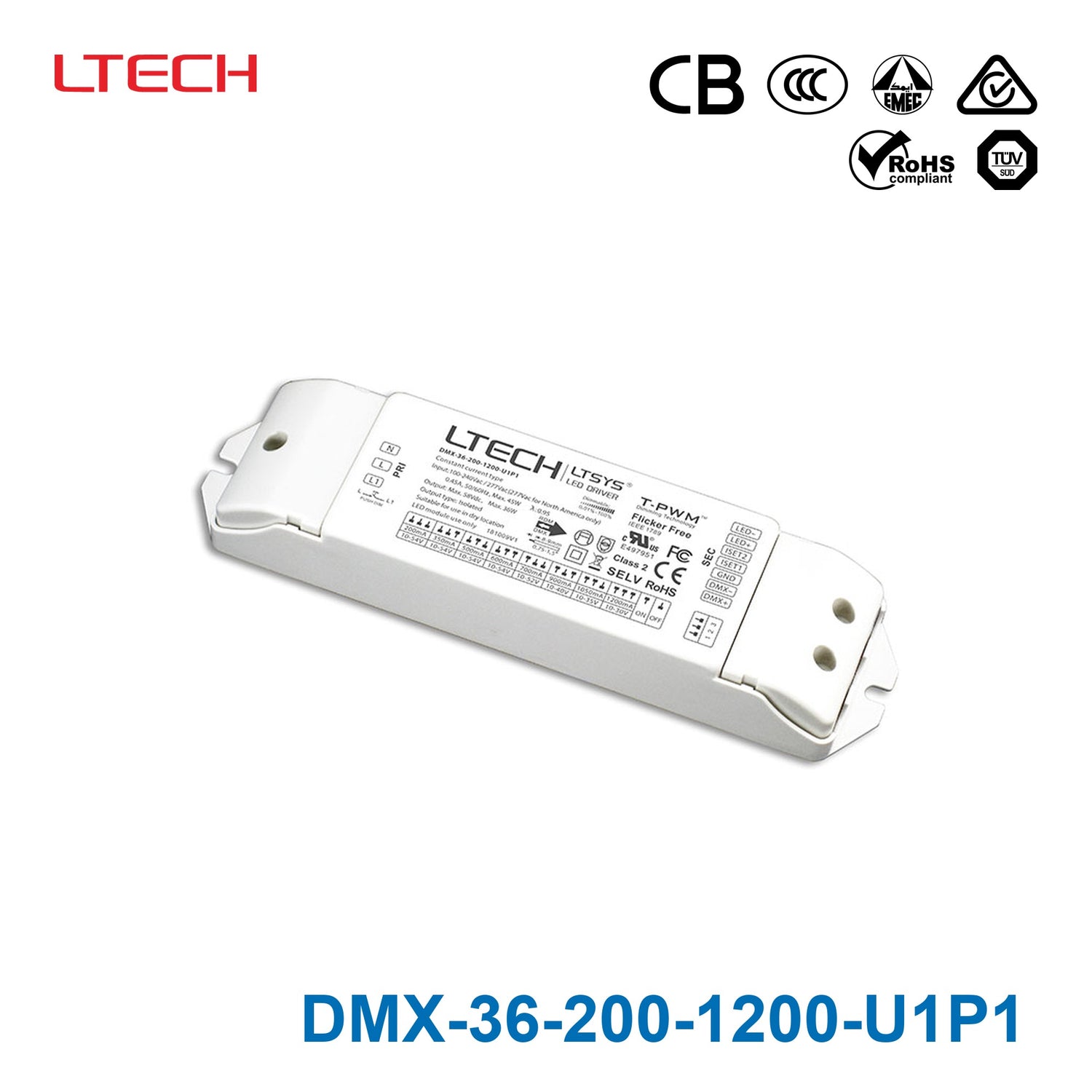

Ltech DMX-36-200-1200-U1P1 36W 200~1200mA CC DMX LED Driver - Selec...
Description
Description
- Dimming interface: DMX512/RDM
- Push DIM
- T-PWM digital dimming
- With RDM remote device management protocol.
- DIP switch for 8 optional currents' quick selection.
- 0-100% flicker-free
- High Frequency Exemption
- Dimming range from 0-100%
- LED start at 0.01%possible.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Short circuit / Over load/Over heat/Over voltage
- Non-load protection
- recover automatically
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Suitable for indoor I/II/III
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating36 Watt
-
Output Voltage58 Volt
-
Rated Current0.2 Ampere
-
Input Voltage100V~277V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCB,CCC,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED applications is the DMX-36-200-1200-U1P1 designed for?
This model is a 36W constant-current DMX LED driver intended for power LED applications that need dimming control. Its multi-current, wide-voltage design makes it suitable for a range of indoor LED lighting projects where selectable output current is useful.
What dimming methods does this LED driver support?
The DMX-36-200-1200-U1P1 supports DMX512/RDM dimming, Push DIM, and T-PWM digital dimming. It provides 0-100% flicker-free dimming and is specified to allow LED start at as low as 0.01%.
How is this model different from a fixed-current LED driver?
This Ltech driver has DIP-switch selectable output current with 8 optional current settings, rather than being limited to a single fixed output. That gives buyers more flexibility when matching one driver model to different constant-current LED loads.
Is the DMX-36-200-1200-U1P1 compatible with RDM-based control systems?
Yes. This model supports DMX512 and includes the RDM remote device management protocol, making it suitable for systems that use RDM functionality. That can be useful in commercial or architectural lighting environments using DMX control infrastructure.
What are the main electrical specifications of this LED driver?
The DMX-36-200-1200-U1P1 is rated at 36W and lists an output voltage of up to 58V. The product data shows a rated current of 200mA, and the description also notes selectable current options via DIP switch.
What operating environment is this driver rated for?
This model is specified for indoor use and has an operating temperature range of -20°C to 50°C. It also includes protections for short circuit, overload, over-heat, over-voltage, and non-load conditions with automatic recovery.
What warranty does the DMX-36-200-1200-U1P1 include?
This LED driver includes a 5-year warranty. The product description specifically notes a 5-year warranty with Rubycon capacitor usage.
Other DMX-36 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech DMX-36-200-1200-E1A1 36W 200~1200mA CC DMX LED Driver - Selectable Output | 36W | 58V | 0.2A | Indoor | $49.24 | View |
