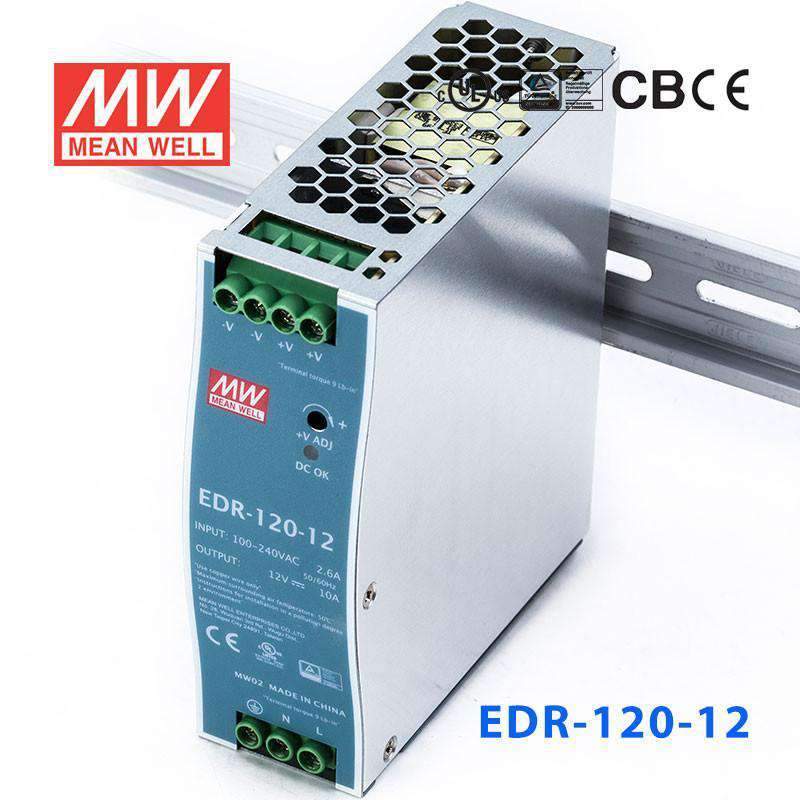

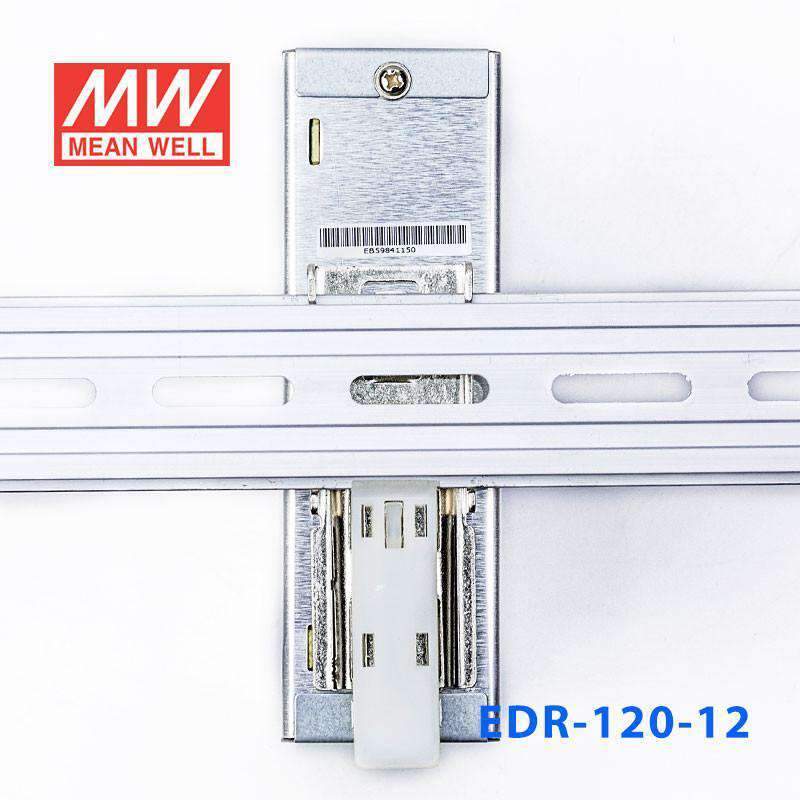

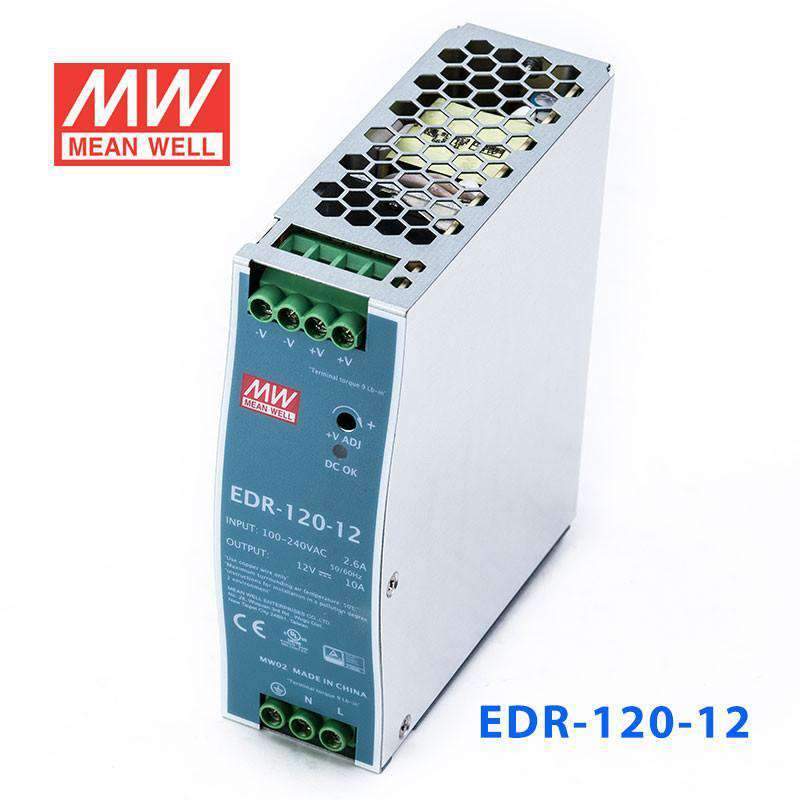

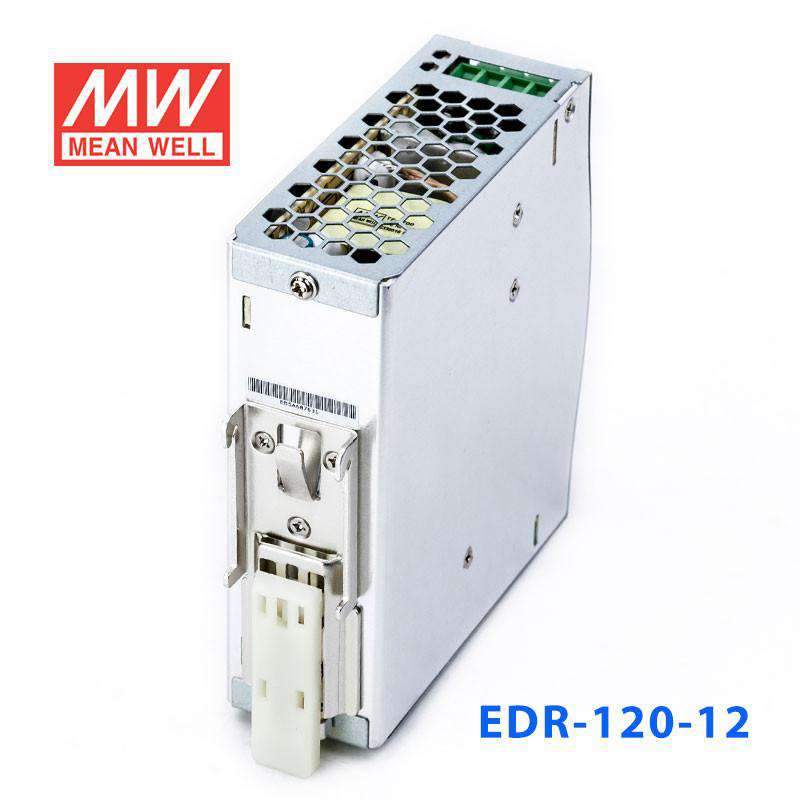

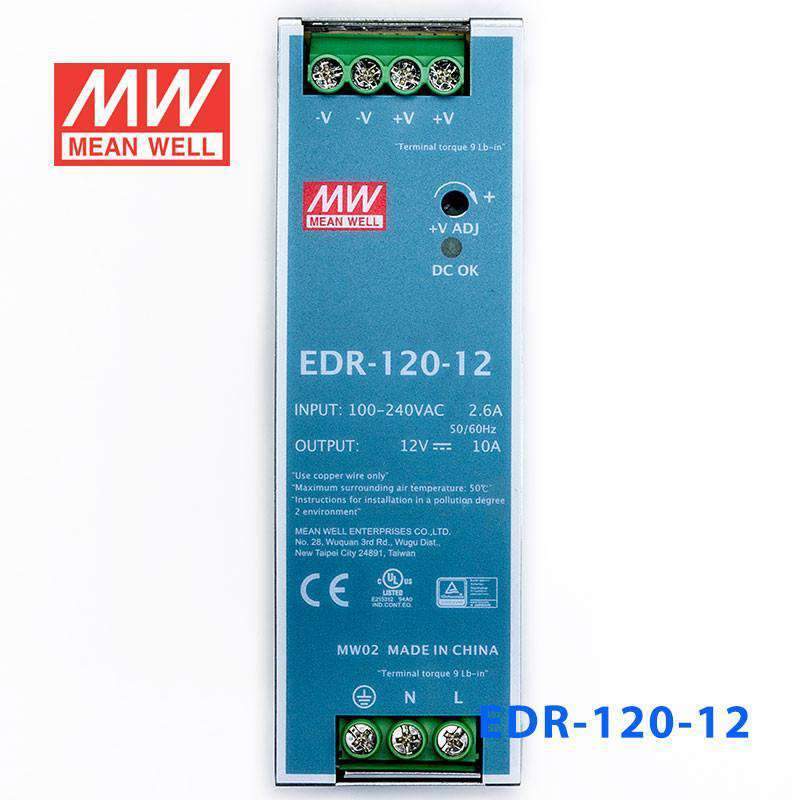

Mean Well EDR-120-12 Single Output Industrial Power Supply 120W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EDR-120-12 Single Output Industrial Power Supply 120W 12V...
The EDR-120 is a 120W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60068-2-6 Ul508, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEDR Series
-
Power Rating120 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4.93 in
-
Width4.47 in
-
Height1.57 in
-
Weight1.32 lb
::specification::
Frequently Asked Questions
What is the difference between the EDR-120-12, EDR-120-24, and EDR-120-48?
All three are 120W slim DIN rail power supplies in the same 125.2 × 113.5 × 40mm enclosure with 90–264VAC universal input. The EDR-120-12 outputs 12V at 10A, the EDR-120-24 outputs 24V at 5A, and the EDR-120-48 outputs 48V at 2.5A. Choose the voltage that matches your load equipment's rated input.
Is the EDR-120-12 suitable for relay and sensor circuits in control panels?
Yes. The EDR-120-12 delivers 12V DC at 10A (120W), which is the standard voltage for many industrial relays, proximity sensors, and low-voltage control circuits. It mounts on standard DIN rail with a slim 40mm profile and meets EMC EN55022 Class A for low electromagnetic interference.
Can the EDR-120-12 power a 12V CCTV or security camera system?
Yes. The EDR-120-12 provides 12V DC at up to 10A (120W), suitable for multi-camera CCTV installations in control rooms or equipment cabinets. It accepts 90–264VAC universal input and is certified to CB, CE, cUL, and TÜV standards.
Can the EDR-120-12 be used inside an enclosed control cabinet?
Yes, it is designed for DIN rail mounting inside control panels and electrical cabinets. It operates in ambient temperatures from −20°C to +60°C. Ensure adequate ventilation within the enclosure, as the unit is not waterproof and is rated for indoor use only.
