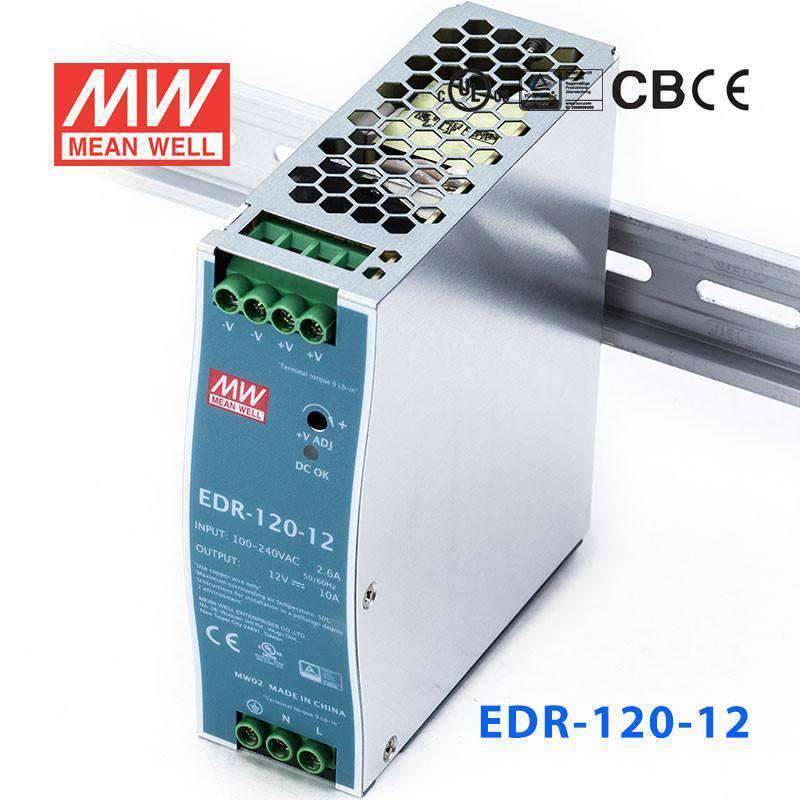

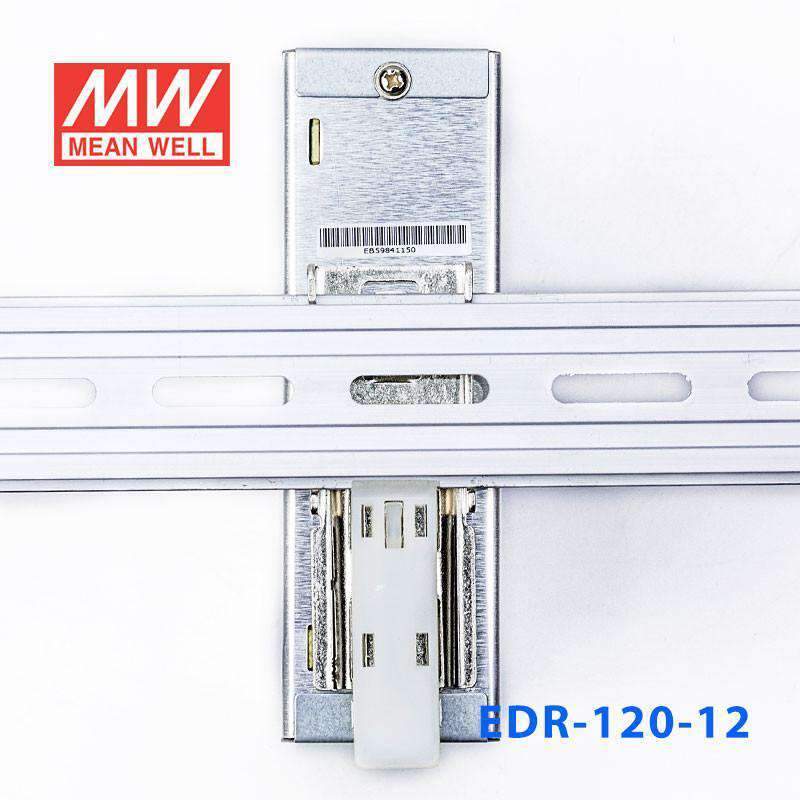

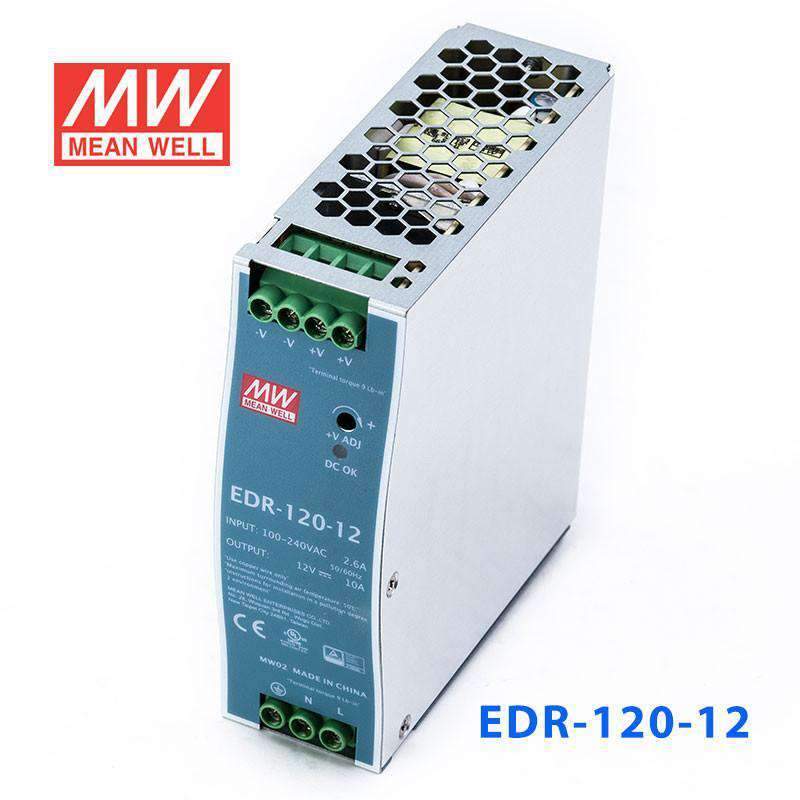

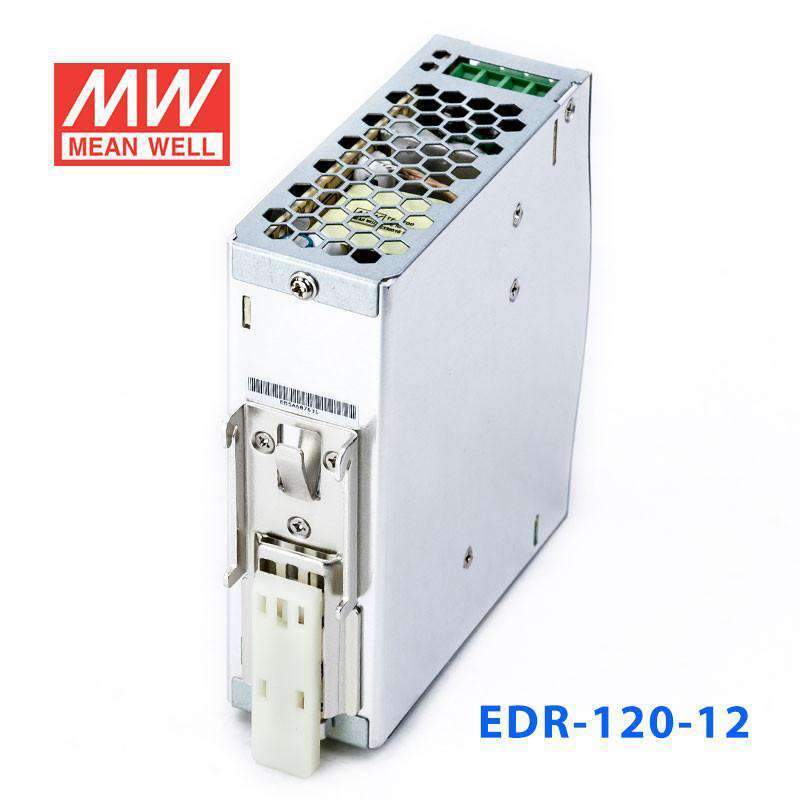

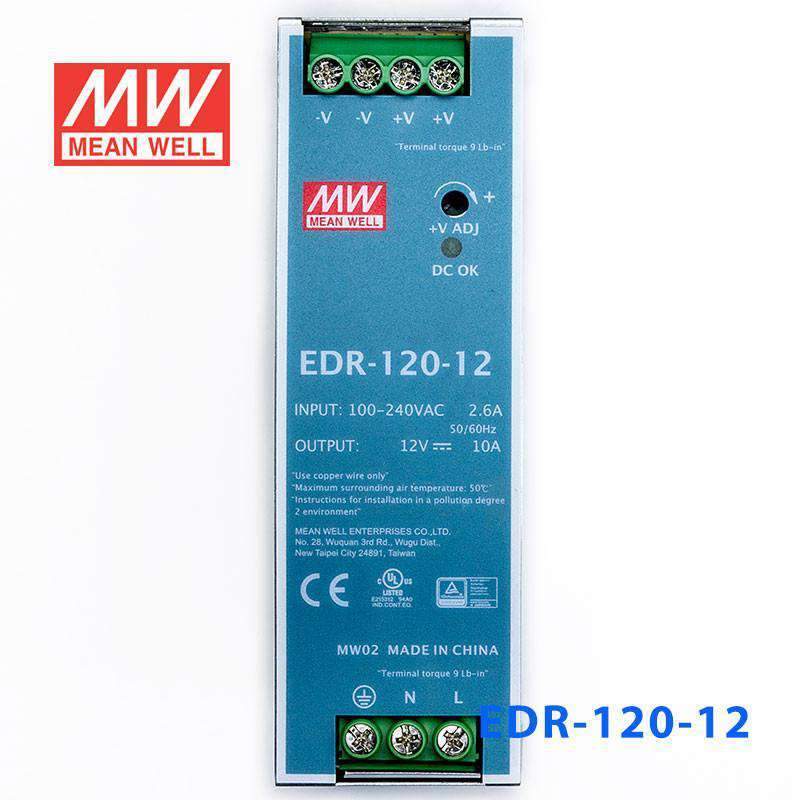

Mean Well EDR-120-12 Single Output Industrial Power Supply 120W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EDR-120-12 Single Output Industrial Power Supply 120W 12V...
Description
Description
The EDR-120 is a 120W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60068-2-6 Ul508, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesEDR Series
-
Power Rating120 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4.93 in
-
Width4.47 in
-
Height1.57 in
-
Weight1.32 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the difference between the EDR-120-12, EDR-120-24, and EDR-120-48?
All three are 120W slim DIN rail power supplies in the same 125.2 × 113.5 × 40mm enclosure with 90–264VAC universal input. The EDR-120-12 outputs 12V at 10A, the EDR-120-24 outputs 24V at 5A, and the EDR-120-48 outputs 48V at 2.5A. Choose the voltage that matches your load equipment's rated input.
Is the EDR-120-12 suitable for relay and sensor circuits in control panels?
Yes. The EDR-120-12 delivers 12V DC at 10A (120W), which is the standard voltage for many industrial relays, proximity sensors, and low-voltage control circuits. It mounts on standard DIN rail with a slim 40mm profile and meets EMC EN55022 Class A for low electromagnetic interference.
Can the EDR-120-12 power a 12V CCTV or security camera system?
Yes. The EDR-120-12 provides 12V DC at up to 10A (120W), suitable for multi-camera CCTV installations in control rooms or equipment cabinets. It accepts 90–264VAC universal input and is certified to CB, CE, cUL, and TÜV standards.
Can the EDR-120-12 be used inside an enclosed control cabinet?
Yes, it is designed for DIN rail mounting inside control panels and electrical cabinets. It operates in ambient temperatures from −20°C to +60°C. Ensure adequate ventilation within the enclosure, as the unit is not waterproof and is rated for indoor use only.
