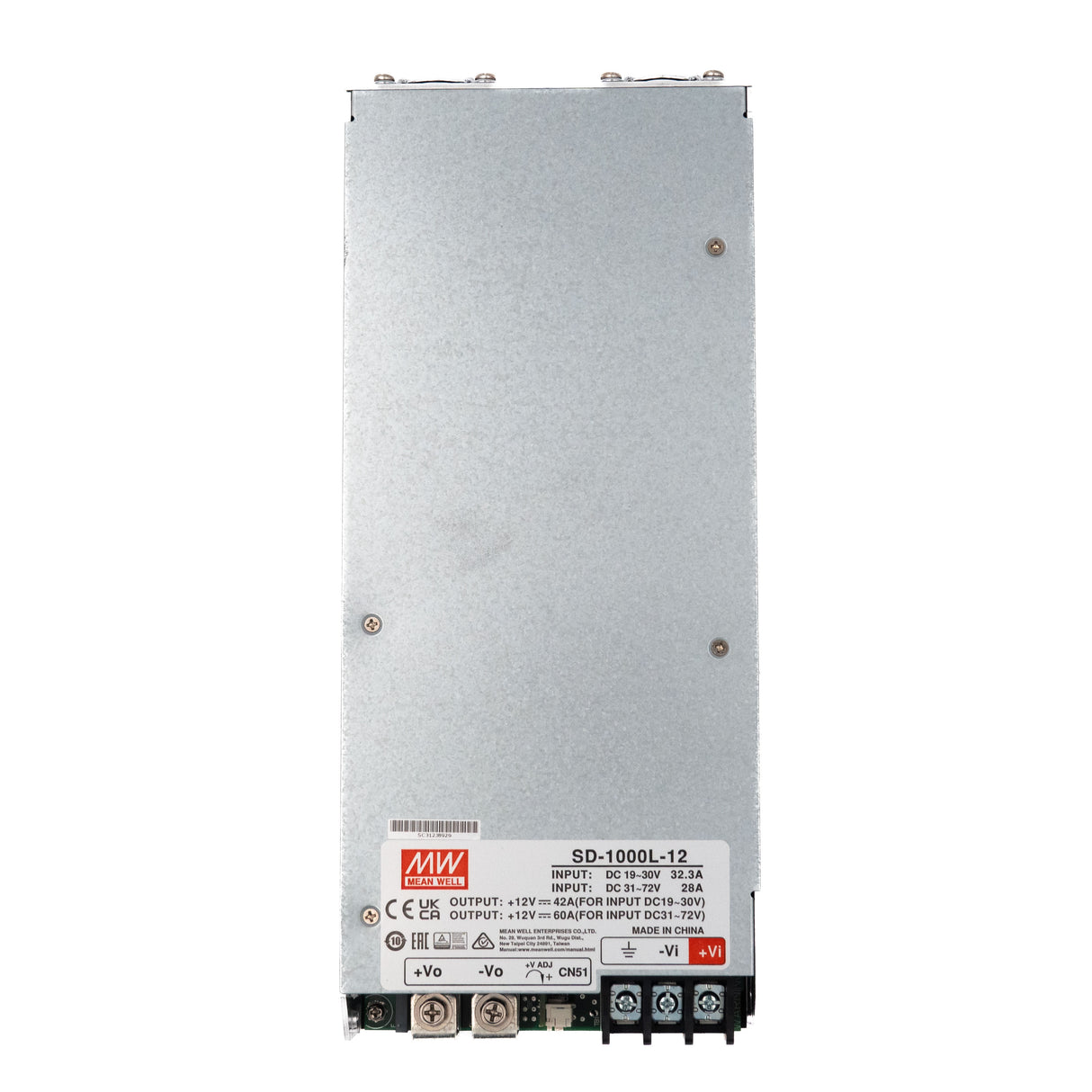

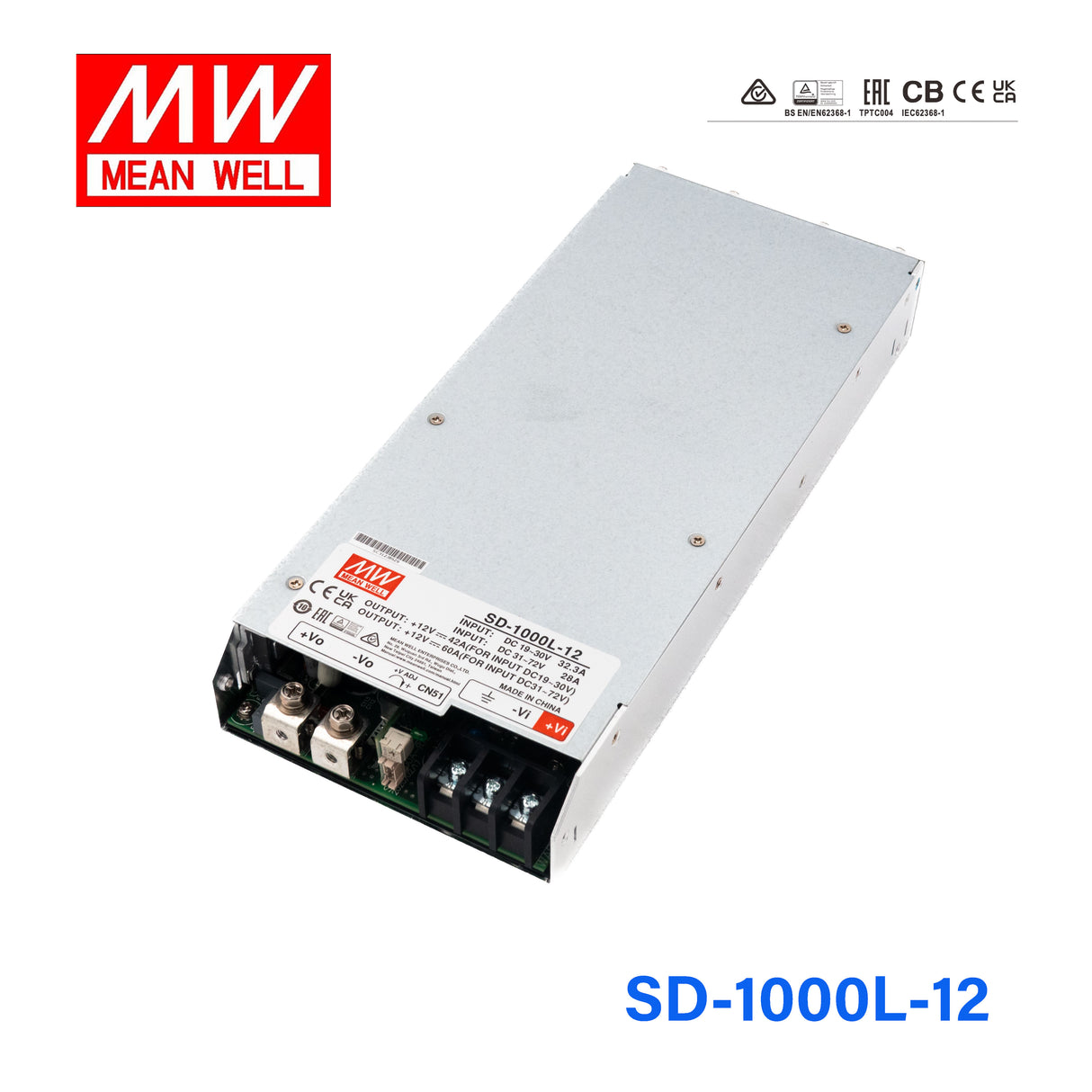

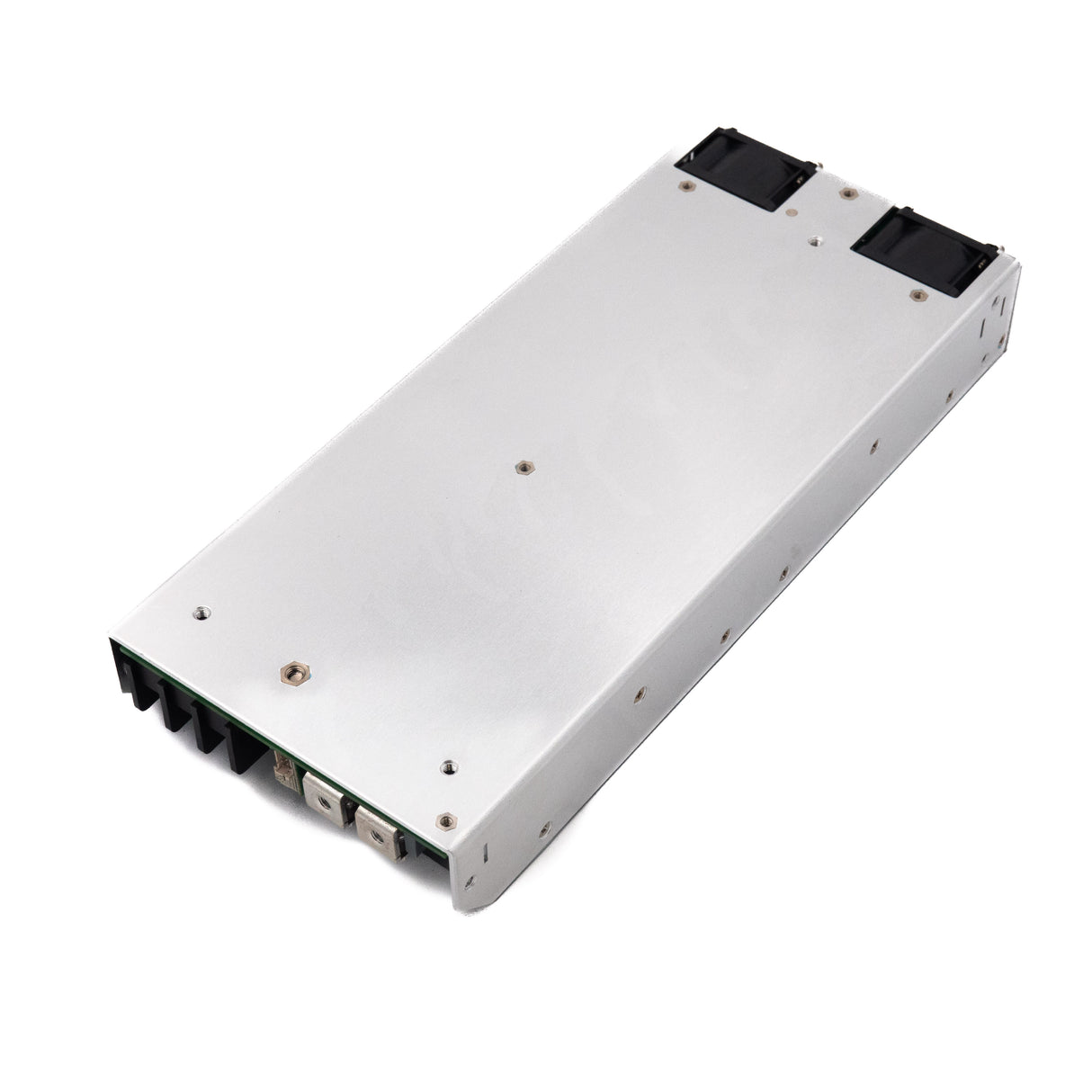

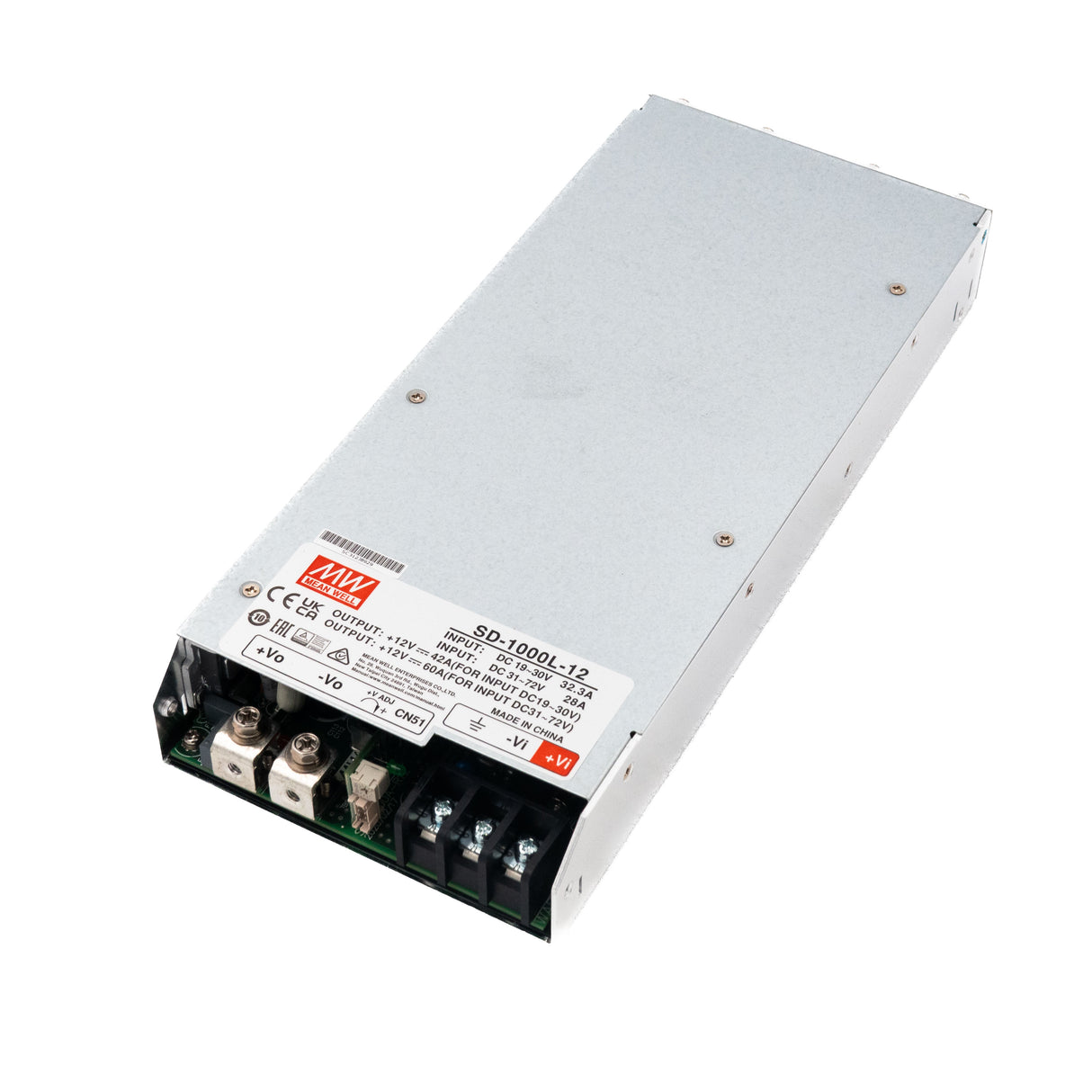

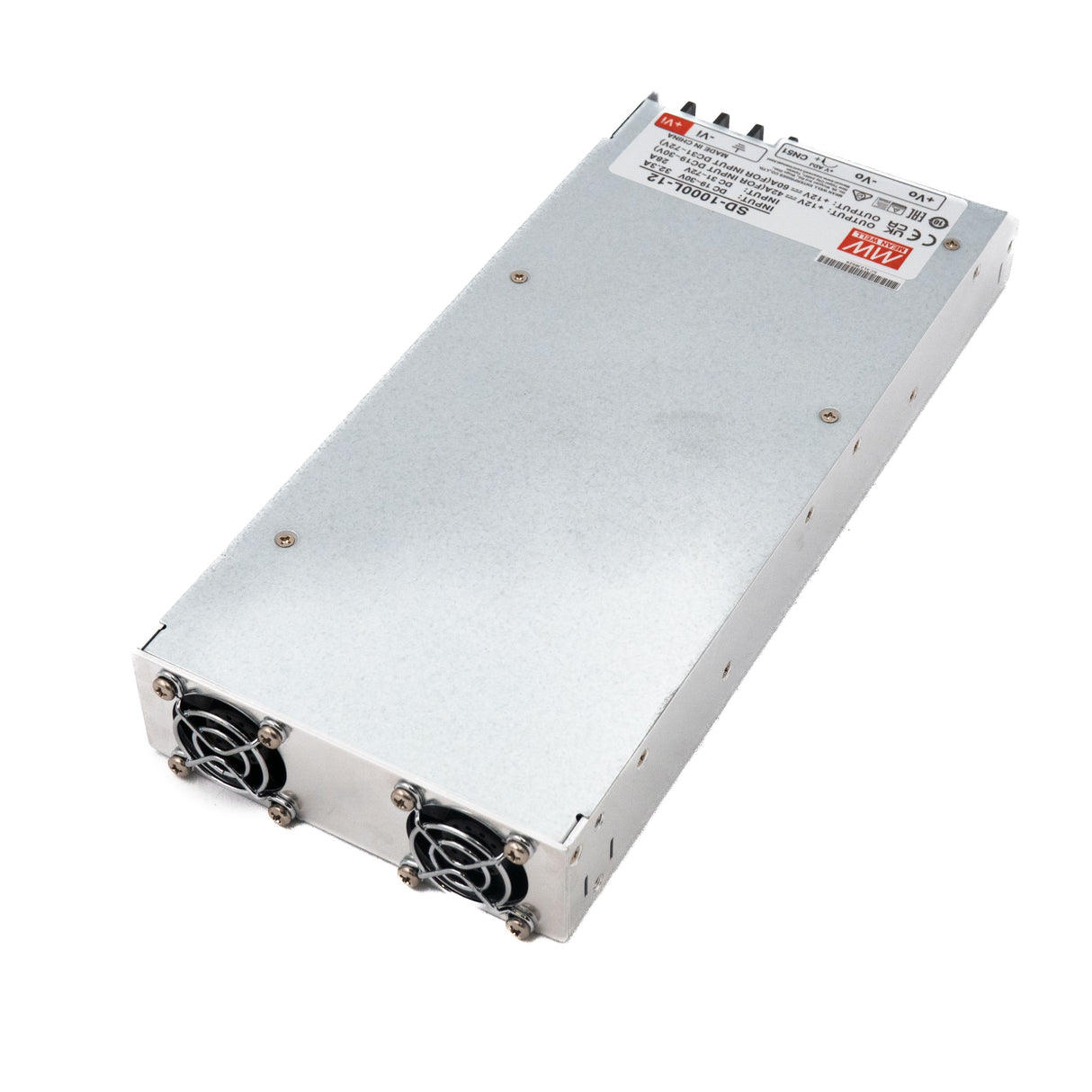

Mean Well SD-1000L-12 DC-DC Converter - 720W - 19~72V in 12V out 60A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000L-12 DC-DC Converter - 720W - 19~72V in 12V out 60A
The SD-1000L is a 720W Mean Well DC-DC converter (input: 19~72VDC, operating temperature: -20~+60°C).
Key Features
- ✓ Input voltage: 19~72VDC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 60A
- ✓ I/O isolation: 500V
- ✓ Operating temperature: -20~+60°C
- ✓ Safety certifications: EAC, TÜV
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating720 Watt
-
Output Voltage12 Volt
-
Rated Current60 Ampere
-
Input Voltage19V~72V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.28 lb
::specification::
Frequently Asked Questions
Can I use the SD-1000L-12 to power a 12V automation system from a lower or wider DC bus?
Yes, this model provides constant-voltage 12V output from a 19-72V input range. Its 720W rating and 60A output current make it suitable for higher-current 12V automation and industrial electronics where the source bus is below the H-version range.
Is the SD-1000L-12 appropriate for embedded or mobile equipment that has a 19-72V source and needs 12V?
It is intended for that type of DC-DC conversion when the input stays within 19-72V. The available output is 12V at up to 60A, so it supports much larger 12V loads than compact low-wattage converters.
Can this model be used in a 1U industrial or IT enclosure for 12V bulk power?
Yes, the unit uses a 1U low-profile design and delivers up to 720W at 12V. It also includes remote ON/OFF control, remote sense, and a 12V/0.25A auxiliary output, which are useful in managed cabinet or rack equipment.
What is the difference between the SD-1000L-12 and the related SD-1000H or other SD-1000L outputs?
Within the listed 1000-series group, the 12V versions are 720W at 60A, the 24V versions are 960W at 40A, and the 48V versions are 1008W at 21A. This SD-1000L-12 specifically combines the 12V, 60A, 720W output with a 19-72V input range, while the H versions are listed separately with a different input range.
Is the SD-1000L-12 suitable for outdoor installations or wide temperature swings?
The published operating temperature range is -20°C to +60°C. No IP rating is listed in the provided specs, so the page does not claim outdoor enclosure protection even though the temperature range is specified.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SD-1000L Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-1000L-48 DC-DC Converter - 1000W - 19~72V in 48V out 21A | 1008W | 48V | 21A | Indoor | $288.64 | View |
