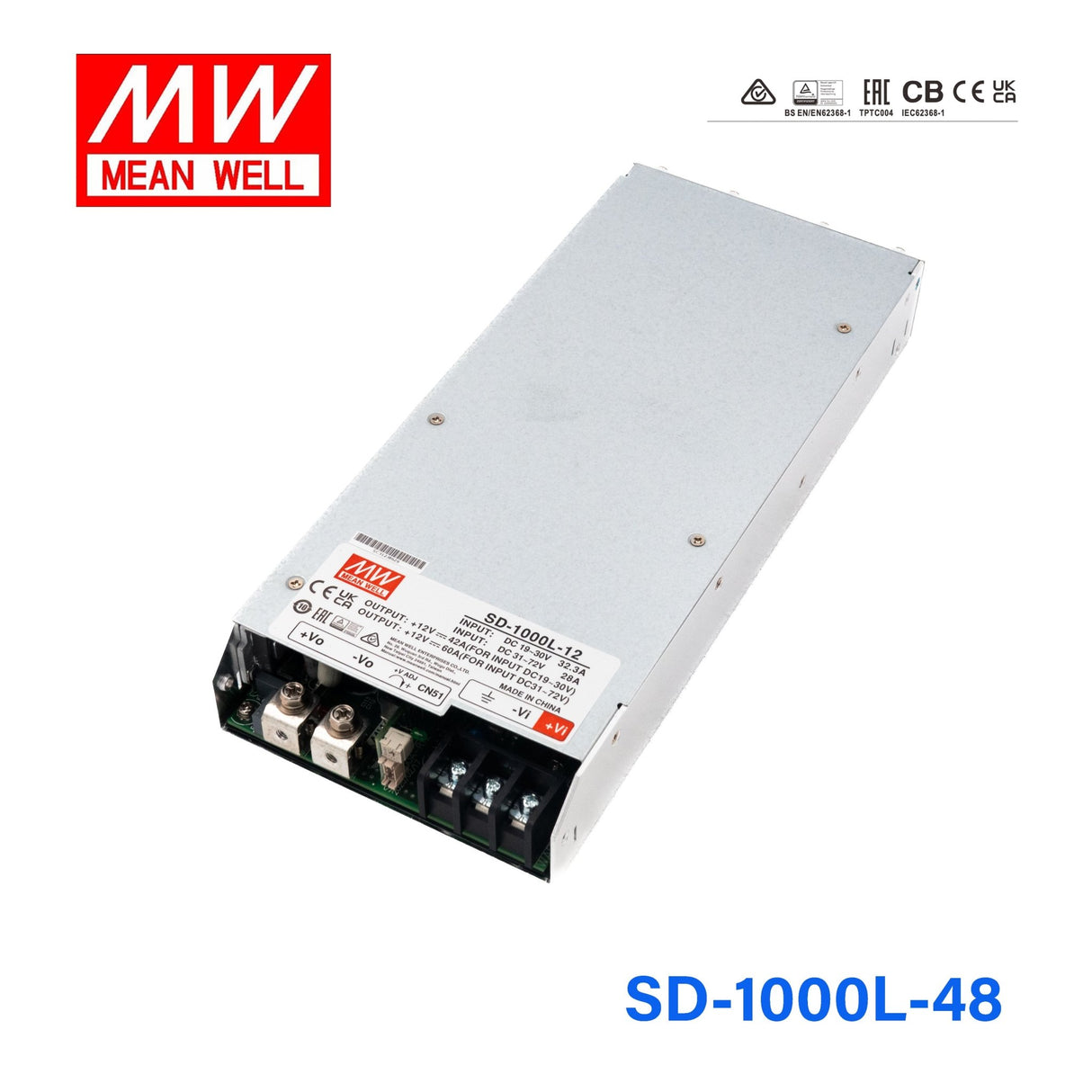

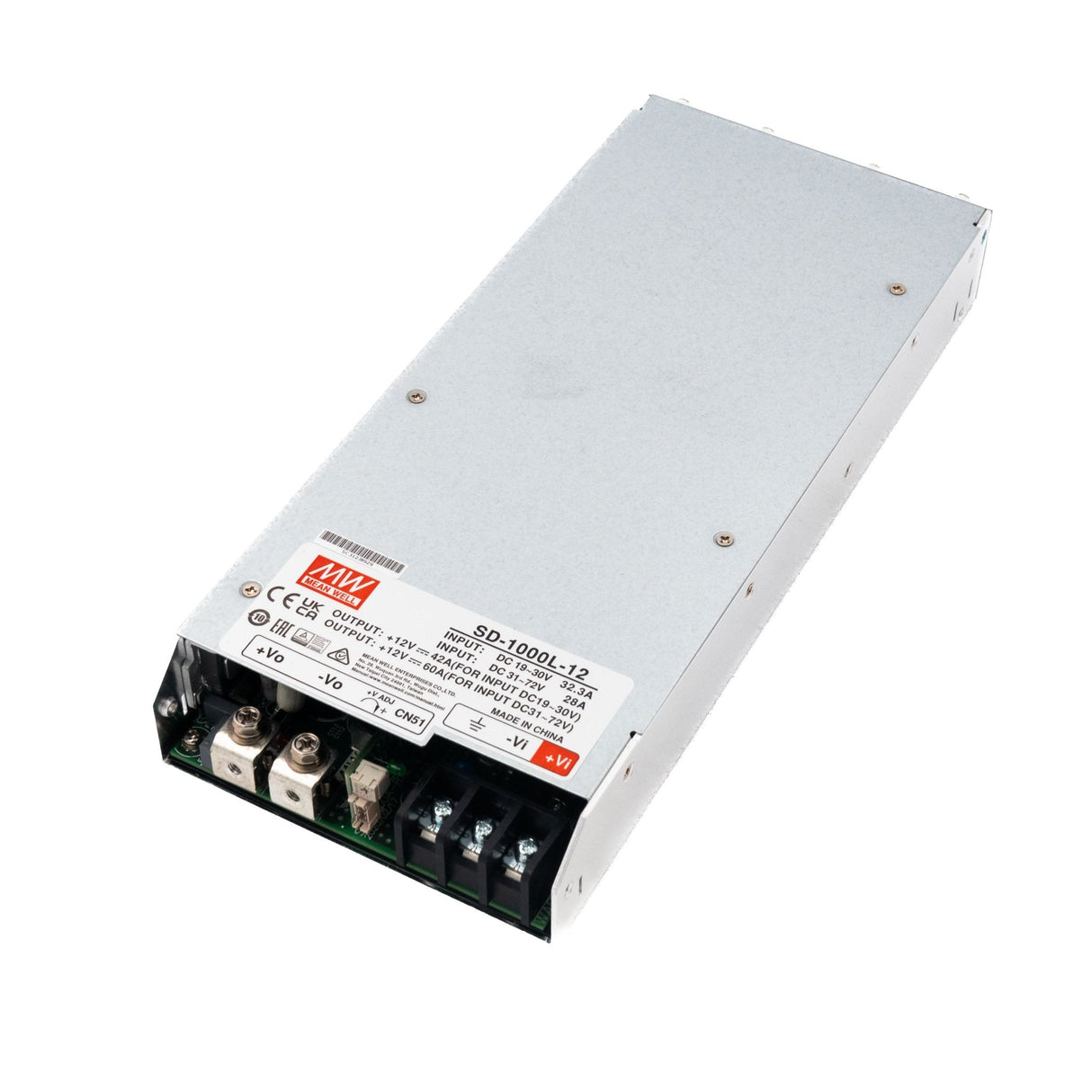

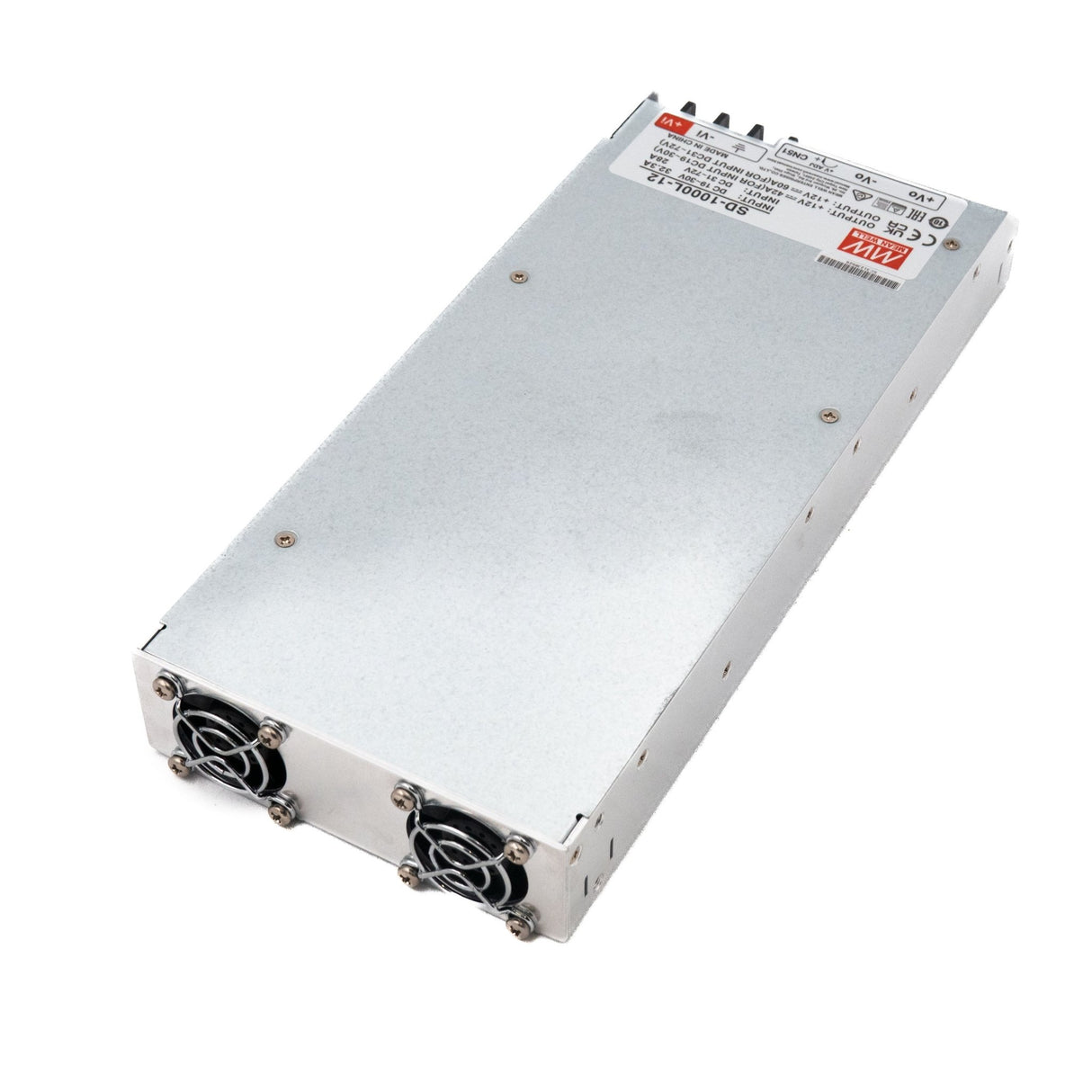

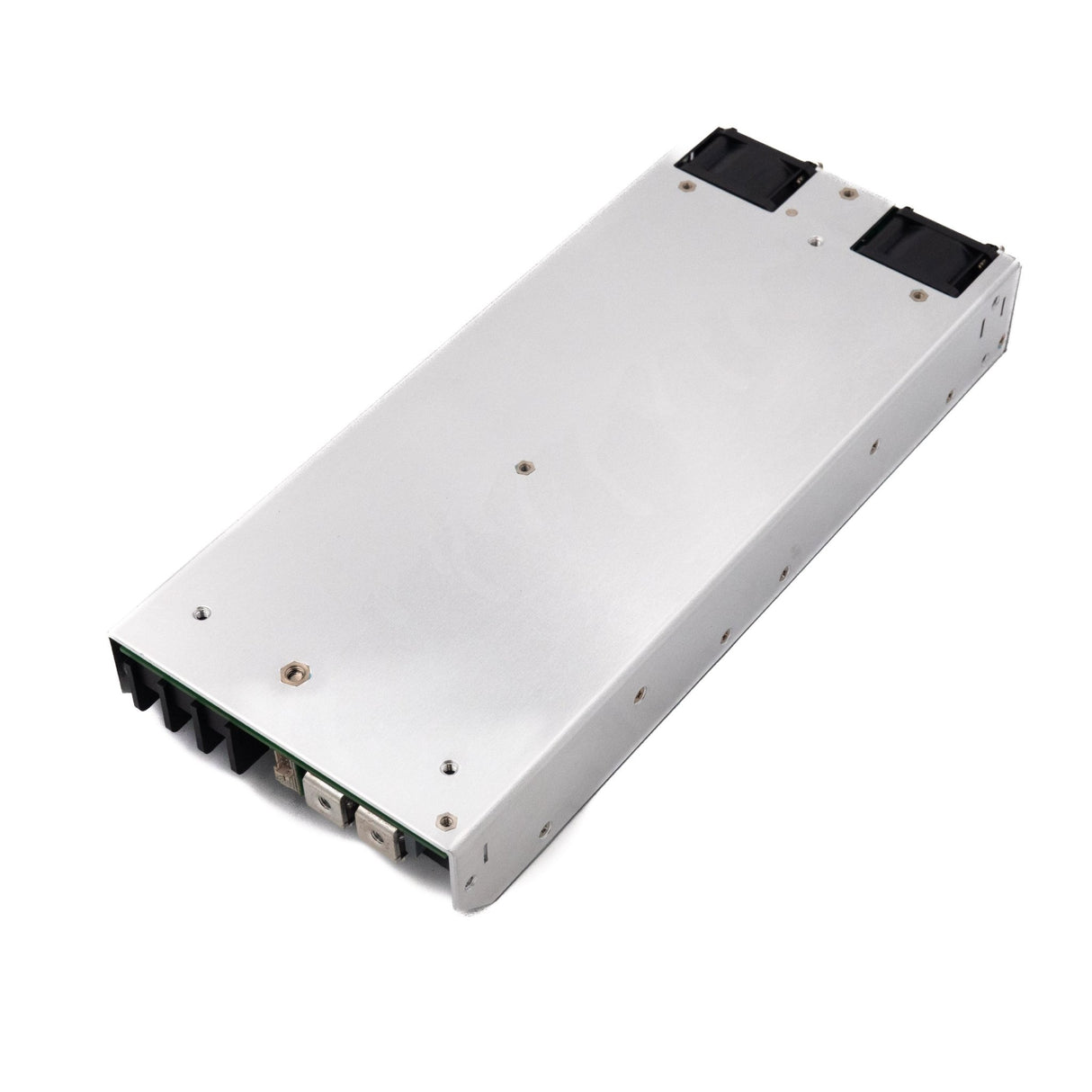

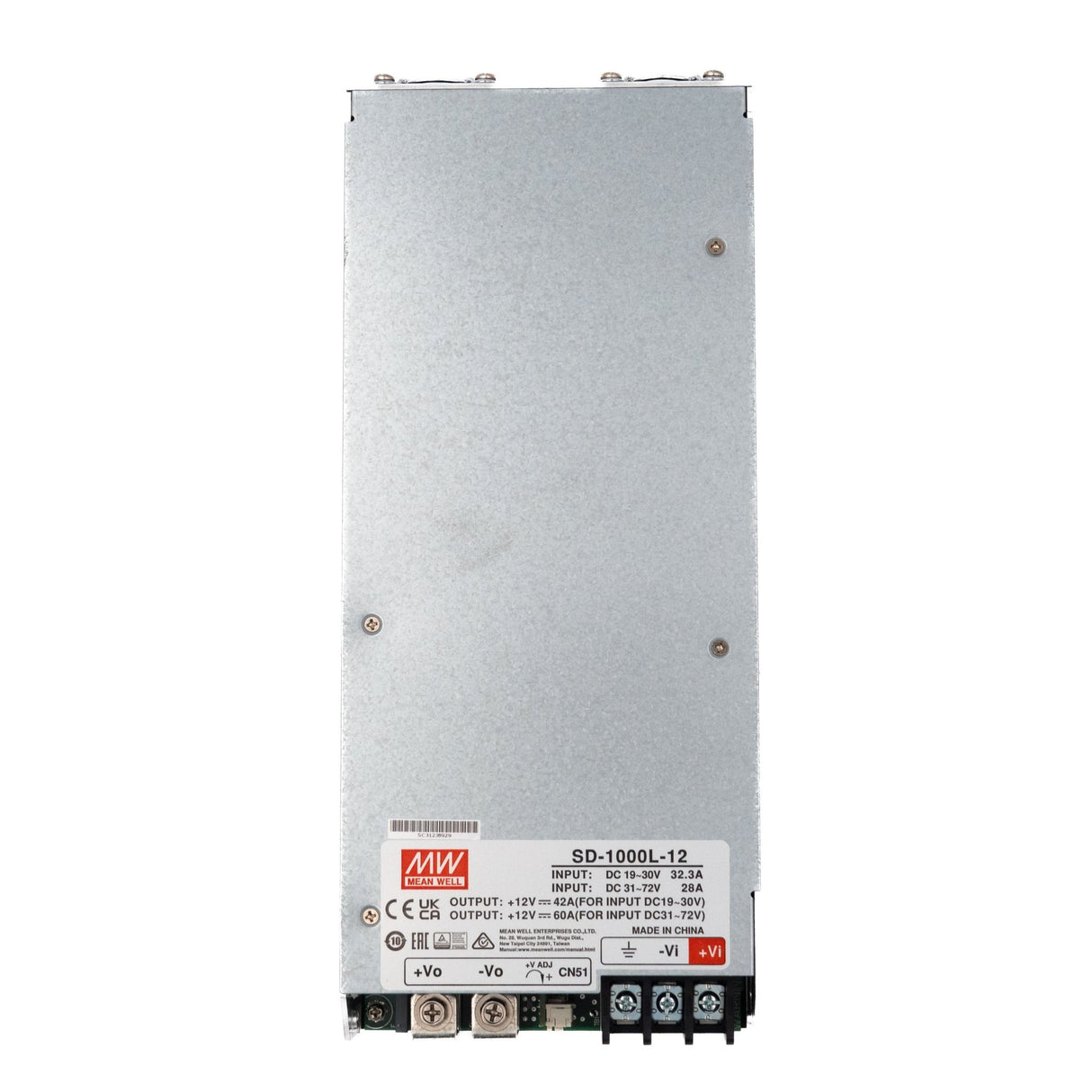

Mean Well SD-1000L-48 DC-DC Converter - 1000W - 19~72V in 48V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000L-48 DC-DC Converter - 1000W - 19~72V in 48V out
The SD-1000L is a 1000W Mean Well power converter (input range: 19~72VDC).
Key Features
- ✓ Input voltage range: 19~72VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 2KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC62368-1 CB EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating1008 Watt
-
Output Voltage48 Volt
-
Rated Current21 Ampere
-
Input Voltage19V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.28 lb
::specification::
Frequently Asked Questions
Can I use the SD-1000L-48 for 48V telecom or network equipment fed from a wide DC input range?
Yes, it provides a constant 48V output and accepts a listed 19-72V input range. With 1008W output power and 21A output current, it is sized for higher-power 48V DC equipment.
Is the SD-1000L-48 a fit for 48V industrial automation systems?
It can be used where the load requires regulated 48V DC at up to 21A. The 1008W rating makes it more appropriate for larger 48V automation loads than for low-power control devices.
Can this model support 48V embedded or communications hardware from vehicle or battery-based DC systems?
It is intended for DC conversion applications that need 48V output from a source within the listed 19-72V range. The converter operates in constant voltage mode and is rated for up to 1008W.
Is the SD-1000L-48 suitable for outdoor enclosures or harsh temperature swings?
The specified operating temperature range is -20°C to +60°C, so use should stay within that range. No IP rating is listed in the product data, so the specs do not identify it as an outdoor-rated converter.
How does the SD-1000L-48 compare with the other SD-1000L versions?
Within the SD-1000L series, the SD-1000L-12 is 720W at 12V and 60A, the SD-1000L-24 is 960W at 24V and 40A, and the SD-1000L-48 is 1008W at 48V and 21A. The choice between them is based on the required output voltage, current, and total power.
