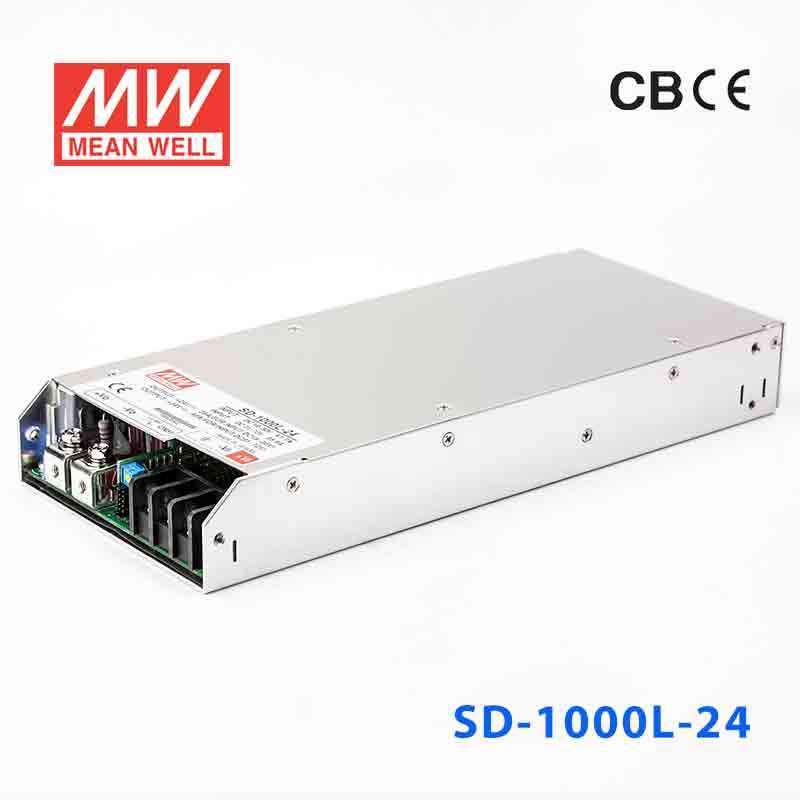

Mean Well SD-1000L-24 DC-DC Converter - 980W - 19~72V in 24V out 40A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-1000L-24 DC-DC Converter - 980W - 19~72V in 24V out 40A
The SD-1000L is a 1000W Mean Well power converter (input range: 19~72VDC).
Key Features
- ✓ Input voltage range: 19~72VDC
- ✓ DC output voltage adjustable ±10%
- ✓ 2KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC62368-1 CB EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage19V~72V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.28 lb
::specification::
Frequently Asked Questions
Can I use the SD-1000L-24 to power a 24V industrial control cabinet from a variable DC source?
Yes, this converter is designed for constant voltage output at 24V and can deliver up to 40A. Its listed input range is 19-72V, which suits DC systems that stay within that range.
Is the SD-1000L-24 suitable for 24V automation loads with higher current demand?
It can support 24V automation equipment that needs up to 960W and up to 40A. That makes it a fit where a stable 24V constant voltage supply is required from a 19-72V input source.
Can this converter be used for 24V embedded or mobile electronics running from a wide input bus?
Yes, the 4:1 wide input range supports sources from 19-72V while maintaining a 24V output. With 960W capacity and 40A output current, it is aimed at higher-power 24V DC loads rather than small electronics.
Is the SD-1000L-24 appropriate for indoor equipment in demanding temperature conditions?
The listed operating temperature range is -20°C to +60°C, so it is intended for equipment that operates within that window. No IP rating is provided in the specs, so the product data does not identify it as an outdoor or washdown-rated unit.
How does the SD-1000L-24 compare with the other SD-1000L models?
Within the SD-1000L group, the SD-1000L-12 is rated at 720W, 12V, 60A, the SD-1000L-24 is rated at 960W, 24V, 40A, and the SD-1000L-48 is rated at 1008W, 48V, 21A. All three are part of the same SD-1000L series, so the main differences are output voltage, output current, and total wattage.
