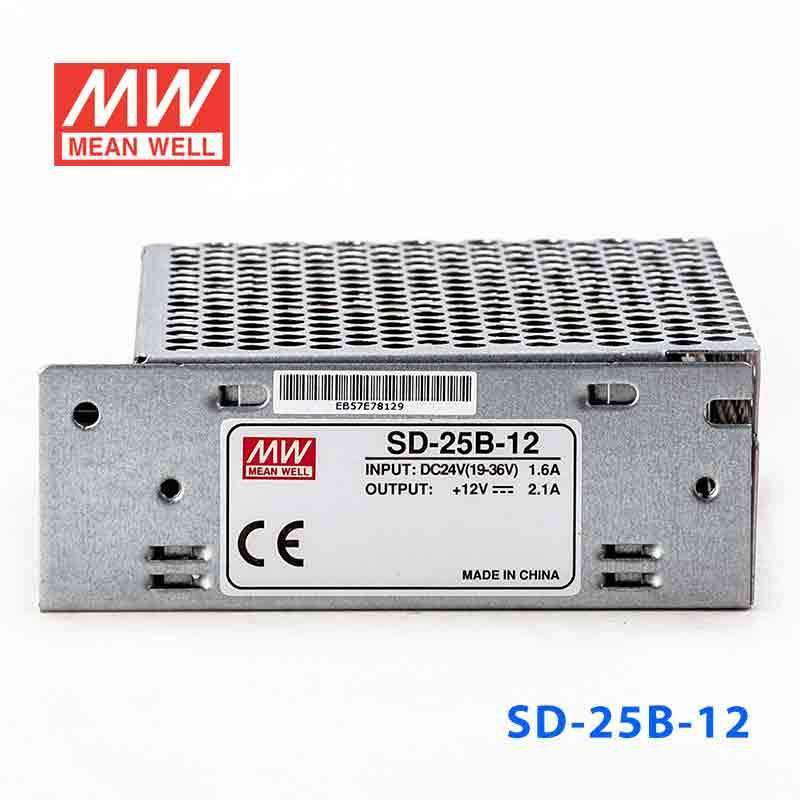

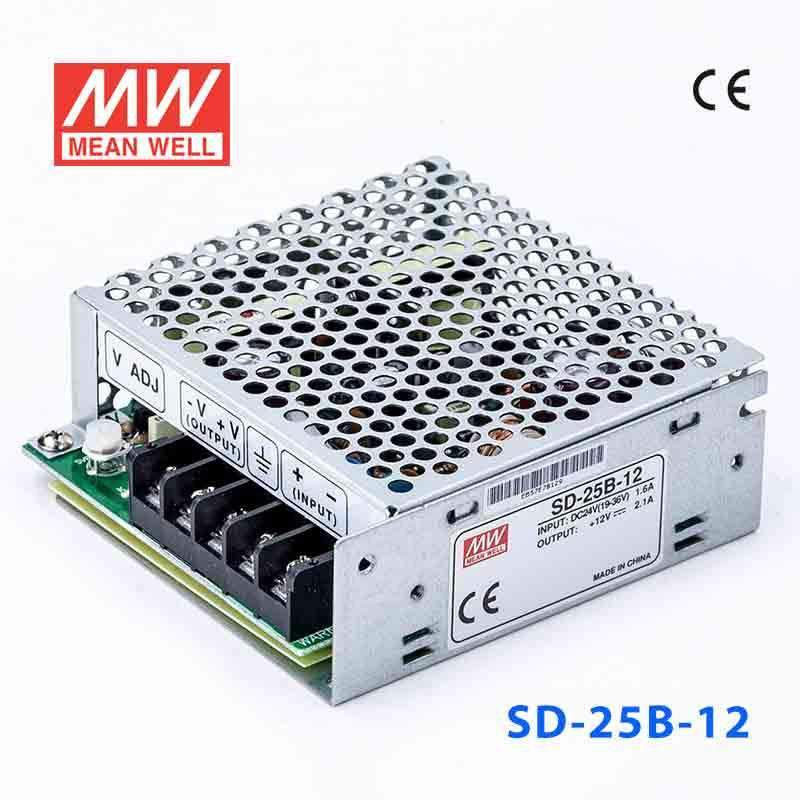

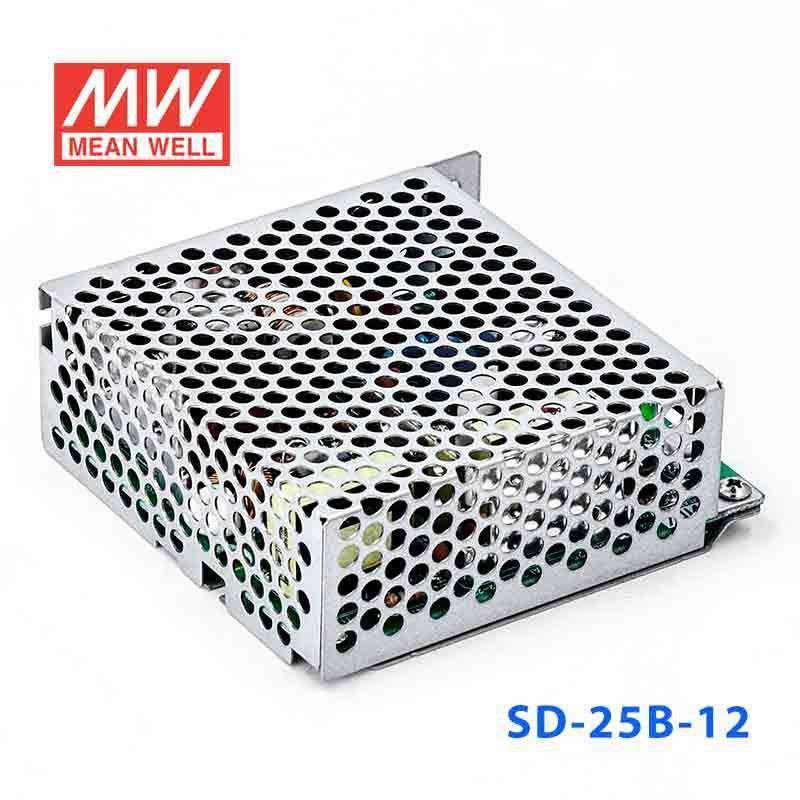

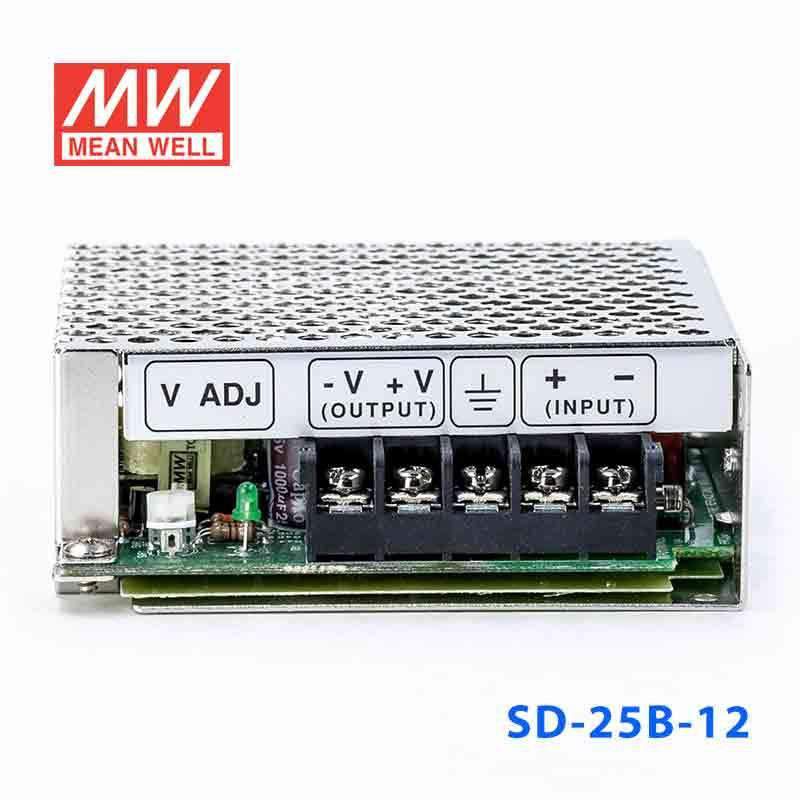

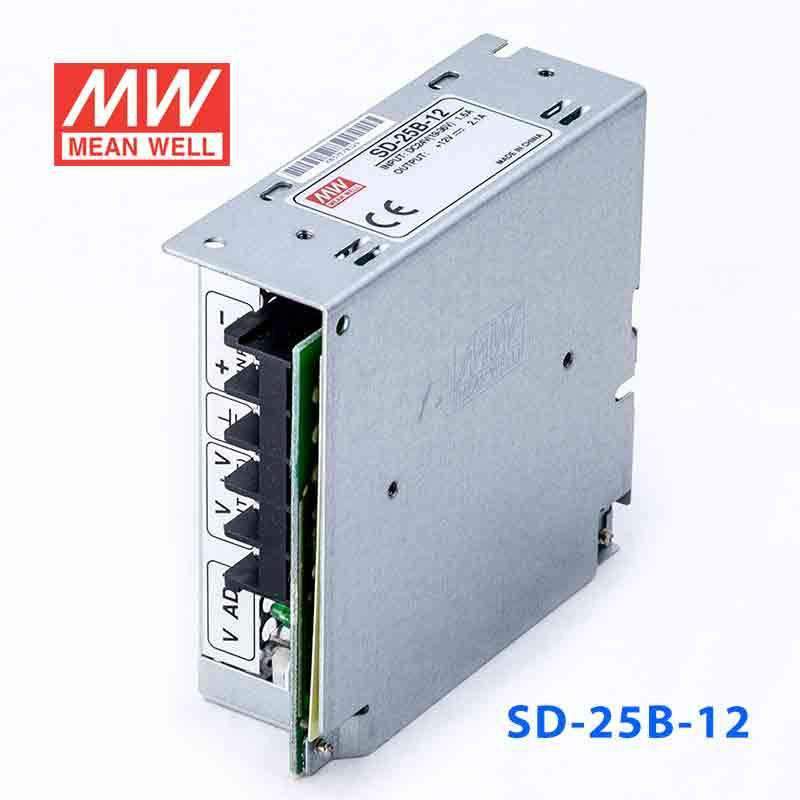

Mean Well SD-25B-12 DC-DC Converter - 25W - 19~36V in 12V out 2.1A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-25B-12 DC-DC Converter - 25W - 19~36V in 12V out 2.1A
The SD-25B is a 25.2W Mean Well DC-DC converter (input: 19~36VDC, operating temperature: -10~+60°C).
Key Features
- ✓ Input voltage: 19~36VDC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 2.1A
- ✓ I/O isolation: 1500V
- ✓ Operating temperature: -10~+60°C
- ✓ Safety certifications: CE, EAC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating25.2 Watt
-
Output Voltage12 Volt
-
Rated Current2.1 Ampere
-
Input Voltage19V~36V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.84 lb
::specification::
Frequently Asked Questions
Can I use the SD-25B-12 in a 24V or 36V industrial system that needs a 12V output rail?
It can fit that use case when the available input is within the listed 19-36VAC range and the 12V load stays within 2.1A and 25.2W. The output mode is constant voltage.
Is the SD-25B-12 suitable for a small 12V automation or control module?
Yes, for small 12V automation or control loads that require constant-voltage output up to 2.1A. Its rated output power is 25.2W.
Can this converter power a 12V embedded device from a higher input range?
It is designed for applications needing 12V output from a listed 19-36VAC input range. The connected 12V device must remain within 2.1A and 25.2W.
How does the SD-25B-12 compare with the other SD-25B models?
Within the SD-25B family, SD-25B-12 is 25.2W at 12V and 2.1A, SD-25B-24 is 26.4W at 24V and 1.1A, and SD-25B-5 is 25W at 5V and 5A. The listed differences are the output voltage, output current, and wattage by model.
Is the SD-25B-12 intended for indoor or outdoor environments?
The provided specs show an operating temperature range of -10°C to +60°C, but they do not include an IP rating. That means the temperature range is stated, while outdoor exposure protection is not.
