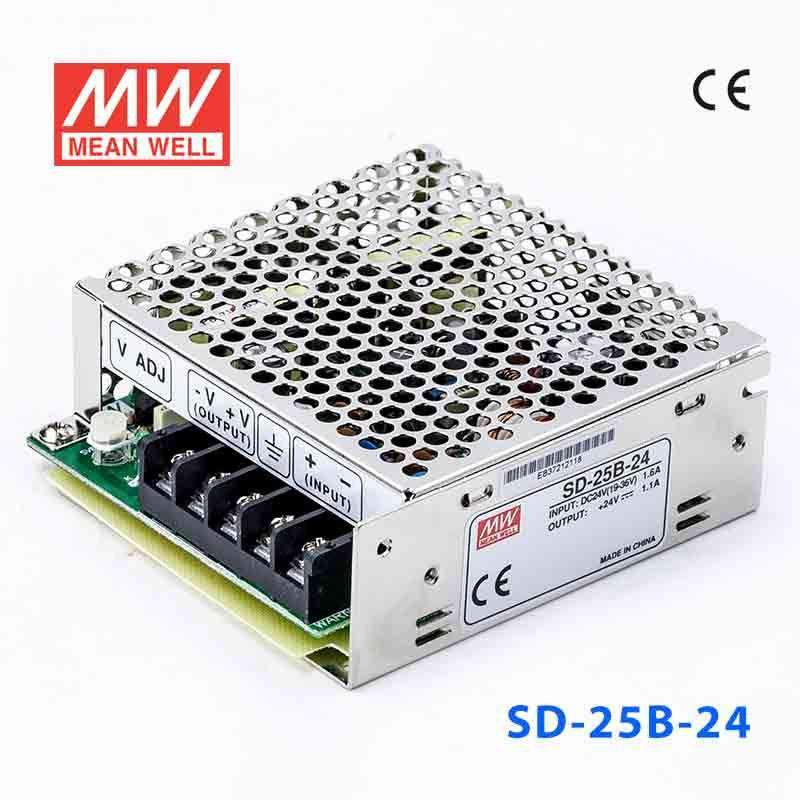

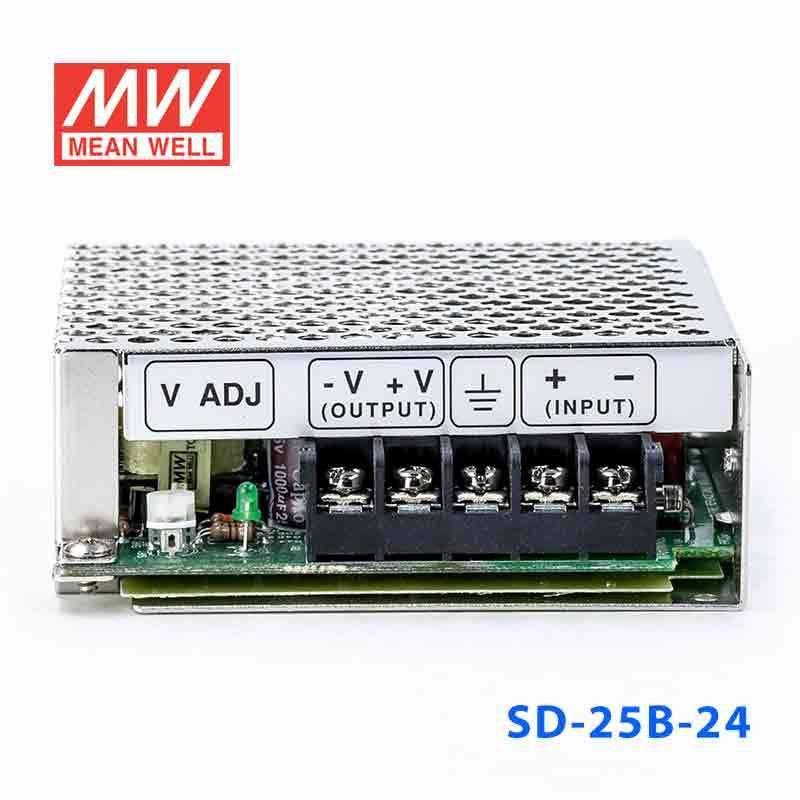

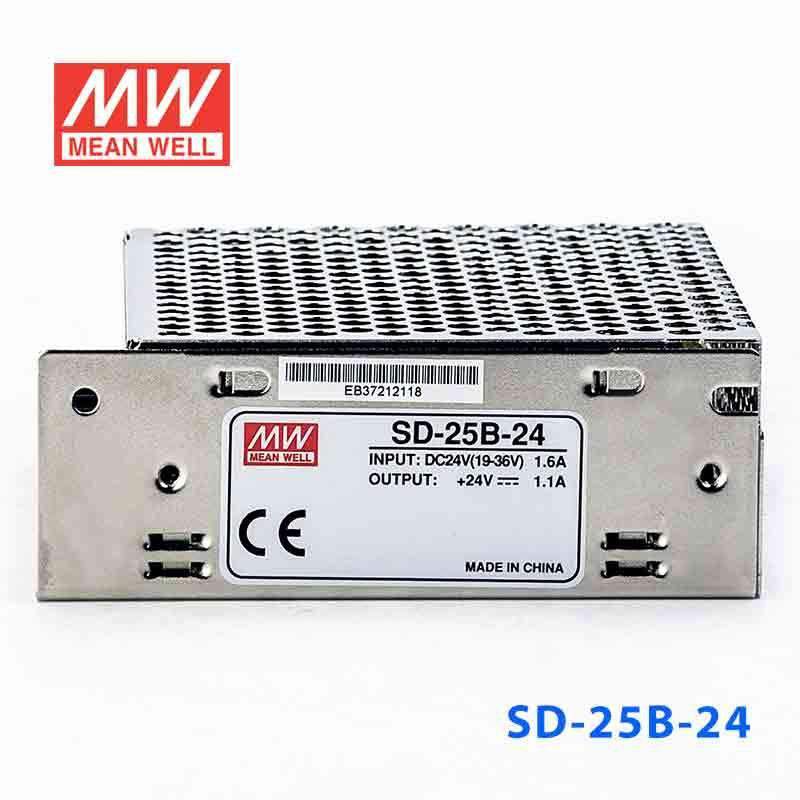

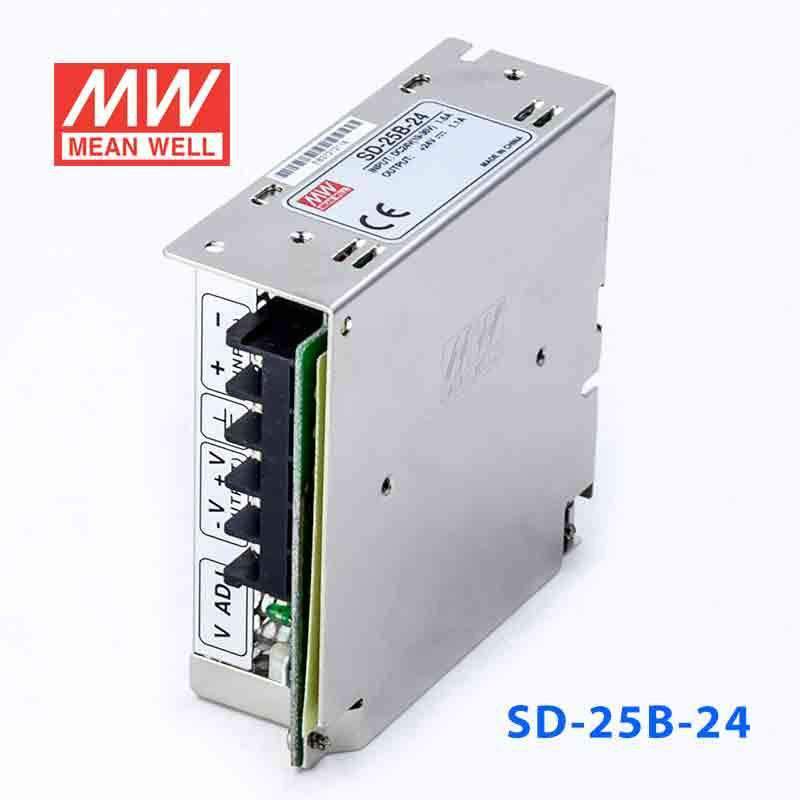

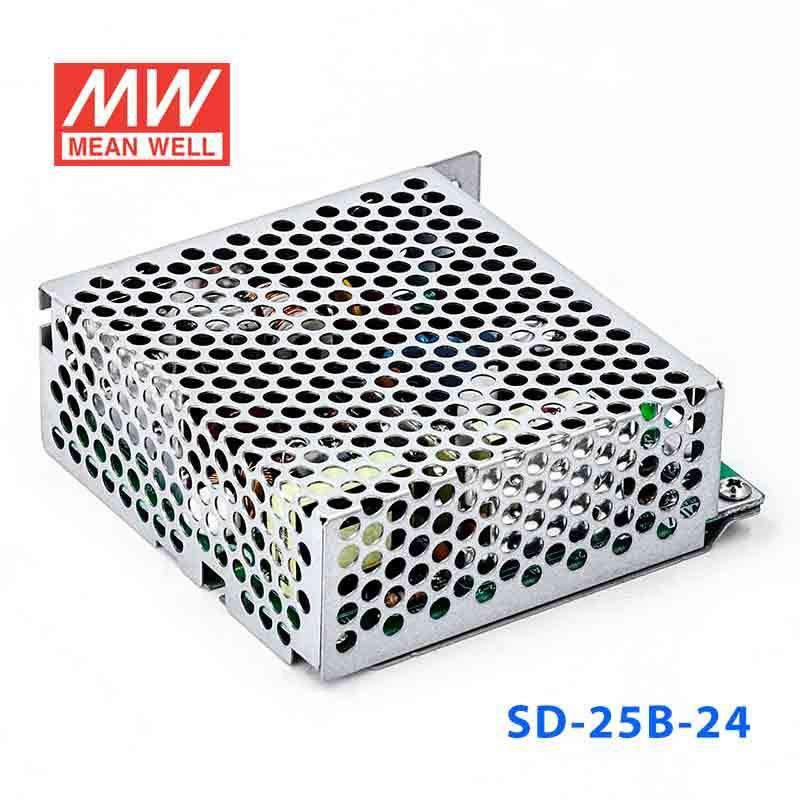

Mean Well SD-25B-24 DC-DC Converter - 25W - 19~36V in 24V out 1.1A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-25B-24 DC-DC Converter - 25W - 19~36V in 24V out 1.1A
The SD-25B is a 26.4W Mean Well DC-DC converter (input: 19~36VDC, operating temperature: -10~+60°C).
Key Features
- ✓ Input voltage: 19~36VDC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 1.1A
- ✓ I/O isolation: 1500V
- ✓ Operating temperature: -10~+60°C
- ✓ Safety certifications: CE, EAC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating26.4 Watt
-
Output Voltage24 Volt
-
Rated Current1.1 Ampere
-
Input Voltage19V~36V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.84 lb
::specification::
Frequently Asked Questions
Can I use the SD-25B-24 to power a small 24V PLC or control module?
It can fit small 24V control electronics that stay within the 24V, 1.1A, and 26.4W output rating. That makes it more appropriate for low-power PLC logic, compact controllers, or light automation loads than for larger 24V devices.
Is the SD-25B-24 suitable for 24V sensors, relays, and interface devices in an automation panel?
Yes, it is intended for constant-voltage 24V output and can support loads up to 1.1A with 26.4W available. It is a better fit for smaller 24V interface devices and relay or sensor circuits than for higher-current 24V equipment.
Can this converter be used in a vehicle or mobile equipment system with a 19-36V source?
It is designed for applications where the input stays within the 19-36V range and the load needs 24V constant voltage output. With 26.4W maximum output power, it suits lower-power embedded or control loads rather than larger 24V accessories.
How does the SD-25B-24 compare with the other SD-25B models?
Within the SD-25B group, the output options are SD-25B-5 at 25W, 5V, 5A; SD-25B-12 at 25.2W, 12V, 2.1A; and SD-25B-24 at 26.4W, 24V, 1.1A. All use the same 19-36V input range and share the same compact series class.
Is the SD-25B-24 suitable for outdoor or harsh-environment use?
No IP rating is listed in the provided specs, so this model should not be treated as an outdoor or washdown unit based on the available data. The stated operating temperature range is -10°C to +60°C, which supports controlled indoor equipment environments within that temperature window.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SD-25B Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-25B-5 DC-DC Converter - 25W - 19~36V in 5V out 5A | 25W | 5V | 5A | Indoor | $24.92 | View |
| Mean Well SD-25B-12 DC-DC Converter - 25W - 19~36V in 12V out 2.1A | 25.2W | 12V | 2.1A | Indoor | $24.92 | View |
