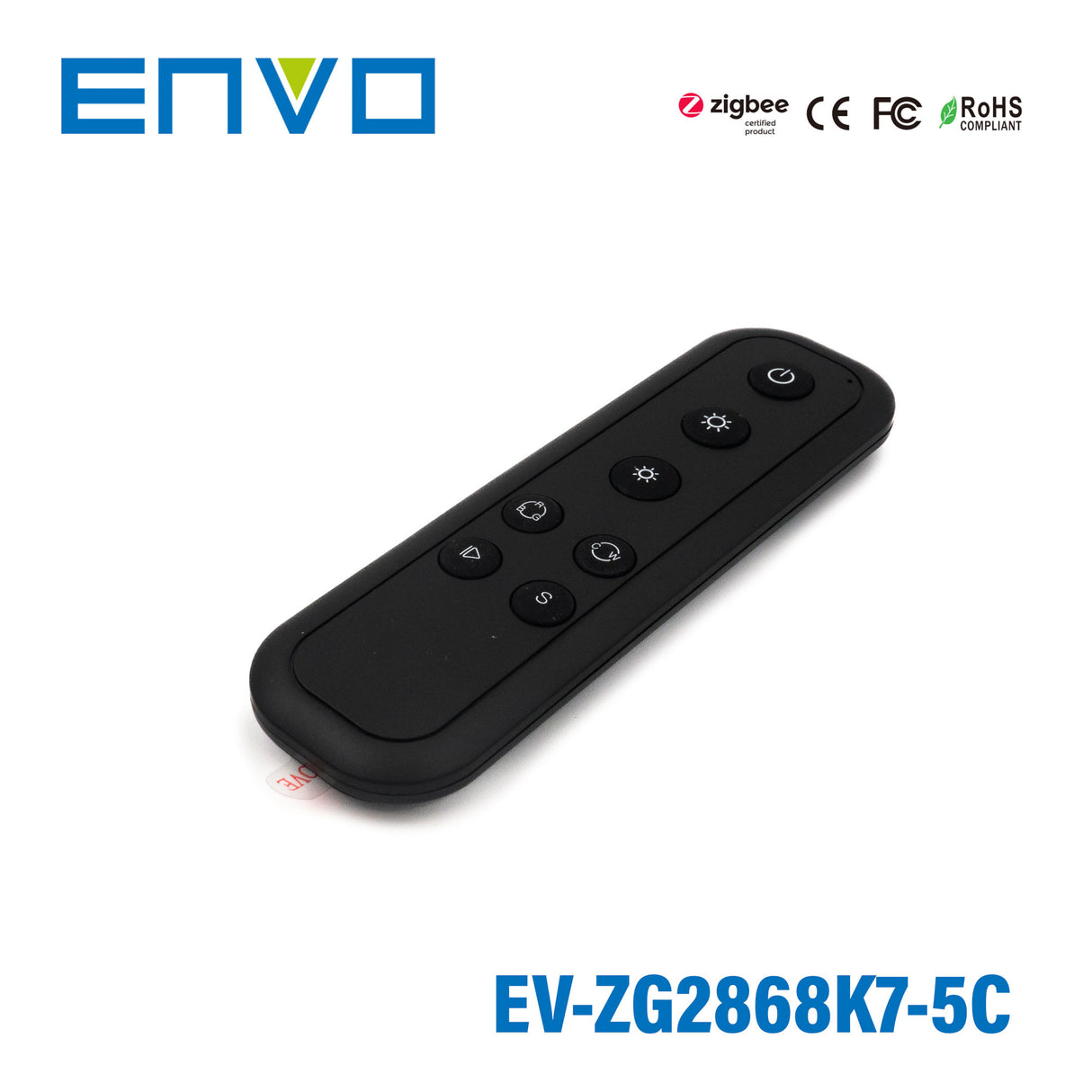

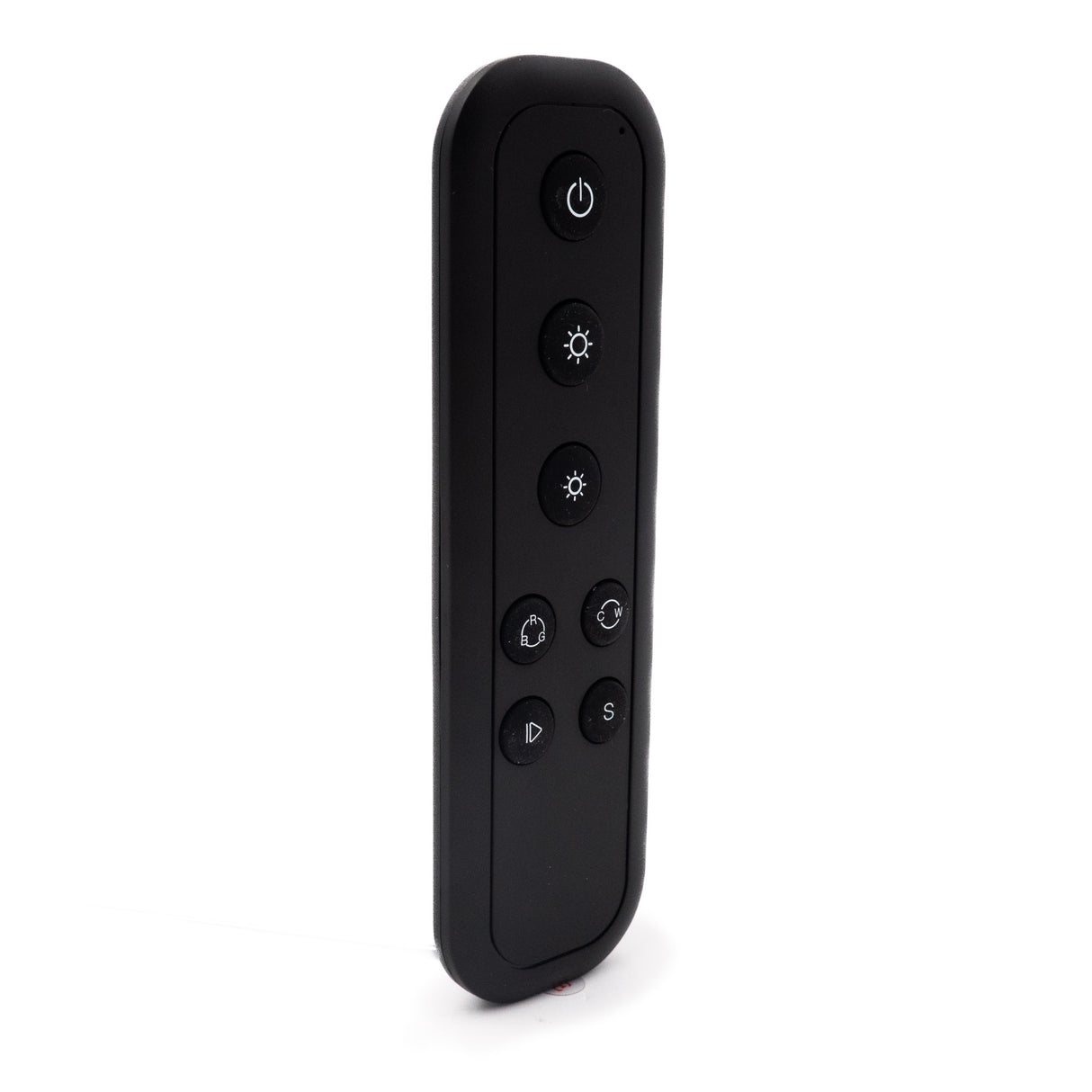

ENVO ZigBee Economic RGB+CCT Color Remote
Features:
- ZigBee RGB+CCT remote based on ZigBee 3.0
- Enables to control RGB+CCT lighting devices
- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices through Touchlink commissioning
- Supports 1 group for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
- This device contains button lithium batteries that shall be stored and disposed properly.
- DO NOT expose the device to moisture.
General Specification
Protocol
ZigBee 3.0
Operation Voltage
3VDC (CR2025 battery)
Transmission Frequency
2.4GHz
Transmission Range (free field)
30m
Dimming Range
0.1%-100%
Waterproof Grade
IP20
Dimension (LxWxH)
137x40x11.5mm
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Output Voltage3 Volt
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length5.39 in
-
Width1.57 in
-
Height0.45 in
::specification::
Frequently Asked Questions
What does the ENVO ZigBee Economic RGB+CCT Color Remote control?
This remote is designed to control ZigBee RGB+CCT lighting devices. It supports color control as well as correlated color temperature adjustment, making it suitable for RGB+CCT lighting applications that need both color changing and tunable white control.
Which ZigBee standard does this remote use?
The ENVO ZigBee Economic RGB+CCT Color Remote is based on ZigBee 3.0. That helps it work with ZigBee lighting ecosystems and compatible universal ZigBee gateway products specified for this standard.
How many lighting devices can this remote manage in one group?
This model supports 1 group for binding up to 30 lighting devices. That makes it a practical option for controlling a single zone or area without needing a more complex multi-group remote.
What is the wireless range of this remote?
The specified transmission range is up to 30 meters in free-field conditions. Actual performance can vary depending on obstacles and the surrounding environment, but the rated range is 30m.
Is this remote suitable for outdoor or damp locations?
No, this remote is rated IP20 and should not be exposed to moisture. It is intended for indoor use in dry environments within an operating temperature range of -20°C to 50°C.
How is this remote powered?
The remote operates on 3VDC using a CR2025 battery. It is battery powered and described as having low power consumption, which supports convenient handheld operation.
Does this remote support gateway-based ZigBee systems?
Yes, it is listed as compatible with universal ZigBee Gateway products. This makes it a good fit for projects that need a handheld ZigBee remote alongside a broader ZigBee lighting control system.
