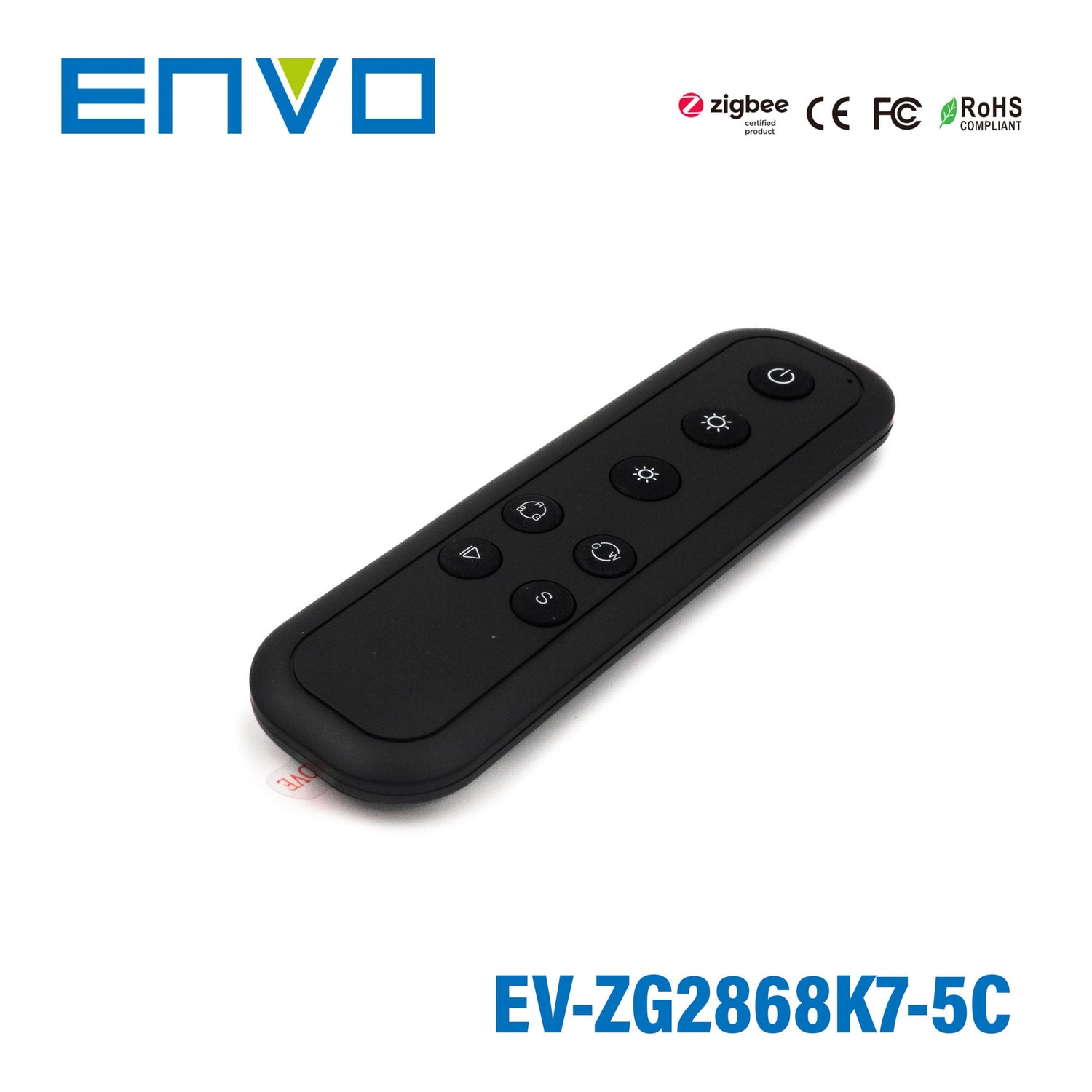

ENVO Zigbee Economic RGB+CCT Colour Remote
Overview
Features
- ZigBee RGB+CCT remote based on ZigBee 3.0
- Enables to control RGB+CCT lighting devices
- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices through Touchlink commissioning
- Supports 1 group for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
Specifications
Product Data
- Protocol
- ZigBee 3.0
- Operation Voltage
- 3VDC (CR2025 battery)
- Transmission Frequency
- 2.4GHz
- Transmission Range (free field)
- 30m
- Dimming Range
- 0.1%-100%
- Dimension
- 137x40x11.5mm
- Waterproof Grade
- IP20
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Test conditions and notes5
- Note: Before the first use, please remove the protective film on the battery.
- Note: a. For adding/removing devices via Touchlink, the distance between the remote and the device must be < 10cm.
- b. Directly TouchLink(both remote and device are not connected to a Zigbee network), please reset them to factory settings first. Each remote can connect to a maximum of 30 devices. If you want to Touchlink with the second device or more devices, please ensure that the first linked device remains powered on.
- c. Touchlink after both remote and device are connected to the Zigbee network. Each device can connect to a maximum of 30 remotes.
- d. To control by both remote and gateway, first add them to the network, and then Touchlink. In this case, the device can be controlled by the linked remote and Zigbee Hub.
Downloads
Datasheet1
FAQ
What does the ENVO ZigBee Economic RGB+CCT Color Remote control?
This remote is designed to control ZigBee RGB+CCT lighting devices. It supports color control as well as correlated color temperature adjustment, making it suitable for RGB+CCT lighting applications that need both color changing and tunable white control.
Which ZigBee standard does this remote use?
The ENVO ZigBee Economic RGB+CCT Color Remote is based on ZigBee 3.0. That helps it work with ZigBee lighting ecosystems and compatible universal ZigBee gateway products specified for this standard.
How many lighting devices can this remote manage in one group?
This model supports 1 group for binding up to 30 lighting devices. That makes it a practical option for controlling a single zone or area without needing a more complex multi-group remote.
What is the wireless range of this remote?
The specified transmission range is up to 30 meters in free-field conditions. Actual performance can vary depending on obstacles and the surrounding environment, but the rated range is 30m.
How is this remote powered?
The remote operates on 3VDC using a CR2025 battery. It is battery powered and designed with low power consumption, which supports convenient handheld operation.
Does this remote support gateway-based ZigBee systems?
Yes, it is listed as compatible with universal ZigBee Gateway products. This makes it a good fit for projects that need a handheld ZigBee remote alongside a broader ZigBee lighting control system.
