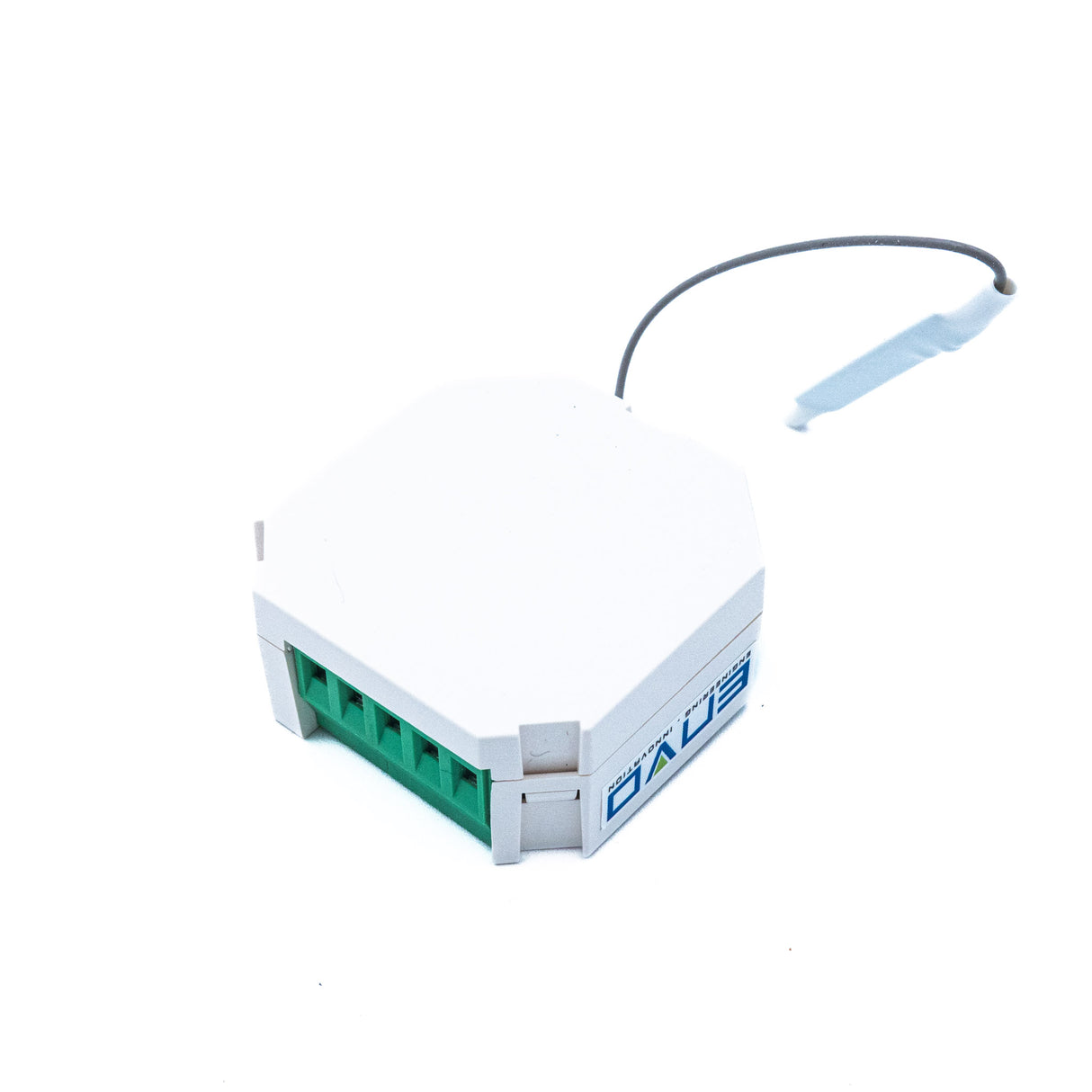

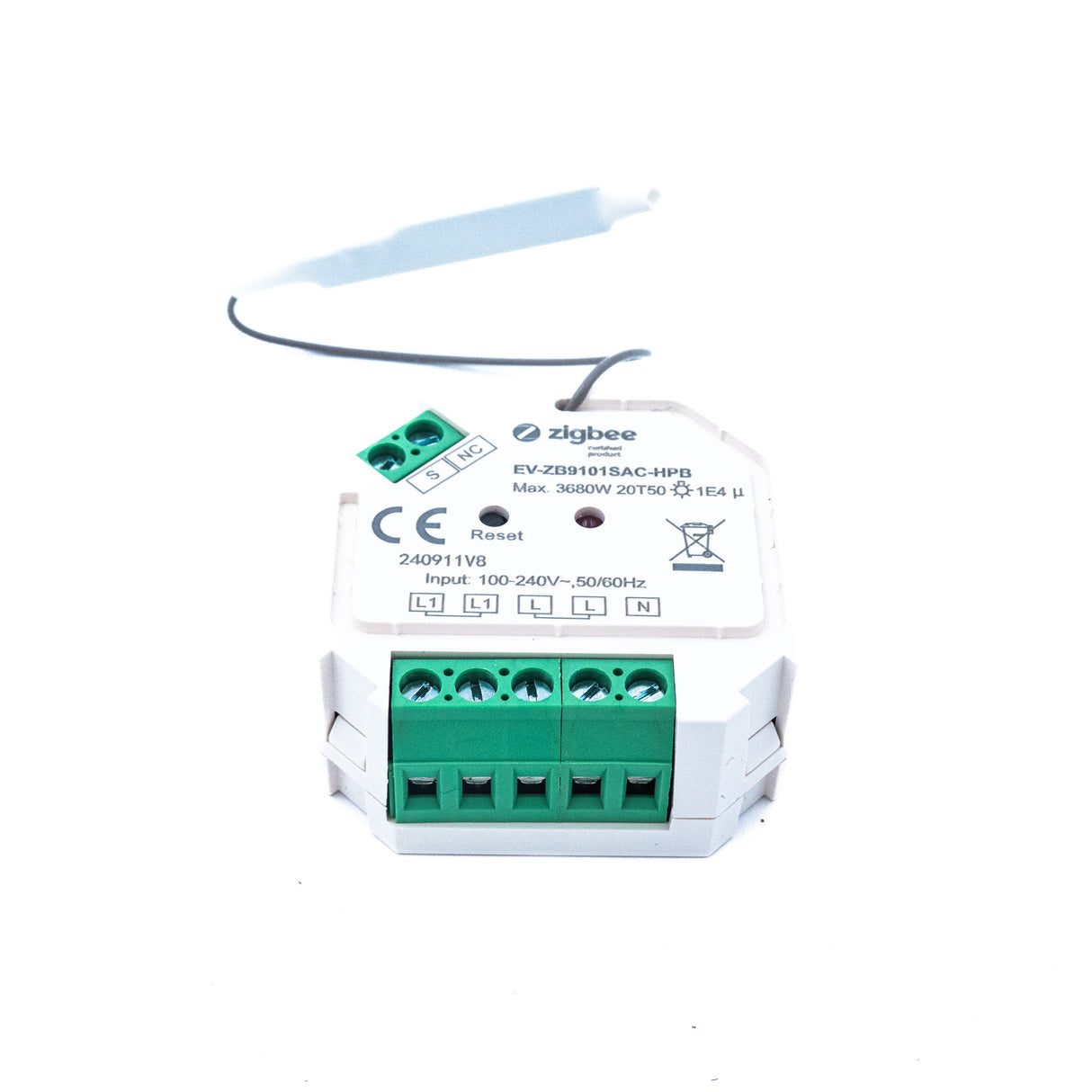

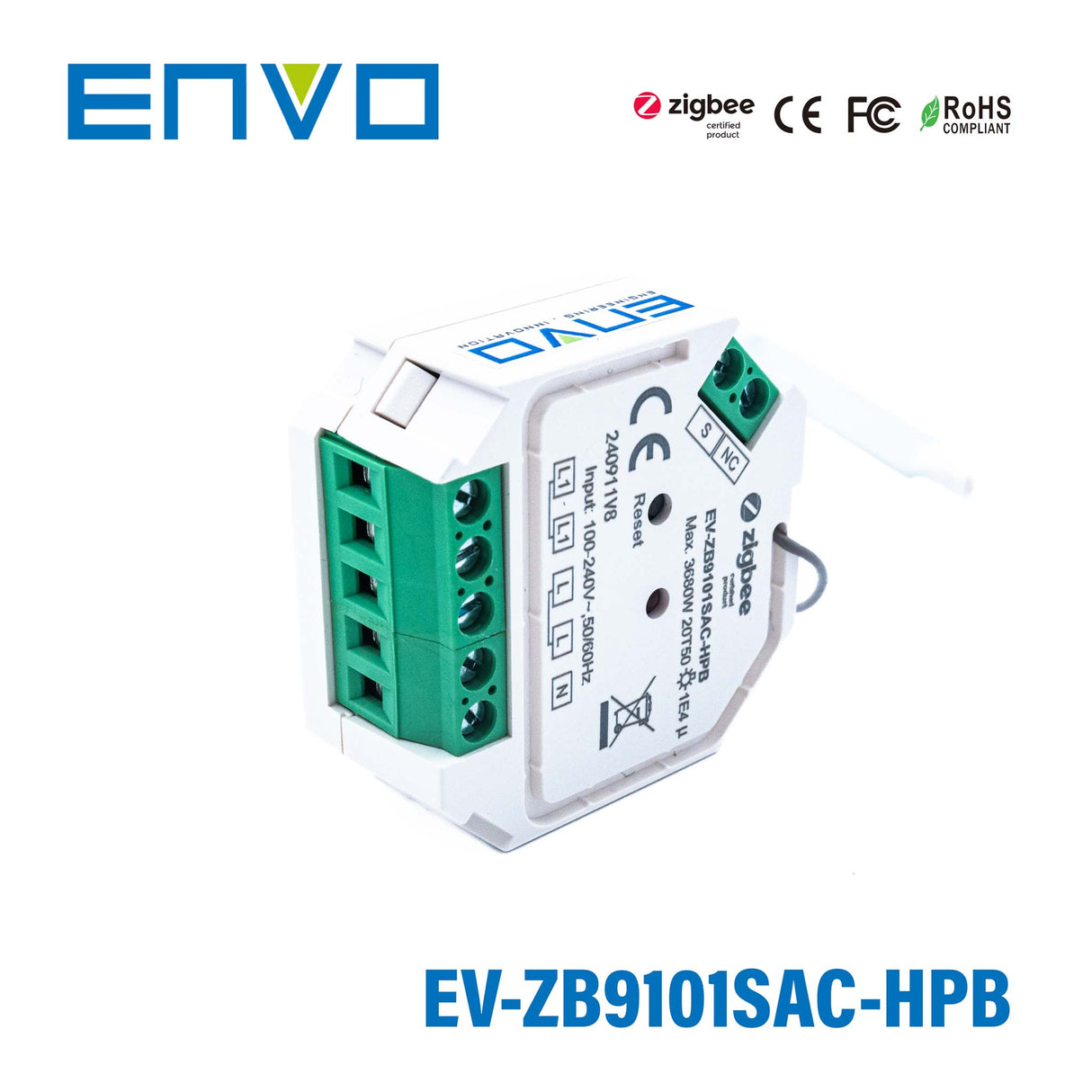

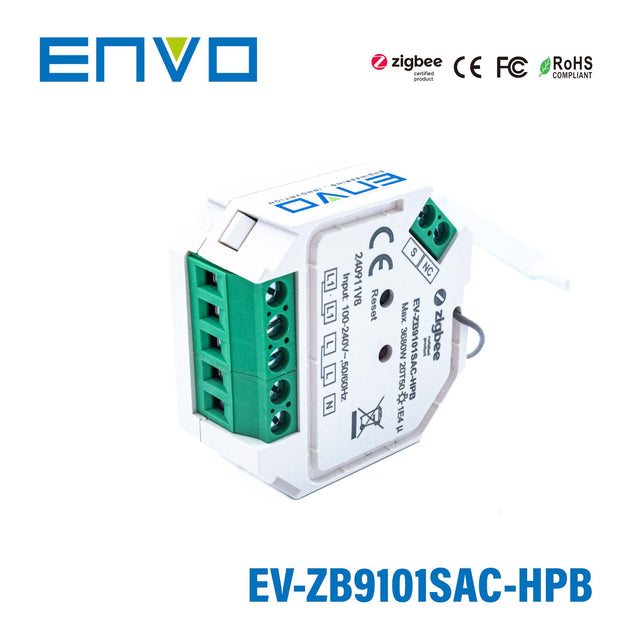

ENVO ZigBee In-wall Switch - On/Off Control, 16A
Features:
- ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
- 100-240VAC Wide Input and Output Voltage
- Supports resistive loads and capacitive loads
- 1 Channel Output, Up to 400W
- Input and Output with Screw Terminals, Safe and Reliable
- Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
- Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Can be controlled by universal 8-230V input single wire push switch
- Mini Size, Easy to be Installed into a standard 86*86mm wall box
- Radio Frequency : 2.4GHz
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
100-240VAC
Output Current
100-240VAC
Output Current
16A max
Input Type
Constant voltage
Dimension (LxWxH)
45.5x45x20.3mm
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating3680 Watt
-
Output Voltage220 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length1.79 in
-
Width1.77 in
-
Height0.8 in
::specification::
Frequently Asked Questions
What is the ENVO ZigBee In-wall Switch - On/Off Control, 16A used for?
This model is a ZigBee 3.0 in-wall controller for switching compatible AC lighting loads on and off. It is designed for use with triac dimmable LED lights or LED drivers and supports resistive and capacitive loads. Its compact size also makes it suitable for space-limited control applications.
What electrical capacity does this switch support?
The EV-ZB9101SAC-HPB operates on 100-240VAC and is rated for up to 16A maximum load. The product data also lists a 3680W power rating. This makes it appropriate for higher-capacity AC lighting control within its stated voltage and current limits.
Is this model compatible with standard ZigBee systems?
Yes, this switch uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway products. It also supports Touchlink commissioning, find-and-bind mode, and ZigBee Green Power remote binding. Those features make it suitable for integration into a wide range of ZigBee-based lighting control environments.
Can this switch work without a ZigBee coordinator?
Yes, this model can directly pair with a compatible ZigBee remote through Touchlink without requiring a coordinator. It also supports a self-forming ZigBee network, which adds flexibility for standalone or smaller control deployments. That can be useful where a full gateway-based system is not required.
What types of loads does this model support?
The EV-ZB9101SAC-HPB supports both resistive and capacitive loads. It is intended for controlling connected triac dimmable LED lighting or LED drivers. This gives it broader application coverage than products limited to only one load type.
What environmental conditions is this switch rated for?
This model is rated for operation from -20°C to 50°C. It has an IP20 rating, so it is intended for indoor use where it is protected from moisture exposure. The product information specifically states that it should not be exposed to moisture.
What are the physical dimensions of this in-wall ZigBee switch?
The listed dimensions are 45.5 x 45 x 20.3 mm. Its mini-size form factor is intended for installation in a standard 86 x 86 mm wall box. That compact footprint can help when product size matters in retrofit or space-constrained projects.
