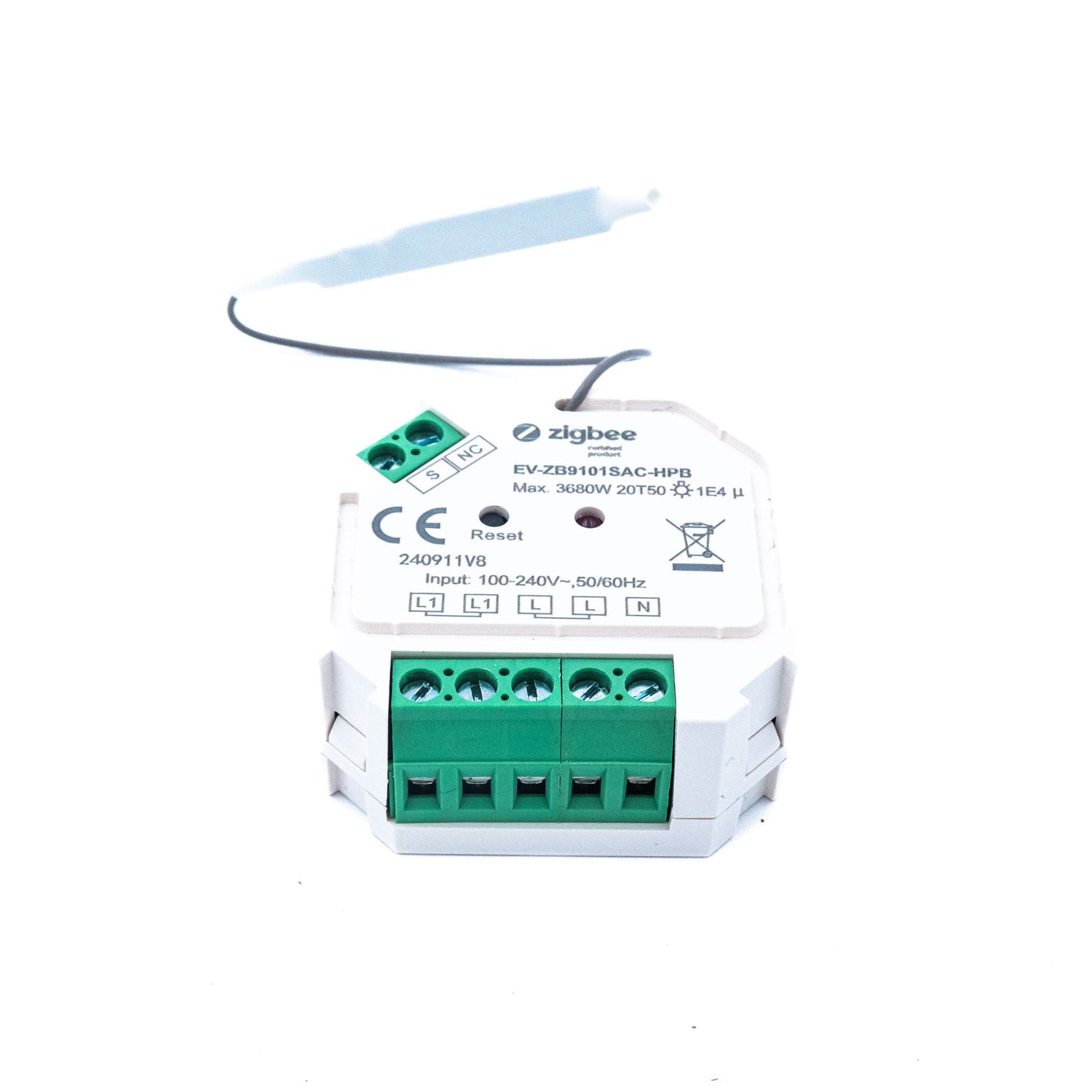

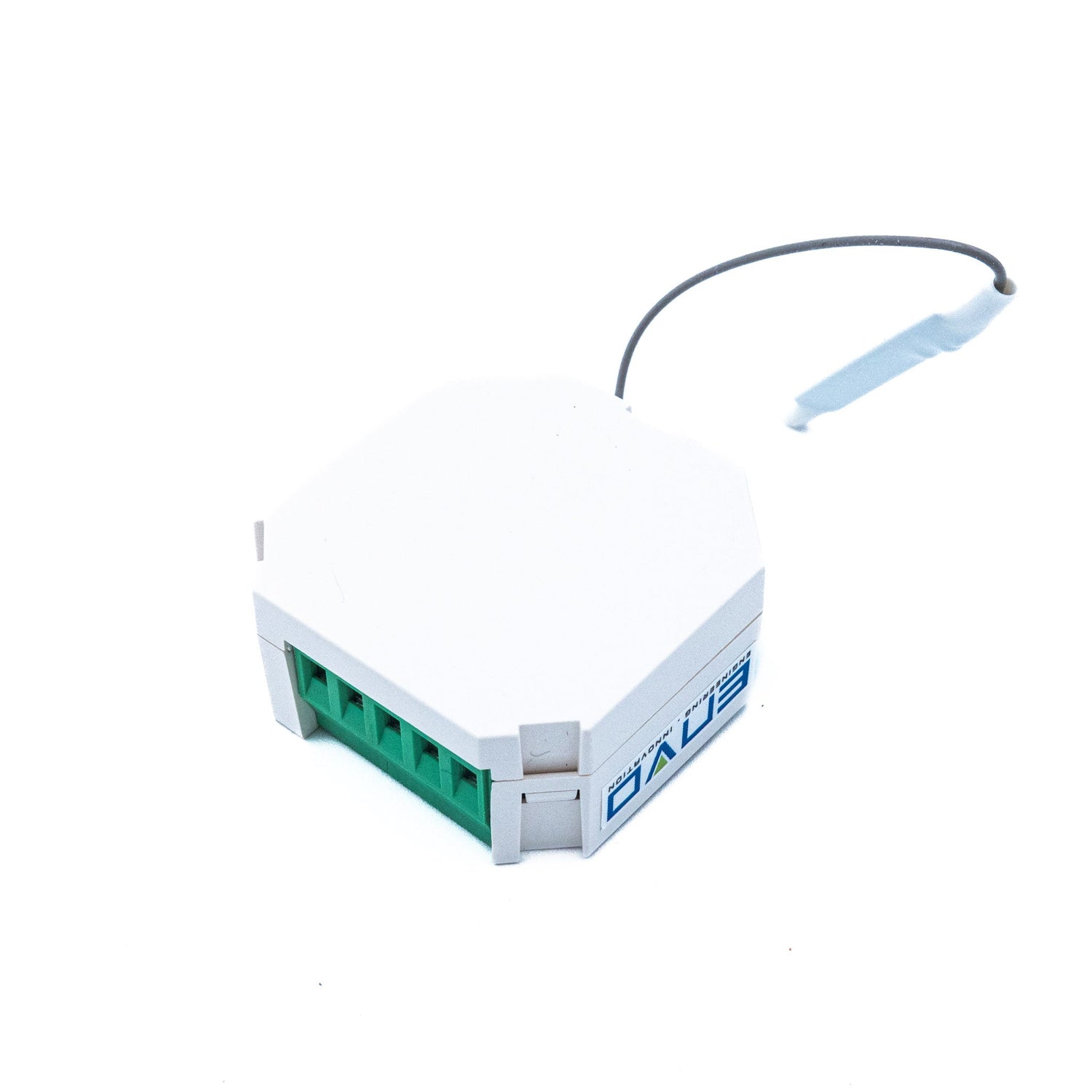

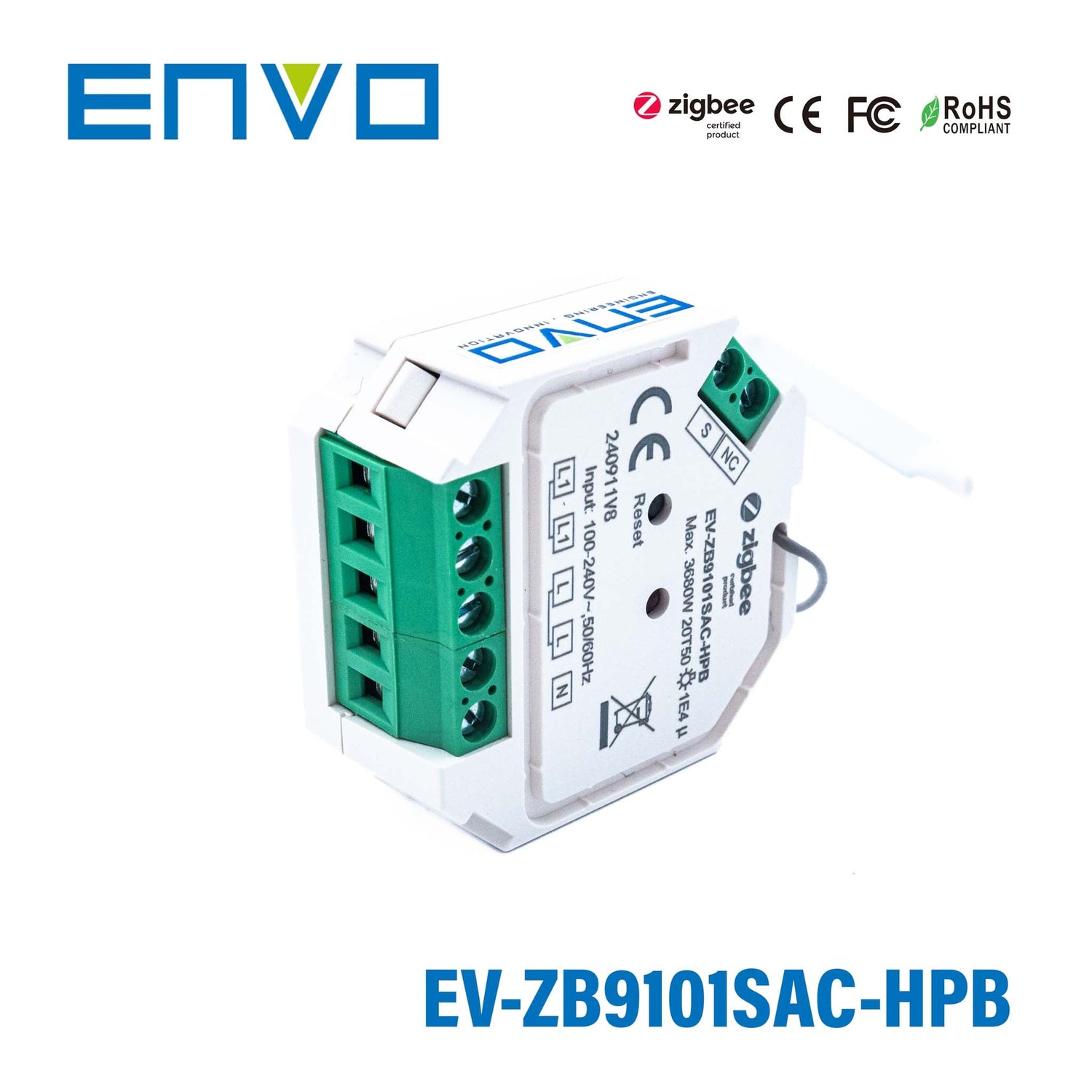

ENVO ZigBee In-wall Switch - On/Off Control, 16A

This model is a ZigBee 3.0 in-wall controller for switching compatible AC lighting loads on and off. It is designed for use with LED lamps with transformers, LED drivers, incandescent lighting, and electrical appliances. Its compact size also makes it suitable for space-limited control applications.

The EV-ZB9101SAC-HPB operates on 100-240VAC and is rated for up to 16A maximum load. The product data also lists a 3680W power rating. This makes it appropriate for higher-capacity AC lighting control within its stated voltage and current limits.

Yes, this switch uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway products. It also supports Touchlink commissioning, find-and-bind mode, and ZigBee Green Power remote binding. Those features make it suitable for integration into a wide range of ZigBee-based lighting control environments.

Yes, this model can directly pair with a compatible ZigBee remote through Touchlink without requiring a coordinator. It also supports a self-forming ZigBee network, which adds flexibility for standalone or smaller control deployments. That can be useful where a full gateway-based system is not required.

The EV-ZB9101SAC-HPB supports both resistive and capacitive loads. It is intended for controlling connected LED lamps with transformers, LED drivers, incandescent lighting, and electrical appliances. This gives it broader application coverage than products limited to only one load type.

This switch has an IP20 rating, so it is intended for indoor use where it is protected from moisture exposure. The product information specifically states that it should not be exposed to moisture.

The listed dimensions are 45.5 x 45 x 20.3 mm. Its mini-size form factor is intended for installation in a standard size wall box. That compact footprint can help when product size matters in retrofit or space-constrained projects.
