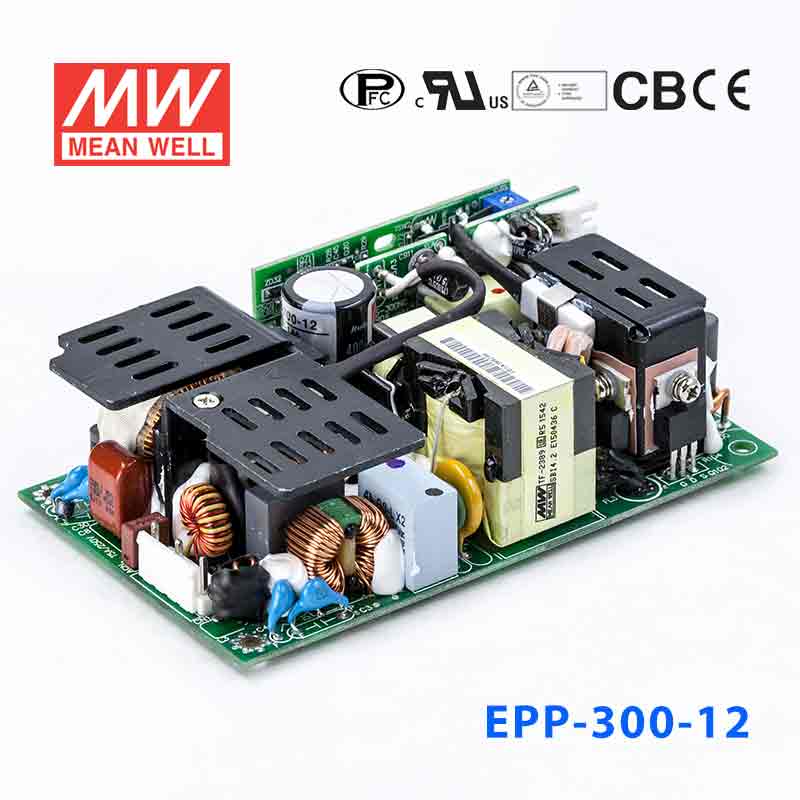

Mean Well EPP-300-12 Power Supply 200W 12V
No load power consumption under 0.5W by PS-ON control
<2mA/240VAC
Key Features
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓High efficiency up to 93%
- ✓✓Withstand 300VAC surge input for 6 secondsNo load power consumption<0.5W5"x3" compact sizeHigh efficiency up to 94%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓Cooling by free air convection for 200W and 300W with 20.5 CFM forced airWith power good and fail signal outputBuilt-in remote sense function
- ✓✓No load power consumption under 0.5W by PS-ON control
- ✓✓Standby 5V@1A with fan, @ 0.6A without fan
- ✓✓Operating altitude up to 5000 meters
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating200 Watt
-
Output Voltage12 Volt
-
Rated Current16.67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.38 in
-
Weight0.82 lb
::specification::
Frequently Asked Questions
Can I use the EPP-300-12 for a 12V CCTV or security system power feed?
Yes, if the system needs a constant 12Vdc supply and the total load stays within 200W and 16.67A. That output level is often useful where several 12V security components share one supply budget.
Is the EPP-300-12 a fit for 12V industrial electronics or embedded controllers?
It is suitable for 12V embedded or industrial devices that require constant-voltage output and draw no more than 16.67A. The unit also accepts 90-264VAC input, which helps when AC source voltage varies by site.
Can this model power a 12V automation accessory bank or low-voltage control load?
It can, as long as the combined 12Vdc demand does not exceed 200W or 16.67A. Buyers should size the connected load against both the voltage and current limits, not wattage alone.
Will the EPP-300-12 work in cold or hot indoor equipment environments?
The specified operating range is -30 degrees C to +70 degrees C, so it is rated across a wide temperature window. No IP rating is provided, so the listed specs do not confirm suitability for exposed outdoor or wet environments.
How does the EPP-300-12 compare with other 12V EPP series models?
The listed 12V options are EPP-100-12 at 75.6W and 6.3A, EPP-120S-12 at 114W and 9.5A, EPP-150-12 at 100.8W and 8.4A, EPP-200-12 at 140.4W and 11.7A, this EPP-300-12 at 200W and 16.67A, EPP-400-12 at 249.6W and 20.8A, and EPP-500-12 at 320.4W and 26.7A. That makes this model a mid-to-upper power 12V option in the family rather than an entry-level or maximum-output version.
