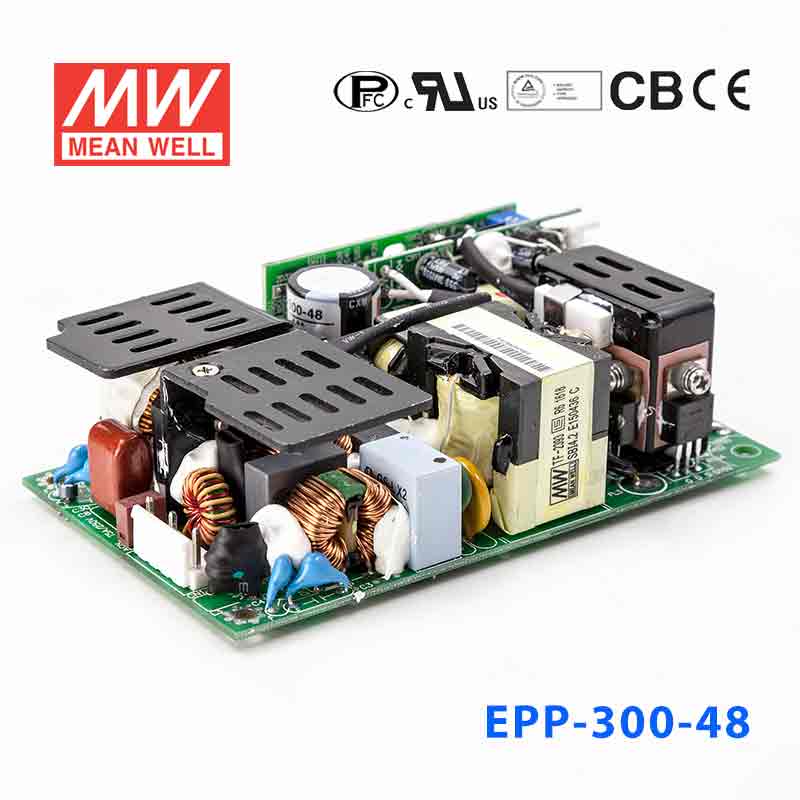

Mean Well EPP-300-48 Power Supply 200W 48V

Name: Mean Well EPP-300-48 Power Supply 200W 48V
Brand: Mean Well
SKU: EPP-300-48
Price: 62.92 USD
Availability: InStock

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-300-48

$62.92 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 93%

Withstand 300VAC surge input for 6 seconds
No load power consumption<0.5W
5"x3" compact size
High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

Cooling by free air convection for 200W and 300W with 20.5 CFM forced air
With power good and fail signal output
Built-in remote sense function

No load power consumption under 0.5W by PS-ON control

Standby 5V@1A with fan, @ 0.6A without fan

Operating altitude up to 5000 meters

3 years warranty

General Specification

AC input voltage range	90 ~ 264VAC; 127 ~ 370VDC
AC inrush current	COLD START 40A/115VAC
Leakage current	<2mA/240VAC
Overload protection	105 ~ 135% rated output power
Over-voltage protection	112%~125% rated output voltage
Setup, rise, hold up time	2500ms, 30ms, 13ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	127x76.2x35
Packing	36pcs / 14.3kg

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

200.2 Watt
Output Voltage

48 Volt
Rated Current

4.17 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

5 in
Width

3 in
Height

1.38 in
Weight

0.82 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 93%

Withstand 300VAC surge input for 6 seconds
No load power consumption<0.5W
5"x3" compact size
High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

Cooling by free air convection for 200W and 300W with 20.5 CFM forced air
With power good and fail signal output
Built-in remote sense function

No load power consumption under 0.5W by PS-ON control

Standby 5V@1A with fan, @ 0.6A without fan

Operating altitude up to 5000 meters

3 years warranty

General Specification

AC input voltage range

90 ~ 264VAC; 127 ~ 370VDC

AC inrush current

COLD START 40A/115VAC

Leakage current

<2mA/240VAC

Overload protection

105 ~ 135% rated output power

Over-voltage protection

112%~125% rated output voltage

Setup, rise, hold up time

2500ms, 30ms, 13ms

Withstand voltage

I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC

Working temperature

-30~+70°C

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Safety standards

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

EMC standards

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Connection

I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH

Dimension (LxWxH)

127x76.2x35

Packing

36pcs / 14.3kg
