Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

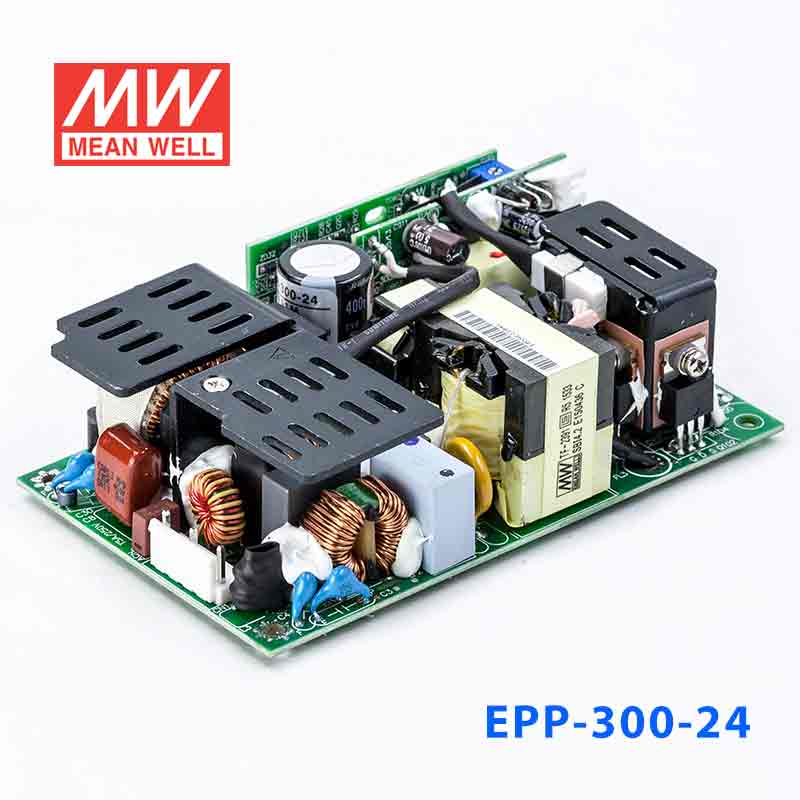

Mean Well EPP-300-24 Power Supply 200W 24V 8.33A
The EPP-300 is a 199.9W Mean Well open-frame power supply (input: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 8.33A
- ✓ Operating temperature: -30~+70°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating199.9 Watt
-
Output Voltage24 Volt
-
Rated Current8.33 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.38 in
-
Weight0.82 lb
::specification::
Frequently Asked Questions
Can I use the EPP-300-24 for a 24V PLC, sensor, or industrial I/O system?
Yes, if the system requires a constant 24Vdc source and the total load does not exceed 199.9W or 8.33A. That makes it relevant for many 24V automation loads that need more capacity than smaller open-frame supplies provide.
Is this a good power supply for 24V embedded computers or industrial communication gear?
It can be, provided the equipment is specified for regulated 24V constant-voltage input and stays within the 8.33A output limit. The unit's 90-264VAC input also supports operation across a broad range of AC mains conditions.
Can the EPP-300-24 power a 24V control cabinet accessory group?
It is suitable for grouped 24Vdc loads when the combined demand remains at or below 199.9W and 8.33A. Buyers should confirm the full cabinet load against both current and wattage to avoid oversizing assumptions.
Can this model be used in outdoor or unprotected environments?
Its operating temperature range is listed as -30 degrees C to +70 degrees C, so the temperature spec is broad. No IP rating is provided in the product data, so the specs do not confirm suitability for direct outdoor exposure, rain, or washdown areas.
How does the EPP-300-24 compare with other 24V models in the same series?
The listed 24V options are EPP-100-24 at 76.8W and 3.2A, EPP-120S-24 at 120W and 5A, EPP-150-24 at 100.8W and 4.2A, EPP-200-24 at 141.6W and 5.9A, this EPP-300-24 at 199.9W and 8.33A, EPP-400-24 at 252W and 10.5A, and EPP-500-24 at 321W and 13.4A. This places it in the middle of the 24V range, above the 141.6W model and below the 252W and 321W versions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-300 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-300-48 Power Supply 200W 48V 4.17A | 200.2W | 48V | 4.17A | Indoor | $64.48 | View |
| Mean Well EPP-300-27 Power Supply 200W 27V 7.4A | 199.8W | 27V | 7.4A | Indoor | $65.64 | View |
| Mean Well EPP-300-15 Power Supply 200W 15V 13.33A | 200W | 15V | 13.33A | Indoor | $65.76 | View |
| Mean Well EPP-300-12 Power Supply 200W 12V 16.67A | 200W | 12V | 16.67A | Indoor | $60.28 | View |
