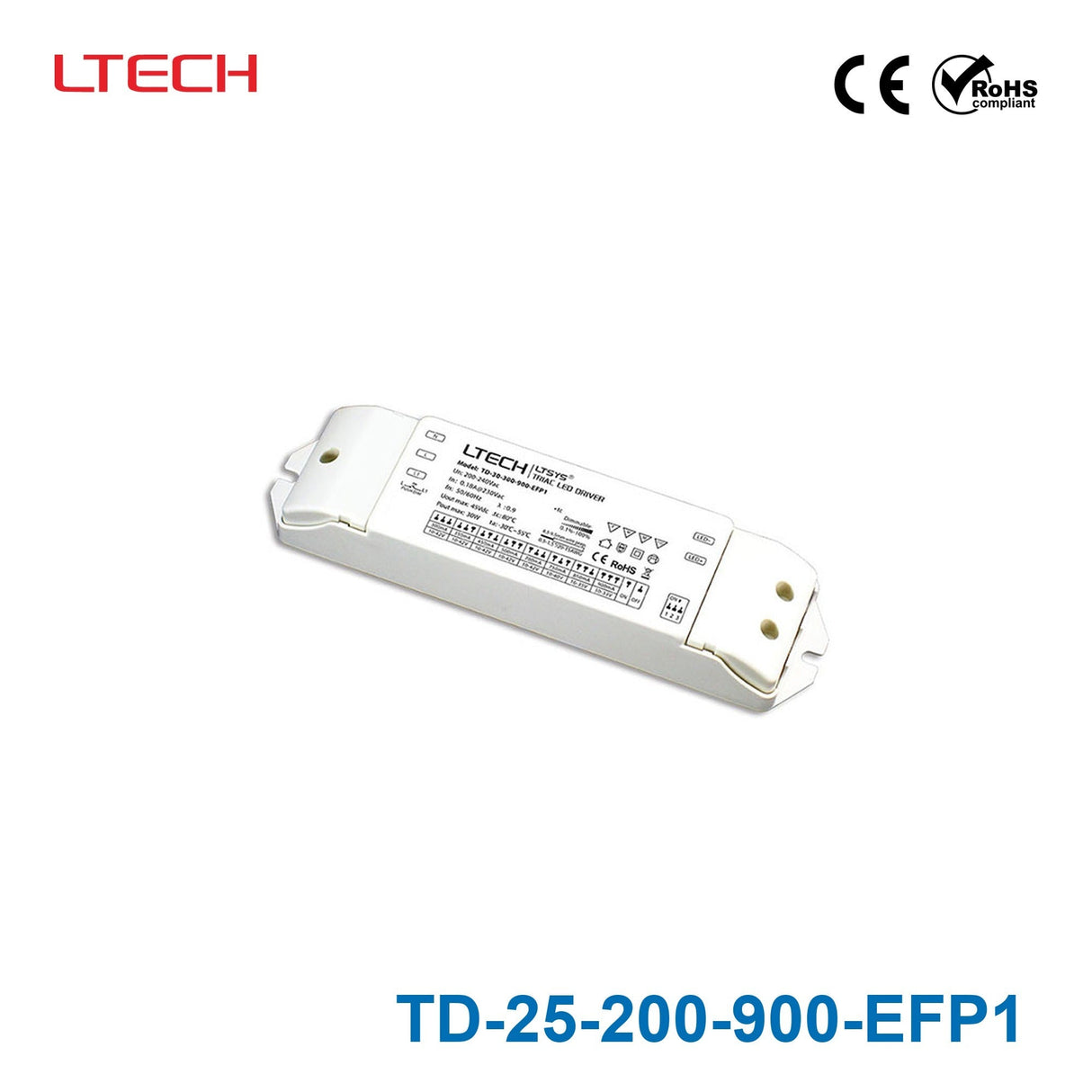

LTECH TD-25-200-900-EFP1 25W 200mA ~ 900mA CC Triac LED Driver - Se...
- Support Leading edge (Triac)
- Trailing edge (ELV) and Push Dimmer.
- Built-in SCM
- dimming curve and smoothing time can be customized.
- T-PWM digital dimming
- present a perfect visual experience.
- Dimming range: 0~100%
- dimming depth: Max. 0.01%.
- Flicker-free (IEEE 1789)
- achieve the level of exemption assessment.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Over load / Over-heat / Short circuit protection
- recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating25 Watt
-
Output Voltage45 Volt
-
Rated Current0.2 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCE,ROHS,SELV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.89 in
-
Height1.18 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What type of LED applications is the LTECH TD-25-200-900-EFP1 designed for?
This model is a constant-current LED driver intended for power LED applications that need dimming and selectable output current. Its multi-current design and 25W power rating make it suitable for commercial and professional LED lighting use cases where flexible driver selection is important.
Does the TD-25-200-900-EFP1 support TRIAC dimming only?
No. This driver supports leading-edge (TRIAC), trailing-edge (ELV), and push dimming. That makes it a flexible option for projects that need compatibility with multiple dimming control styles.
What are the key output specs of the TD-25-200-900-EFP1?
This model is rated at 25W and has an output voltage of 45V. The product is identified as a selectable constant-current driver with a 200mA to 900mA output range in the model designation.
Is this LED driver suitable for low-flicker lighting applications?
Yes. The product description states that it is flicker-free to IEEE 1789 and can achieve the exemption assessment level. It also uses T-PWM digital dimming for a smoother visual experience.
How fine is the dimming performance on this model?
The TD-25-200-900-EFP1 supports a 0 to 100 percent dimming range. Its listed dimming depth is up to 0.01 percent, which makes it a strong choice where precise low-end dimming performance matters.
What operating environment is this driver rated for?
This model is rated for ambient temperatures from -20°C to 50°C. It also includes thermal management and intelligent power life protection features described by the manufacturer.
What warranty is offered for the LTECH TD-25-200-900-EFP1?
This LED driver includes a 5-year warranty period. That can be useful for commercial buyers looking for longer-term coverage on LED power components.
