Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

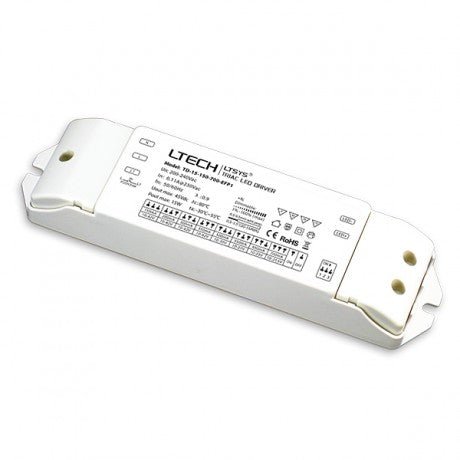

LTECH TD-25-200-900-EFP1 25W 200mA 3~ 900mA CC Triac LED Driver - Selectable Output
SKU:
TD-25-200-900-EFP1
Datasheet:
$33.57 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
LTECH TD-25-200-900-EFP1 25W 200mA 3~ 900mA CC Triac LED Driver - ...
$33.57 USD
Unit price /
Unavailable
Description
Description
- Support Leading edge (Triac)
- Trailing edge (ELV) and Push Dimmer.
- Built-in SCM
- dimming curve and smoothing time can be customized.
- T-PWM digital dimming
- present a perfect visual experience.
- Dimming range: 0~100%
- dimming depth: Max. 0.01%.
- Flicker-free (IEEE 1789)
- achieve the level of exemption assessment.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Over load / Over-heat / Short circuit protection
- recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating25 Watt
-
Output Voltage45 Volt
-
Rated Current0.2 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.31 lb
