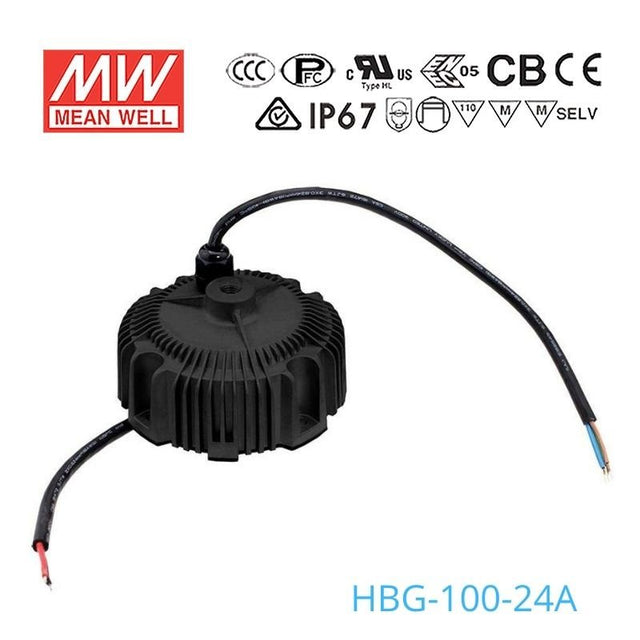

Mean Well HBG-100-24A Power Supply 100W 24V - Adjustable
The HBG-100 is a 100W Mean Well power converter (input range: 14.4~24V).
Key Features
- ✓ Input voltage range: 14.4~24V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating96 Watt
-
Output Voltage25 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HBG-100-24A for a 24V constant-current LED downlight?
It can fit a constant-current LED downlight when the LED load operates within the 14-24V constant-current range and stays within the 96W rating. This is a constant-current driver, not a constant-voltage power supply, so it is meant for LED loads that are specified to run from a controlled current source. Its IP65 water-resistant housing also suits downlight projects exposed to dust or light moisture.
Is this driver suitable for signage modules that need a constant-current power source?
Yes, if the signage modules are designed for constant-current operation and their total load falls within the 14-24V CC range and 96W power limit. It should not be used as a 24V constant-voltage supply for modules that expect a fixed-voltage input. The wide 90-305VAC input is useful for signage projects across varied mains conditions.
Can the HBG-100-24A run a small LED array for commercial lighting?
It is appropriate for a small LED array when the array is built for constant-current operation and the total forward-voltage demand stays inside 14-24V. The available output power is 96W, so the array's total load must remain within that limit. Its circular metal-case design is also intended for high/low bay light style fixtures in the 100W class.
Will this work with a custom LED board or COB module?
It can work with a custom LED board or COB module if that LED load is specified for constant-current drive and falls within the 14-24V CC output range. The number of LEDs depends on the forward voltage of each LED, so compatibility is determined by the total forward-voltage requirement rather than a fixed LED count. The 96W rating is the other key limit to check.
Is the HBG-100-24A suitable for damp or outdoor-adjacent environments?
This model is rated IP65 water-resistant, so it is better suited to demanding environments than an indoor-only driver. Its operating temperature range is -40°C to +85°C, which supports use in both very cold and very hot conditions. That said, IP65 means the enclosure rating should match the overall fixture design and environment.
