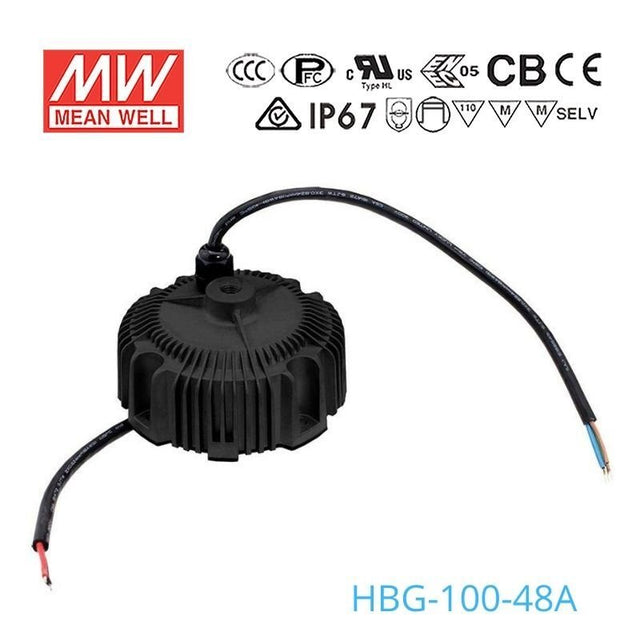

Mean Well HBG-100-48A Power Supply 100W 48V - Adjustable
The HBG-100 is a 100W Mean Well power converter (input range: 14.4~24V).
Key Features
- ✓ Input voltage range: 14.4~24V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating96 Watt
-
Output Voltage49 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can the HBG-100-48A power LED downlights that need constant current in the 28-48V range?
Yes, this driver is designed for constant current LED loads operating in a 28-48V CC range, with a 96W rating. It should be used with downlights specified for constant current rather than constant voltage input.
Is the HBG-100-48A a good choice for small LED arrays in enclosed fixtures?
It can be, provided the LED array is a constant current load that stays within the 28-48V CC range. The exact number of LEDs depends on the forward voltage of each LED, so sizing is based on the array voltage, not a preset LED quantity.
Can I use this driver for signage modules in damp or sheltered locations?
The HBG-100-48A is rated IP65, so it is water-resistant rather than fully waterproof. That makes it better suited to damp or protected environments than applications that require the deeper sealing of an IP67 model.
Does the HBG-100-48A fit high bay and low bay LED fixture designs?
Yes, the listed features identify it for high and low bay lighting, and the circular housing supports that style of fixture layout. The LED engine still needs to be a constant current load within the 28-48V range and 96W rating.
How is the HBG-100-48A positioned against the other HBG-100 output groups?
In the HBG-100 family, 24V models are 96W with 4mA and 14-24V CC output, 36V models are 97.2W with 2.7mA and 21-36V CC output, 48V models are 96W with 2mA and 28-48V CC output, and 60V models are 96W with 1.6mA and 36-60V CC output. The HBG-100-48A belongs to the 48V-class group.
