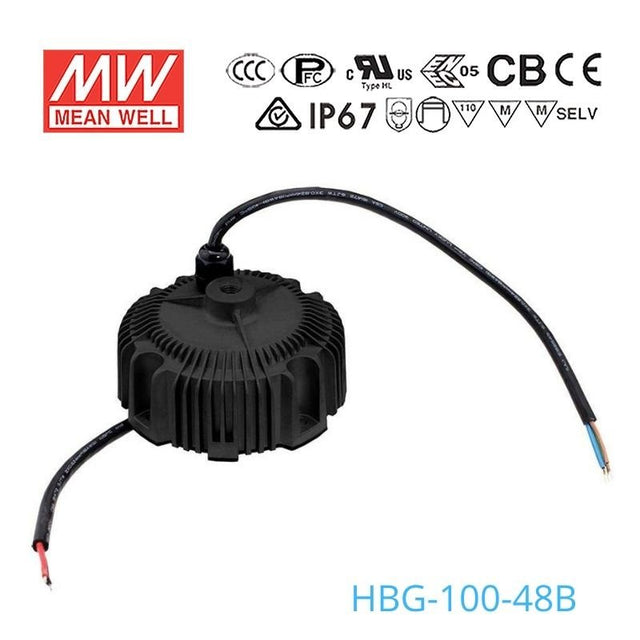

Mean Well HBG-100-48B Power Supply 100W 48V - Dimmable
The HBG-100 is a 100W Mean Well power converter (input range: 14.4~24V).
Key Features
- ✓ Input voltage range: 14.4~24V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating96 Watt
-
Output Voltage49 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-100-48B for a high bay LED light?
Yes, this LED driver is built for high or low bay lighting and uses a circular shape with a metal case for 100W+ applications. It provides constant current output with a 28-48V CC range, 49V output voltage, and 96W power, so the fixture must match those driver requirements.
Is the HBG-100-48B suitable for LED signage modules?
It can work for signage modules only if the modules are designed for a constant current LED driver rather than a constant voltage power supply. This model delivers constant current output across a 28-48V range with 96W power and has an IP67 waterproof rating for demanding environments.
Can this driver power a small LED array?
Yes, it can be used for a small LED array when the array is designed for constant current operation and falls within the 28-48V CC output range. The driver provides 96W power with a 49V output specification, so the array needs to match both the electrical range and power level.
Can I use this LED driver for LED downlights?
It may be suitable for LED downlights if the downlight uses a constant current driver and its load fits within the 28-48V CC voltage range. This is not a constant voltage power supply, so it should only be paired with downlights designed for constant current operation.
How do I know if my LEDs are compatible with the HBG-100-48B?
The key compatibility check is whether your LEDs require a constant current driver and whether the total LED load falls within the 28-48V constant current output range. The number of LEDs depends on each LED forward voltage, so compatibility cannot be determined by LED count alone.
Can the HBG-100-48B be used outdoors or in harsh temperatures?
This model is rated IP67 waterproof, which makes it suitable for wet or dusty environments when the overall fixture is designed for those conditions. It is also rated for operation from -40°C to +85°C.
What is the difference between the HBG-100-48B and other HBG-100 constant current versions?
Within the HBG-100 series, the 24V versions are 96W with 4mA output and a 14-24V CC range, the 36V versions are 97.2W with 2.7mA output and a 21-36V CC range, the 48V versions are 96W with 2mA output and a 28-48V CC range, and the 60V versions are 96W with 1.6mA output and a 36-60V CC range. The HBG-100-48B is the dimmable 48V version in that group, with 96W power and a 28-48V CC range.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HBG-100 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBG-100-48AB Power Supply 100W 48V - Adjustable and Dimmable | 96W | 49V | 2A | IP65 | $49.09 | View |
