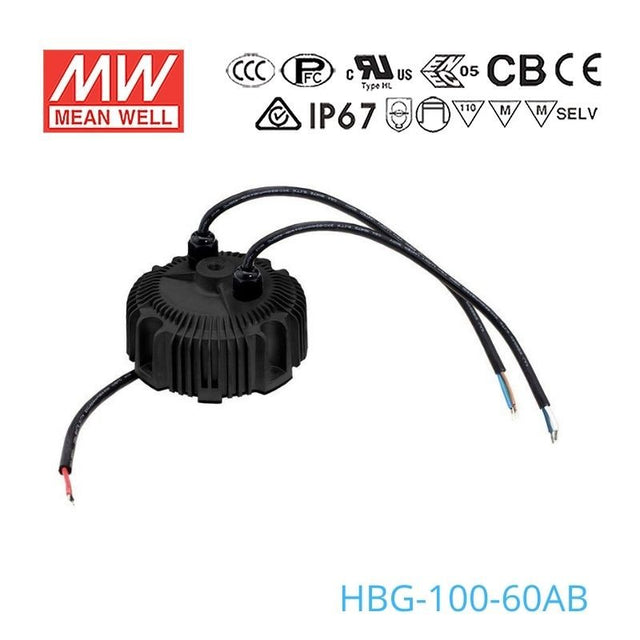

Mean Well HBG-100-60AB Power Supply 100W 60V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HBG-100-60AB Power Supply 100W 60V - Adjustable and Dimmable
The HBG-100 is a 100W Mean Well power converter (input range: 14.4~24V).
Key Features
- ✓ Input voltage range: 14.4~24V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating96 Watt
-
Output Voltage62 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.62 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-100-60AB for a high bay LED fixture?
Yes, this model is intended for high and low bay lighting and uses a constant current output for LED loads. It delivers up to 96W with a constant current voltage range of 36-60V, so the fixture's LED array needs to match that range. Its IP65 water-resistant housing and metal case also make it a fit for demanding lighting environments.
Can this LED driver power a 60V-class LED array?
Yes, if the LED array is designed for constant current operation and runs within the 36-60V constant current range. The total load also needs to stay within the 96W rating. It should not be used as a constant voltage power supply for loads that expect fixed-voltage output.
Can I use this driver with LED downlights?
You can use it with LED downlights only if the downlight uses a constant current driver and its LED load falls within the 36-60V constant current range. The driver is rated for 96W, so the downlight load must stay within that limit. If the downlight requires constant voltage instead, this is not the correct type of driver.
Is the HBG-100-60AB suitable for signage modules or small LED arrays?
It can be used for signage modules or small LED arrays when the load is constant current and operates within 36-60V. The number of LEDs depends on each LED's forward voltage, not on a fixed count, and the total load must remain within 96W. Many signage products use constant voltage, so that distinction needs to be confirmed before selecting this driver.
How do I check if my LED load is compatible with this driver?
Start by confirming the LED load is a constant current load, because this unit operates in constant current mode rather than constant voltage mode. The LED load must fall within the 36-60V constant current output range, and the total power must stay within 96W. The number of LEDs depends on each LED's forward voltage, so compatibility is based on the full load voltage rather than a set LED count.
What is the difference between the HBG-100-60AB and other HBG-100 series versions?
Within the HBG-100 family, the main output options are 14-24V at 96W for the 24V versions, 21-36V at 97.2W for the 36V versions, 28-48V at 96W for the 48V versions, and 36-60V at 96W for the 60V versions. The HBG-100-60AB is the 36-60V, 96W version in that group. Other sibling suffixes in the same voltage class include HBG-100-60, HBG-100-60A, HBG-100-60B, HBG-100-60DA, and HBG-100-60E.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HBG-100 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBG-100-48AB Power Supply 100W 48V - Adjustable and Dimmable | 96W | 49V | 2A | IP65 | $49.09 | View |
