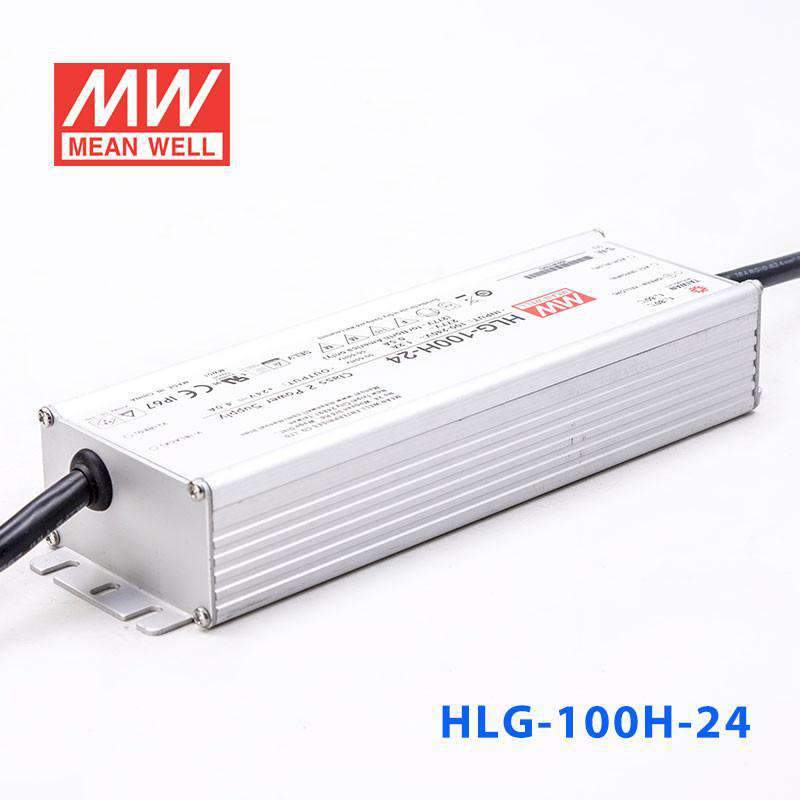

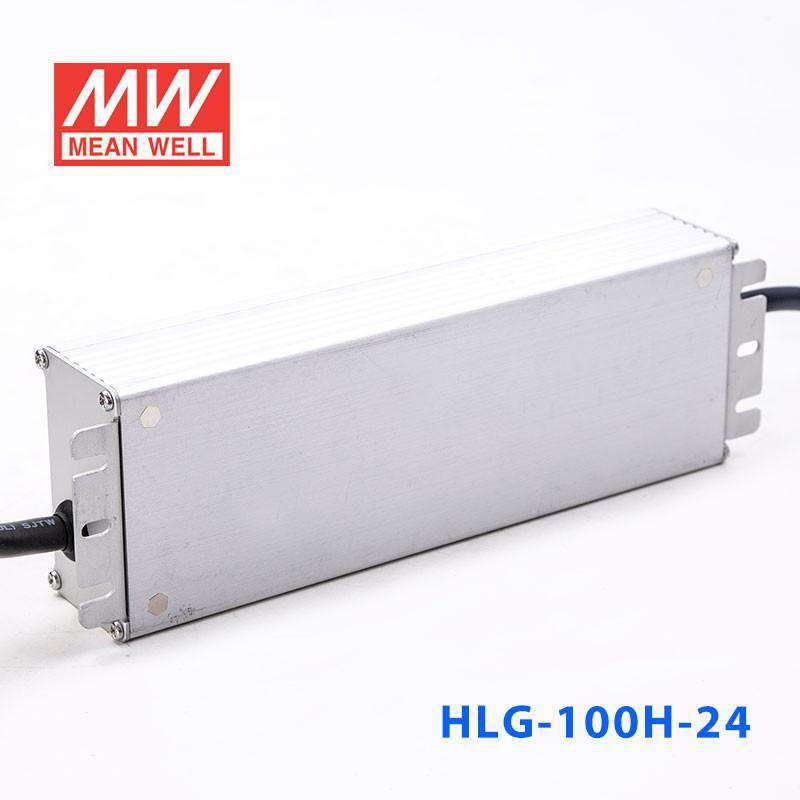

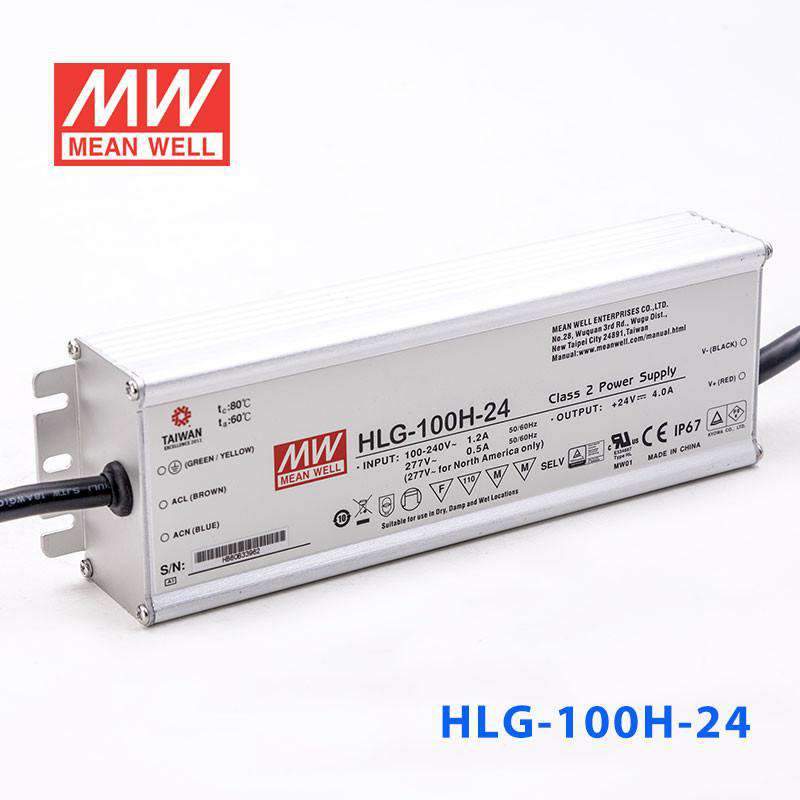

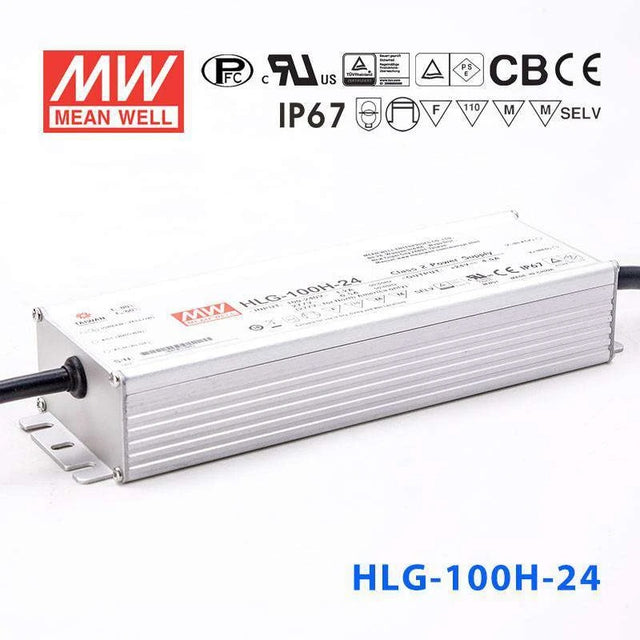

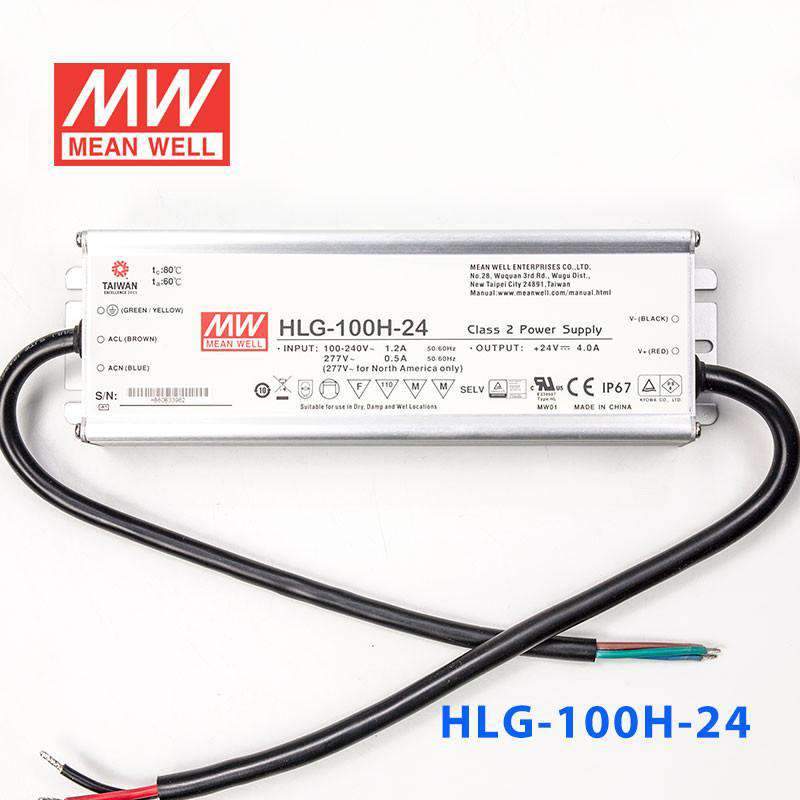

Mean Well HLG-100H-24 Power Supply 100W 24V
The HLG-100H is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HLG-100H-24 to power 24V LED strip lighting outdoors?
Yes. The HLG-100H-24 delivers 24V at up to 4A (100W) and has an IP67 waterproof rating, making it suitable for outdoor 24V LED strip runs exposed to rain, snow, or washdown. Its -40°C to +80°C operating range covers most climates.
Is the HLG-100H-24 a good driver for 24V LED channel-letter signage?
Yes. 24V is one of the most common voltages for channel-letter LED modules, and the HLG-100H-24 provides 100W at that voltage. Its IP67 enclosure and wide 90-305VAC input make it a reliable choice for outdoor sign cabinets worldwide.
Can I power 24V constant-voltage LED panels with the HLG-100H-24?
The HLG-100H-24 operates in constant-current mode with a CC voltage range of 12-24V. It is designed for LED loads that regulate via current rather than voltage. Verify that your LED panels are compatible with constant-current drive before using this supply.
How many meters of 24V LED strip can the HLG-100H-24 power?
Divide the 100W maximum by the strip's rated power per meter. For example, a 24V strip consuming 14.4W/m would allow roughly 6.9 meters (100W / 14.4W per meter). Check your strip's rated power per meter and ensure the total draw does not exceed 100W.
Can the HLG-100H-24 be used in freezing outdoor conditions?
Yes. It is rated for operation down to -40°C, so it handles sub-zero winter environments without issue. The IP67 waterproof casing also protects against ice, snow, and condensation buildup.
How does the HLG-100H-24 compare to other voltage options in the HLG-100H series?
The HLG-100H series offers the same 100W power in voltages from 20V to 54V. The -24 model outputs 24V at 4A, while the -20 gives 20V at 4.8A and the -36 gives 36V at 2.65A, for example. All share the same physical dimensions (220 x 68 x 38.8 mm) and the same IP67/IP65 ratings depending on suffix. Choose the voltage that matches your LED load.
