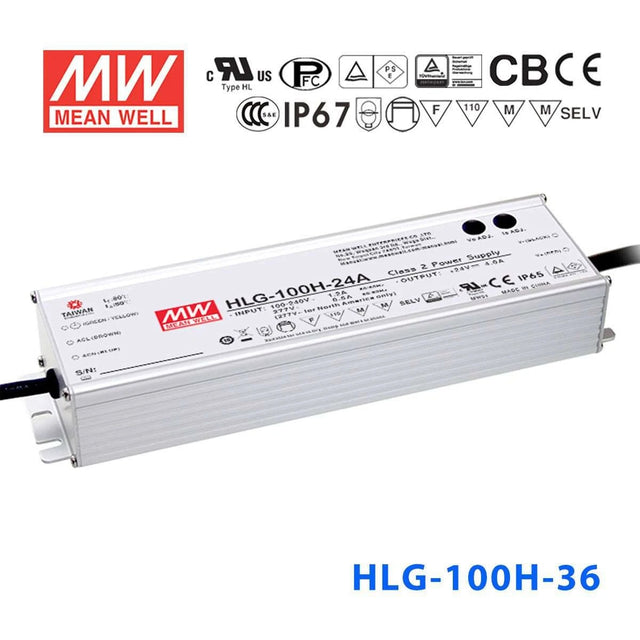

Mean Well HLG-100H-36 Power Supply 100W 36V
The HLG-100H is a 100W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating100 Watt
-
Output Voltage36 Volt
-
Rated Current2.65 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HLG-100H-36 to power 36V LED strip lighting outdoors?
Yes. The HLG-100H-36 delivers 36V at up to 2.65A (100W) with an IP67 waterproof rating, making it fully suitable for outdoor 36V LED strip installations. Its sealed aluminium housing handles rain, dust, and temperatures from -40°C to +80°C.
Is the HLG-100H-36 appropriate for powering 36V LED high-bay warehouse lights?
It can power 36V high-bay LED fixtures up to 100W total. The constant-current mode with an 18-36V range provides stable output for LED modules, and the IP67 rating allows installation in dusty or humid warehouse environments without an additional enclosure.
Can I use the HLG-100H-36 for 36V LED channel letter signage?
Yes. At 100W and 36V, the HLG-100H-36 can drive LED modules commonly used in channel letter signs. The higher 36V output is efficient for longer module chains since it reduces current draw per module. Its IP67 rating suits outdoor sign cabinet installations.
How many meters of 36V LED strip can the HLG-100H-36 support?
Divide the 100W maximum by your strip's rated wattage per meter. For a 36V strip at 10W/m, you could power up to 10 meters (100W / 10W per meter). For a strip at 15W/m, the maximum drops to about 6.6 meters. Always check your strip's rated power per meter.
Can the HLG-100H-36 be mounted in an outdoor location exposed to rain and direct sunlight?
Yes. The IP67 waterproof rating protects against dust ingress and temporary immersion, so direct rain exposure is well within its capability. The -40°C to +80°C operating range and aluminium casing handle UV and temperature cycling, though shading the unit from prolonged direct sun helps maximize the 7-year warranty lifespan.
What voltage options are available in the HLG-100H series?
The HLG-100H series is available in output voltages of 20V (4.8A), 24V (4A), 30V (3.2A), 36V (2.65A), 42V (2.28A), 48V (2A), and 54V (1.77A). All variants share the same 100W power rating. Each voltage is offered in base, A (adjustable), AB (adjustable + dimmable), and B (dimmable) configurations.
