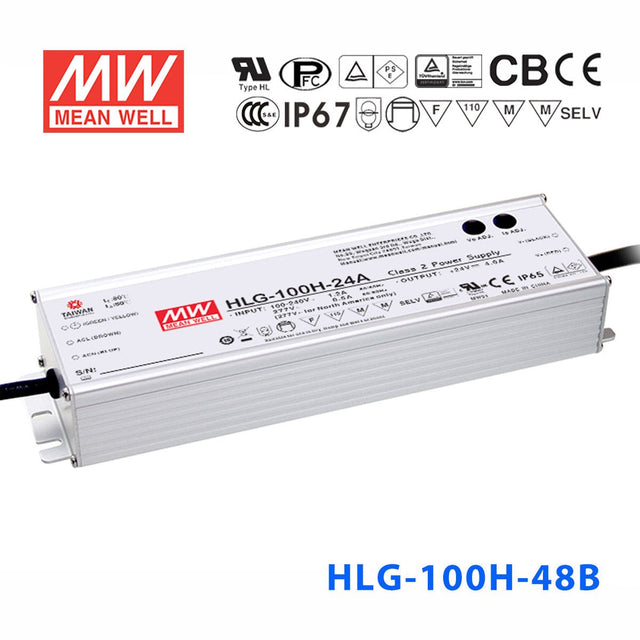

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HLG-100H-48AB Power Supply 100W 48V - Adjustable and Dimmable

Name: Mean Well HLG-100H-48AB Power Supply 100W 48V - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-100H-48AB
Price: 53.5 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiency

SKU:

HLG-100H-48AB

$53.50 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HLG-100H is a 100W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY &
✓ 3 years warranty

Brand

Mean Well
Series

HLG Series
Power Rating

100 Watt
Output Voltage

48 Volt
Rated Current

2 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

8.66 in
Width

2.68 in
Height

1.53 in
Weight

2.47 lb

Frequently Asked Questions

Can I use the HLG-100H-48AB with a dimming controller for 48V LED office lighting?

Yes. The HLG-100H-48AB supports 1-10V, PWM, and resistance dimming signals, making it compatible with building management systems and standalone dimming controllers. The adjustable output also lets you fine-tune the baseline brightness for 48V LED fixtures up to 100W.

Is the HLG-100H-48AB suitable for dimmable 48V LED display case or museum lighting?

It is a strong choice where precise brightness control matters. The built-in potentiometer sets the output operating point, while the dimming input enables real-time brightness adjustment to highlight exhibits or merchandise. Total LED load must stay at or below 100W at 48V.

Can I power a dimmable 48V LED video wall backlight with the HLG-100H-48AB?

Yes, provided the backlight array draws no more than 100W. The HLG-100H-48AB delivers 48V at up to 2A with both adjustable output and dimming capability. The dimming input allows synchronizing brightness with video content or ambient light levels.

How many meters of 48V LED strip can the HLG-100H-48AB power?

The maximum strip length depends on the strip's rated wattage per meter, not the dimming level. With 100W available at 48V, a strip rated at 6W/m allows approximately 16.6 meters (100W / 6W per meter). Always verify your strip's rated power per meter and stay within 100W total.

Can the HLG-100H-48AB be used in a damp indoor environment like a natatorium or spa?

The IP65 rating protects against dust and low-pressure water spray, which is generally sufficient for damp indoor spaces where the driver is not directly submerged. Ensure it is mounted away from direct water splash zones. For wet locations with submersion risk, the IP67-rated HLG-100H-48B offers better protection.

How does the HLG-100H-48AB differ from the 48A and 48B models?

The -48AB combines both adjustable output (potentiometer) and dimming input (1-10V/PWM/resistance) at IP65 water-resistant. The -48A has adjustable output only without dimming at IP65. The -48B has dimming only without potentiometer adjustment at IP67 waterproof. All three share the same 100W, 48V, 2A core specs.
