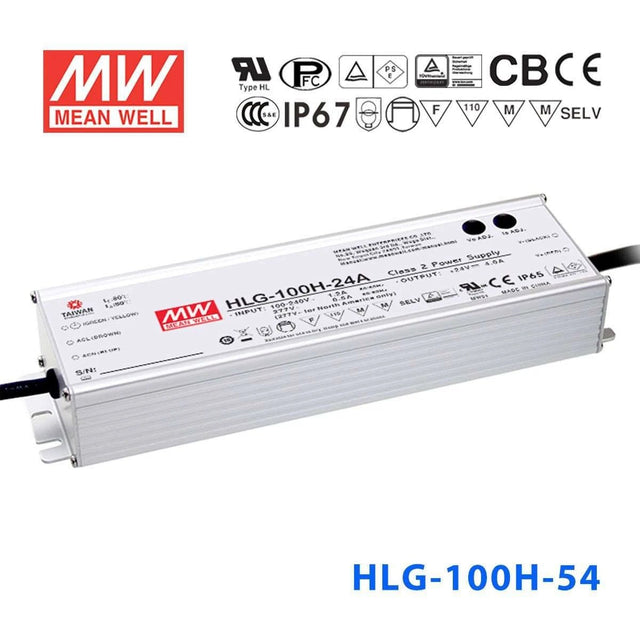

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HLG-100H-54 Power Supply 100W 54V

Name: Mean Well HLG-100H-54 Power Supply 100W 54V
Brand: Mean Well
SKU: HLG-100H-54
Price: 50.98 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiency

SKU:

HLG-100H-54

$50.98 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HLG-100H is a 100W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY &
✓ 3 years warranty

Brand

Mean Well
Series

HLG Series
Power Rating

100 Watt
Output Voltage

54 Volt
Rated Current

1.77 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

8.66 in
Width

2.68 in
Height

1.53 in
Weight

2.47 lb

Frequently Asked Questions

Can I use the HLG-100H-54 to power 54V LED panel lights?

Yes. The HLG-100H-54 delivers 54V at up to 1.77A (100W) in constant-current mode, which is well suited for 54V LED panel arrays in commercial or architectural settings. Its IP67 waterproof rating also allows outdoor or damp-location mounting without additional enclosures.

Is the HLG-100H-54 suitable for powering 54V LED high-bay fixtures?

It can drive 54V LED high-bay fixtures provided the total fixture load stays at or below 100W. The constant-current operation across a 27-54V range helps maintain stable brightness, and the wide 90-305VAC input accommodates industrial mains supplies worldwide.

Can I use the HLG-100H-54 for 54V LED signage in an outdoor cabinet?

Yes. At 100W and 54V output with an IP67 waterproof rating, it can be mounted directly inside outdoor sign enclosures or even in exposed locations. The aluminium casing and -40°C to +80°C operating range handle harsh weather conditions reliably.

How many meters of 54V LED strip can the HLG-100H-54 support?

Divide the 100W maximum output by your strip's rated wattage per meter. For example, a strip drawing 8W/m could run up to 12.5 meters (100W / 8W per meter = 12.5m). Always check your strip's rated power per meter and keep the total load at or below 100W.

Can the HLG-100H-54 withstand rain and outdoor weather exposure?

Yes. The HLG-100H-54 carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary submersion in water. Combined with its sealed aluminium housing and -40°C to +80°C operating range, it is built for exposed outdoor installations.

What are the differences between the HLG-100H-54, 54A, 54AB, and 54B models?

All four share the same 100W, 54V, 1.77A core output. The base HLG-100H-54 has fixed output and IP67 waterproof rating. The -54A adds an adjustable output potentiometer but drops to IP65 water-resistant. The -54AB combines adjustable output with dimming capability at IP65. The -54B offers dimming without adjustable output and retains the IP67 waterproof rating.
