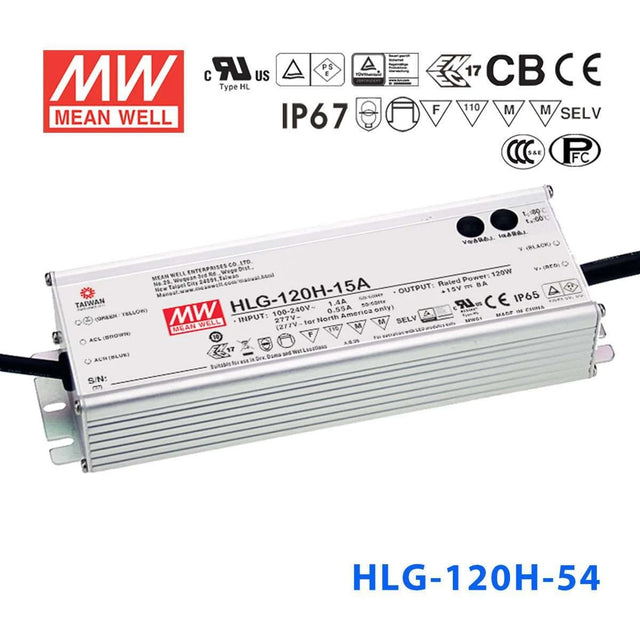

Mean Well HLG-120H-54 Power Supply 120W 54V
The HLG-120H is a 120W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating120 Watt
-
Output Voltage54 Volt
-
Rated Current2.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HLG-120H-54 to power 54V LED fixtures outdoors?
Yes. The HLG-120H-54 outputs 54V at up to 2.3A (120W) and is IP67 waterproof, making it suitable for outdoor LED fixtures, street-light retrofits, or facade lighting that operates at 54V. Its aluminium casing resists corrosion in exposed environments.
Is the HLG-120H-54 a good driver for high-voltage LED panel arrays?
Yes. The 54V output is well matched to LED panels and COB modules that use higher forward voltages. With 120W capacity and a CC voltage range of 27-54V, it can drive series-connected LED arrays as long as the total load does not exceed 120W.
Can I run 54V LED grow lights from the HLG-120H-54?
Yes, provided the grow light requires 54V input and draws 120W or less. The constant-current operation mode and CC range of 27-54V ensure stable output even if the LED forward voltage shifts with temperature changes during long grow cycles.
How many meters of 54V LED strip can the HLG-120H-54 handle?
Divide 120W by your strip's power consumption per meter. For example, a 54V strip rated at 10W/m could run up to 12 meters (120W / 10W per meter = 12m). Always check your strip's rated power per meter and keep total load at or below 120W.
Can the HLG-120H-54 be installed in a fully exposed outdoor location?
Yes. Its IP67 waterproof rating protects against dust and temporary submersion. Combined with a -40°C to +80°C operating range, it can be permanently mounted outdoors on walls, poles, or inside open junction boxes without additional weatherproofing.
What are the differences between the HLG-120H-54, 54A, 54AB, and 54B models?
All four share the same 120W / 54V / 2.3A core specs. The base HLG-120H-54 has no output adjustment and is IP67 waterproof. The -54A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -54AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -54B adds dimming input only and retains IP67.
