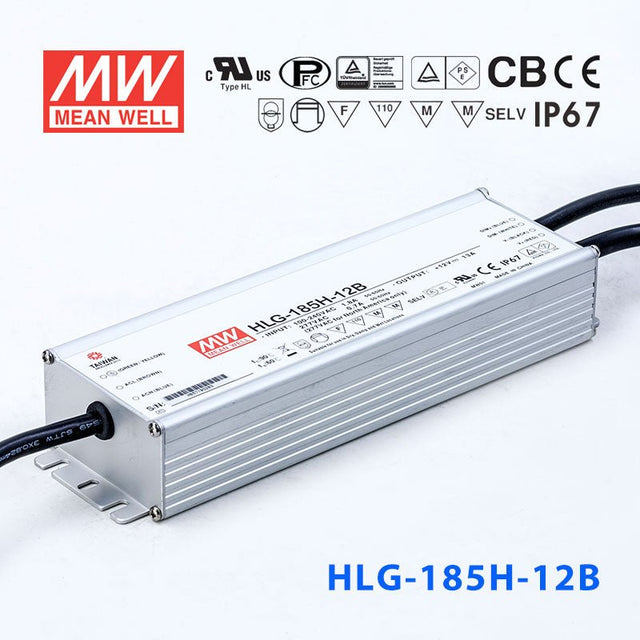

Mean Well HLG-185H-12AB Power Supply 156W 12V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-185H-12AB Power Supply 156W 12V - Adjustable and Dimm...
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating156 Watt
-
Output Voltage12 Volt
-
Rated Current13 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-12AB with a 1-10V dimmer for 12V LED strip lighting in a restaurant?
Yes. The HLG-185H-12AB accepts 1-10V and PWM dimming signals, so you can pair with a wall dimmer or lighting controller to smoothly adjust 12V LED strip brightness for ambiance. It delivers up to 156W at 12V and has a potentiometer for setting maximum brightness.
Is the HLG-185H-12AB compatible with smart-home lighting controllers for 12V LED zones?
Yes. Any smart-home controller that outputs a 1-10V or PWM signal can drive the dimming input on the HLG-185H-12AB. This allows automated scheduling, scene control, and remote brightness adjustment for 12V LED zones up to 156W total load.
Can the HLG-185H-12AB power dimmable 12V LED cove or accent lighting?
Yes. With 156W at 12V, built-in dimming, and an adjustable potentiometer, the HLG-185H-12AB is well suited for architectural cove lighting and accent applications where smooth brightness control and precise output trimming are important.
How many meters of 12V LED strip can the HLG-185H-12AB drive?
The HLG-185H-12AB provides up to 156W at 12V. Divide 156 by your strip's wattage per meter. For example, a strip rated at 12W/m would allow up to 13 meters (156W / 12W per meter = 13m). Always check your strip's rated power per meter before sizing the installation.
Can the HLG-185H-12AB be installed in a semi-outdoor location like a covered deck?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered decks, soffits, or sheltered patios. For fully exposed outdoor installations with direct rain, the IP67-rated HLG-185H-12B with dimming would be the better option.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-185H Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-185H-24A Power Supply 185W 24V - Adjustable | 185W | 24V | 7.8A | IP65 | $58.71 | View |
