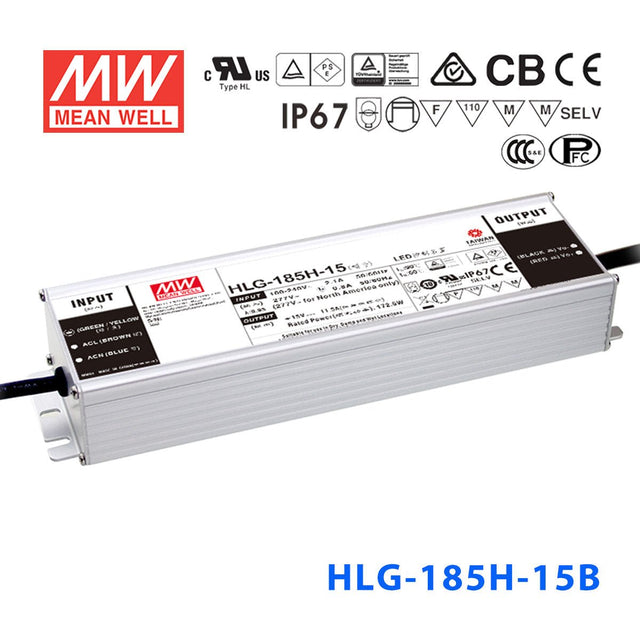

Mean Well HLG-185H-15AB Power Supply 172.5W 15V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-185H-15AB Power Supply 172.5W 15V - Adjustable and Di...
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating172.5 Watt
-
Output Voltage15 Volt
-
Rated Current11.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-15AB with a 1-10V dimmer to control 15V LED strip brightness?
Yes. The HLG-185H-15AB accepts 1-10V and PWM dimming signals, letting you pair with a standard 1-10V wall dimmer or automation controller for smooth brightness adjustment of 15V LED strips. It also has a built-in potentiometer for setting the maximum output level.
Is the HLG-185H-15AB a good choice for smart-home controlled 15V LED lighting?
Yes. Its dimming input (1-10V/PWM) can be driven by most smart-home lighting controllers or building management systems. Combined with 172.5W at 15V and adjustable output, it gives you both automated and manual brightness control for 15V LED installations.
Can the HLG-185H-15AB power 15V architectural LED cove or accent lighting?
Yes. With 172.5W at 15V and built-in dimming capability, it is well suited for cove, accent, or niche lighting where smooth brightness control matters. The adjustable output lets you fine-tune the drive level to match the specific 15V LED strip installed.
Can I use the HLG-185H-15AB in a retail display where dimming is needed for different times of day?
Yes. The 1-10V/PWM dimming input allows a timer or building automation system to adjust 15V LED brightness throughout the day. At 172.5W it can power substantial retail lighting runs, and the built-in potentiometer lets you set the maximum brightness ceiling.
How many meters of 15V LED strip can the HLG-185H-15AB drive?
The HLG-185H-15AB delivers up to 172.5W. Divide 172.5 by your strip's wattage per meter to find the maximum length. A strip rated at 10W/m, for example, could run up to 17.25 meters (172.5W / 10W per meter). Always check your strip's rated power per meter before sizing.
Is the HLG-185H-15AB rated for damp or semi-exposed installations?
Yes. Its IP65 water-resistant rating protects against low-pressure water jets and full dust ingress, making it suitable for covered outdoor areas, damp basements, or semi-exposed commercial spaces. For fully rain-exposed or submersible installations, choose the IP67-rated HLG-185H-15B with dimming instead.
