Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

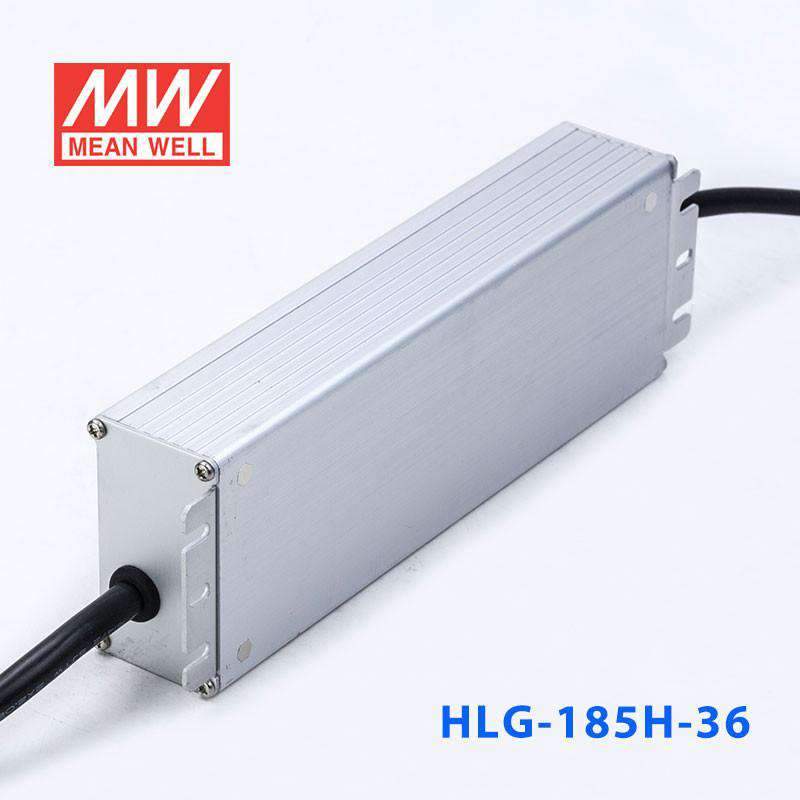

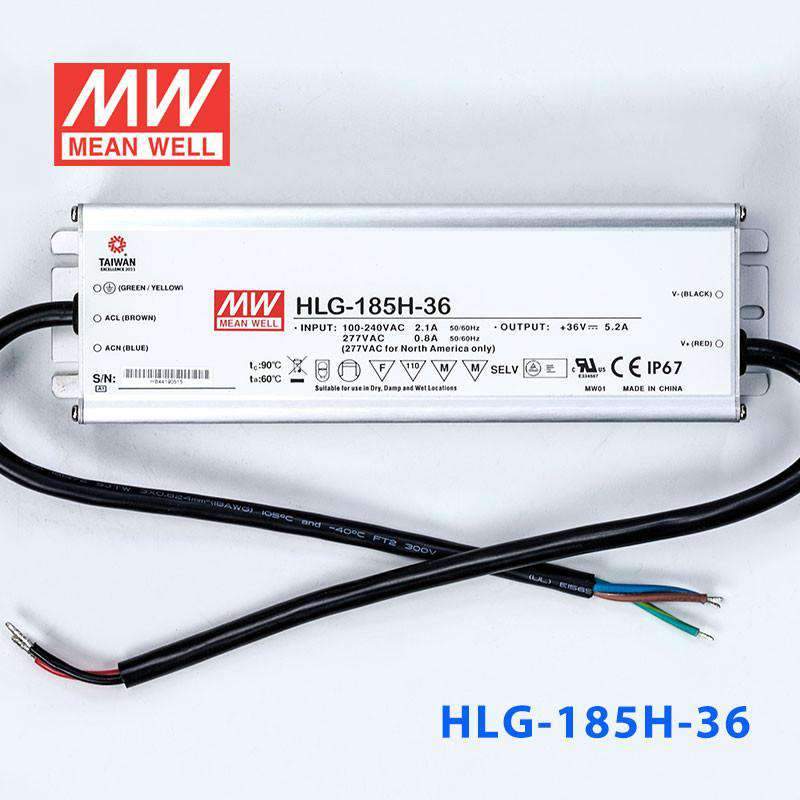

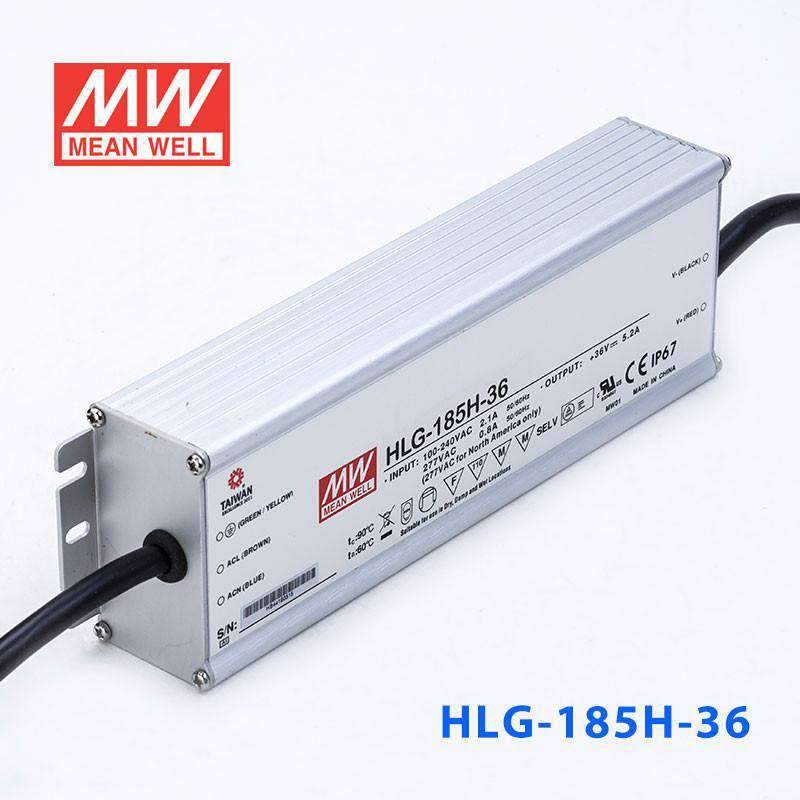

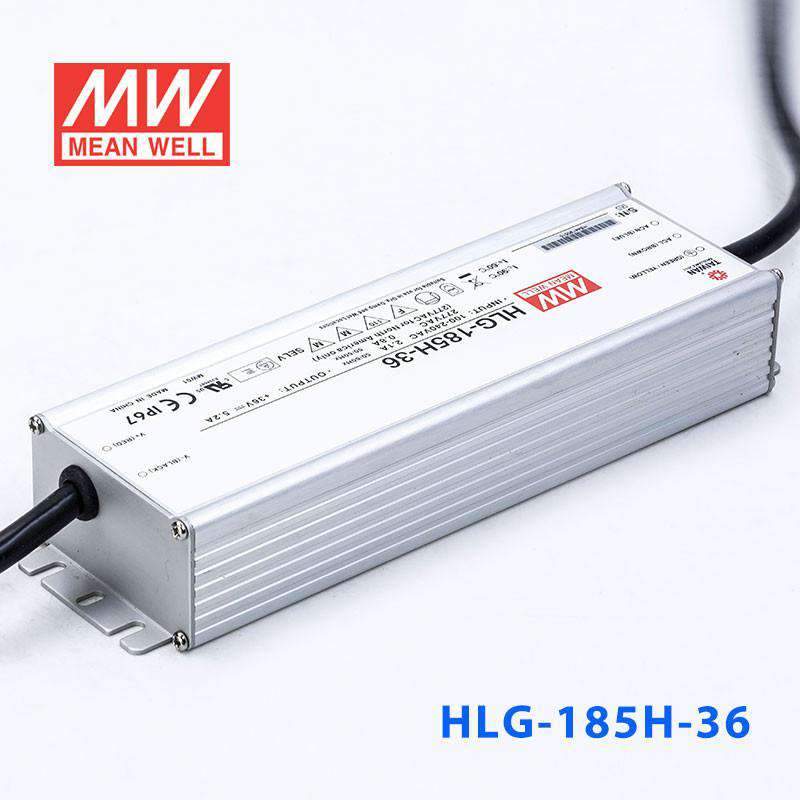

Mean Well HLG-185H-36 Power Supply 185W 36V
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating185 Watt
-
Output Voltage36 Volt
-
Rated Current5.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-36 to power 36V LED strip lighting in an outdoor sign cabinet?
Yes. The HLG-185H-36 outputs 36V at up to 5.2A (185W) and has an IP67 waterproof rating, making it fully suitable for outdoor sign cabinets, channel letters, and enclosed signage applications. The aluminium casing and -40°C to +90°C operating range handle harsh weather year-round.
Is the HLG-185H-36 suitable for powering 36V LED flood lights on a building facade?
Yes. With 185W at 36V and constant-current operation across an 18-36V CC range, this driver reliably powers 36V LED flood or wash fixtures for architectural lighting. The IP67 waterproof rating and wide 90-305VAC input allow permanent exposed outdoor mounting with virtually any mains supply.
Can the HLG-185H-36 drive 36V LED modules in a commercial light box?
Yes. At 185W it provides ample power for large-format light boxes using 36V LED modules. The constant-current mode with an 18-36V CC range ensures stable current delivery to the LED string, and the IP67 rating means the driver can sit inside an outdoor light box enclosure without additional weatherproofing.
How many meters of 36V LED strip can the HLG-185H-36 support?
Divide 185W by your strip's wattage per meter. For example, a 36V strip rated at 14W/m would allow about 13.2 meters (185W / 14W per meter = 13.2m). Always check your strip's rated power per meter and keep the total load at or below 185W.
Can the HLG-185H-36 be installed in a location fully exposed to rain and dust?
Yes. The IP67 rating means it is completely dust-tight and can withstand temporary submersion up to 1 meter. It can be mounted outdoors without any secondary enclosure. The operating temperature range of -40°C to +90°C covers extreme cold and hot climates.
What are the differences between the HLG-185H-36, 36A, 36AB, and 36B variants?
All four share the same 185W / 36V / 5.2A core specs. The base HLG-185H-36 has fixed output and IP67 waterproof rating. The -36A adds output voltage/current adjustment via built-in potentiometer (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -36B adds dimming input only and retains the IP67 waterproof rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-185H Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-185H-24A Power Supply 185W 24V - Adjustable | 185W | 24V | 7.8A | IP65 | $58.71 | View |
