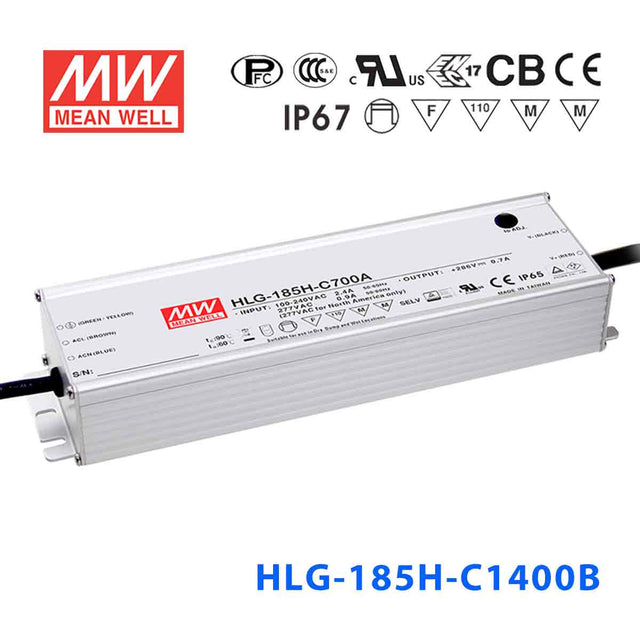

Mean Well HLG-185H-C1400AB Power Supply 200.2W 1400mA - Adjustable and Dimmable

Name: Mean Well HLG-185H-C1400AB Power Supply 200.2W 1400mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HLG-185H-C1400AB
Price: 59.47 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU:

HLG-185H-C1400AB

$59.47 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: EN/AS/NZS
✓ 3 years warranty

Brand

Mean Well
Series

HLG-C Series
Power Rating

200.2 Watt
Output Voltage

143 Volt
Rated Current

1.4 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,ENEC,PSE,RCM,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

8.98 in
Width

2.68 in
Height

1.53 in
Weight

2.54 lb

Frequently Asked Questions

Can I use the HLG-185H-C1400AB for dimmable high-power LED downlight arrays?

Yes. The HLG-185H-C1400AB provides 1400mA constant current across a 71-143V range and includes both output adjustment and 1-10V/PWM dimming input. This combination makes it well suited for commercial downlight strings where both current trimming and smooth brightness control are needed.

Is the HLG-185H-C1400AB a good choice for dimmable LED grow lights?

Yes. Its 1400mA output with 200.2W capacity can drive high-power horticultural LEDs, and the dimming input allows you to adjust light intensity for different growth stages. The adjustable output potentiometer lets you fine-tune current to your specific LED modules, and the IP65 rating handles humid grow-room conditions.

Can this driver power series-connected LED COB fixtures with dimming in a retail space?

Yes. configure your COB fixtures in series so the total forward voltage stays within 71-143V, and ensure each COB is rated for 1400mA. The AB model's dimming input integrates with standard retail lighting control systems for scene setting and energy management. At 200.2W, it handles substantial fixture loads.

How does the HLG-185H-C1400AB differ from the C1400A and C1400B?

All three share the same 200.2W, 1400mA, 71-143V constant-current specs and IP65 rating. The C1400A has only an output adjustment potentiometer. The C1400B has only a dimming input (1-10V/PWM). The C1400AB combines both features, giving you manual current trimming and external dimming control in one unit.

Can I mount the HLG-185H-C1400AB outdoors under a building canopy?

Yes. The IP65 water-resistant enclosure protects against dust ingress and rain splash from any angle, making canopy or soffit mounting suitable. The aluminium casing helps dissipate heat in warm conditions, and the -40°C to +90°C operating range covers extreme climates.

How many LEDs can the HLG-185H-C1400AB drive in a series string?

That depends on each LED's forward voltage at 1400mA. The driver's compliance range is 71-143V, so divide the available voltage by the per-LED forward voltage. For instance, LEDs with a 36V forward voltage would allow up to 3 in series (3 x 36V = 108V, within range). Always verify your LED specifications to keep the total string voltage between 71V and 143V.
