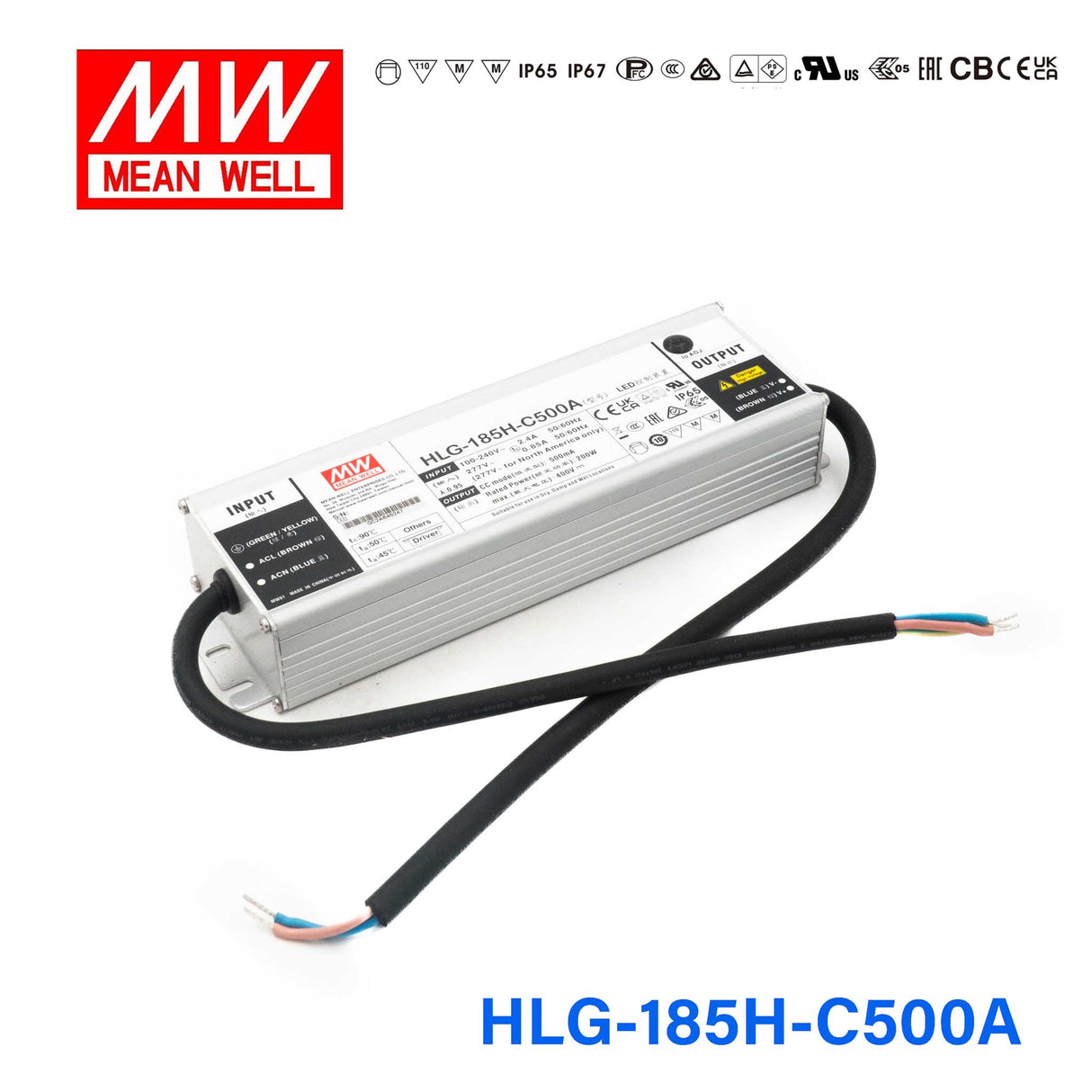

Mean Well HLG-185H-C500A Power Supply 200W 500mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-185H-C500A Power Supply 200W 500mA - Adjustable
Overview
HLG-185H-C500A is the model of this series: rated current 500mA, rated power 200W, typical efficiency 94%. Type A: Io adjustable through built-in potentiometer (IP65).
HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer
- Typical lifetime>62000 hours
- 7 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 500mA
- RATED POWER
- 200W
- CONSTANT CURRENT REGIONNote.2
- 200V ~ 400V
- CURRENT ADJ. RANGE
- Can be adjusted by internal potentiometer 250 ~ 500mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 1000ms/115VAC 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
- EFFICIENCY (Typ.)
- 94%
- AC CURRENT (Typ.)
- 2A / 115VAC 1A / 230VAC 0.85A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 450 ~ 470V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURENote.7
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃(Refer to "Derating Curve")
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 10 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes;
SAFETY & EMC
- SAFETY STANDARDS
- UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1,GB/T19510.213;IP65, J61347-1, J61347-2-13, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
OTHERS
- MTBF
- 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 228*68*38.8mm (L*W*H)
- PACKING
- 1.15Kg; 12pcs/14.8Kg/0.8CUFT
MODEL ENCODING
- A (this model)
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
- D
- Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
- 7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
- 8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED bay lighting
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the HLG-185H-C500A to drive a long series string of LED modules for signage?
Yes. The HLG-185H-C500A outputs 500mA constant current with a 200-400V compliance range, allowing very long series strings of LED signage modules. At 200W, it provides substantial power for large sign faces or channel letter arrays. The adjustable output lets you fine-tune current to match the LEDs' optimal drive point.
Is the HLG-185H-C500A suitable for driving long runs of series-connected LED downlights?
Yes. The 200-400V compliance voltage accommodates extended series strings of downlights, each rated for 500mA. This is useful in commercial corridors or open-plan offices where many fixtures are wired in a single series loop. The adjustable output trims current to optimize efficiency and light output.
Can this driver power series-wired LED modules in a large light box or display?
Yes. The 500mA constant-current output at up to 400V compliance voltage can drive a high number of LED modules in series, which is common in large backlit displays and light boxes. At 200W, it handles substantial illumination loads. The series' IP65 or IP67 rating allows installation in damp or dusty environments near the display.
Is the HLG-185H-C500A appropriate for outdoor LED fixture installations?
Yes, in sheltered locations. The series' IP65 or IP67 rating protects against dust and water jets, making it suitable for covered outdoor mounting areas. It is rated for a case temperature (Tcase) of -40°C to +90°C, with derating per the derating curve. Note that this model outputs high voltage (up to 400V), so proper enclosures and safety practices for high-voltage wiring are essential.
How does the HLG-185H-C500A compare to the C700A and C1050A in the same series?
All are adjustable constant-current drivers rated around 200W. The C500A provides 500mA at 200-400V for the longest possible LED series strings. The C700A delivers 700mA at 143-286V, and the C1050A outputs 1050mA at 95-190V for shorter strings with higher-current LEDs. Choose based on your LED modules' required drive current and forward voltage.
How many LEDs can the HLG-185H-C500A drive in series?
That depends on each LED's forward voltage at 500mA. The compliance range is 200-400V, so the total forward voltage of your series string must fall within that window. For example, LEDs with a 3.0V forward voltage could allow roughly 67 to 133 LEDs in series. Always verify your specific LED forward voltage specifications.
