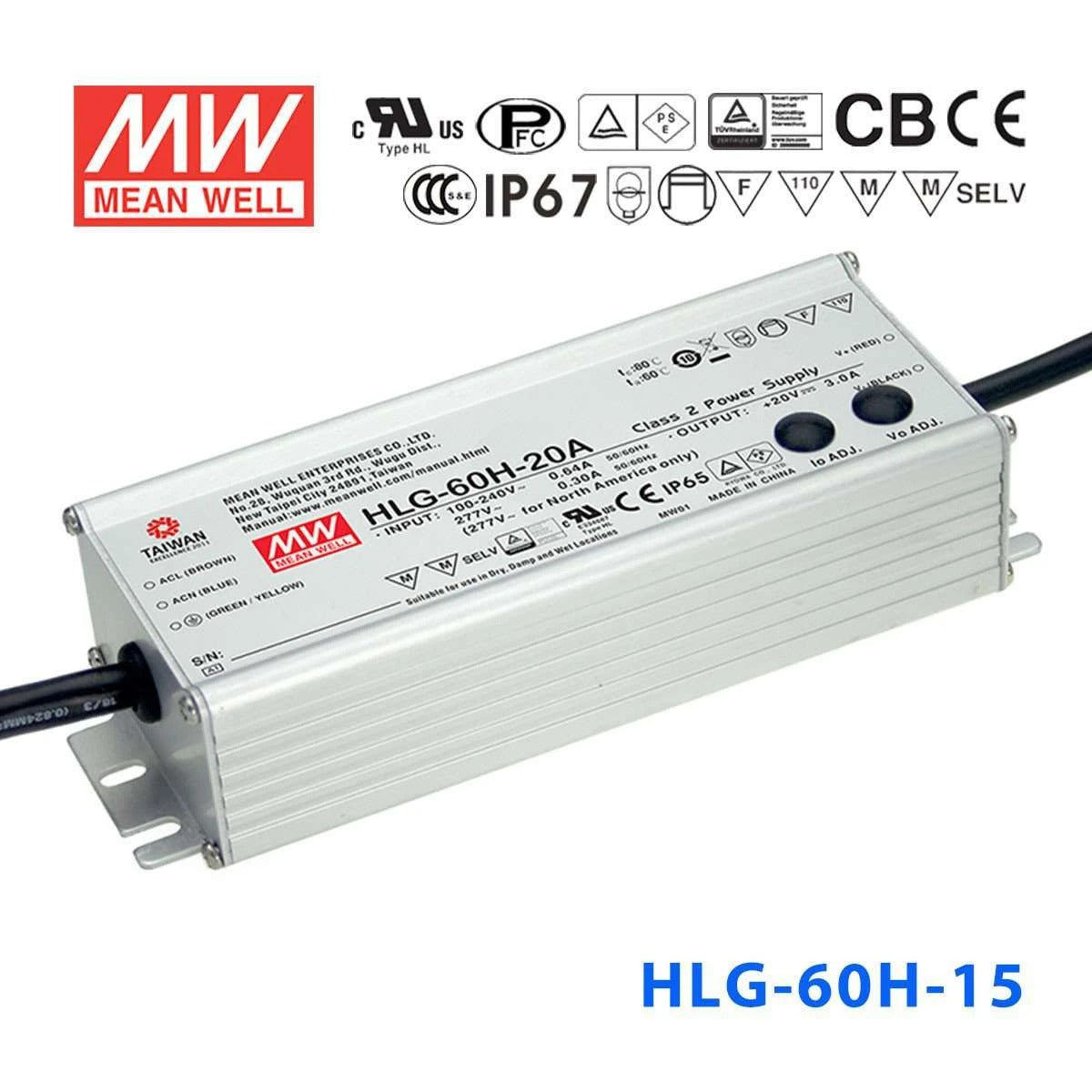

Mean Well HLG-60H-15 Power Supply 60W 15V
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-15 to power 15V LED strip lighting?
Yes. The HLG-60H-15 delivers 60W at 15V, making it suitable for 15V LED strip runs in accent, cove, or under-cabinet applications. Its IP67 waterproof enclosure allows installation in damp or exposed locations without a separate weatherproof housing.
Is the HLG-60H-15 a good fit for small 15V LED sign modules?
Yes. At 60W and 15V output with up to 4A of current, it can reliably power small channel-letter signs or light-box modules that operate on 15V. The compact dimensions of 171 × 61.5 × 36.8 mm make it easy to fit inside most sign enclosures.
Can the HLG-60H-15 power 15V LED landscape path lights?
Yes. The 60W capacity at 15V handles several path-light fixtures in a series-parallel string, and the IP67 waterproof rating means you can mount the driver in a ground-level junction box exposed to soil moisture and rain. Keep the total fixture load at or below 60W.
How many meters of 15V LED strip can the HLG-60H-15 drive?
That depends on the strip's rated power per meter. The HLG-60H-15 provides up to 60W at 15V. For example, if your strip draws 10W/m, you could run up to 6 meters (60W / 10W per meter = 6m). Always check your strip's rated power per meter and keep the total load at or below 60W.
Can the HLG-60H-15 handle direct rain and outdoor exposure?
Yes. The IP67 waterproof rating protects the unit against full dust ingress and temporary immersion in water up to 1 meter depth, so direct rain, sprinkler spray, and ground-level moisture are all within its capability. The operating temperature range of -40°C to +80°C covers most outdoor climates.
What are the differences between the HLG-60H-15, 15A, 15AB, and 15B variants?
All four share the same 60W / 15V / 4A core specs. The base HLG-60H-15 has no output adjustment or dimming and is IP67 waterproof. The -15A adds a built-in potentiometer for voltage/current adjustment (IP65). The -15AB adds both adjustment and dimming input (IP65). The -15B adds dimming input only and retains IP67 waterproof rating.
