Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

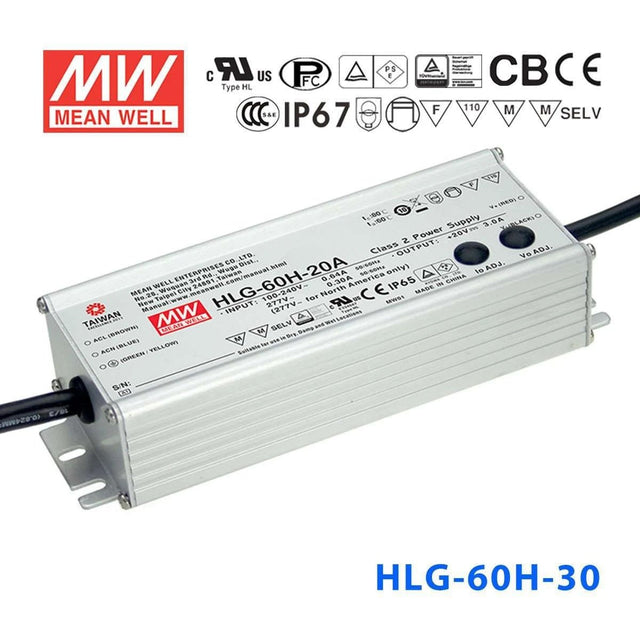

Mean Well HLG-60H-30 Power Supply 60W 30V
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
Can I use the HLG-60H-30 to power 30V LED modules for outdoor signage?
Yes. The HLG-60H-30 outputs 30V at up to 2A (60W) with an IP67 waterproof rating, making it suitable for small outdoor LED signs, channel letters, or lightbox modules that run on 30V. Its wide 90-305VAC input works with mains supplies worldwide.
Is the HLG-60H-30 suitable for powering 30V LED grow lights or horticultural fixtures?
It can drive 30V LED fixtures used in small grow setups, provided the total load stays within 60W. The IP67 rating and aluminium casing make it resilient in humid greenhouse environments. Its constant-current operation with a CC range of 18-30V helps maintain stable output for LED arrays.
Can the HLG-60H-30 drive 30V LED strip lighting in an outdoor installation?
Yes. With 60W at 30V and IP67 waterproofing, it can power 30V LED strips mounted on building exteriors, fences, or landscape features. The -40°C to +80°C operating range ensures reliable performance in both hot summers and freezing winters.
How many meters of 30V LED strip can the HLG-60H-30 power?
Divide 60W by your strip's rated power per meter. For example, a 30V strip drawing 10W/m would allow up to 6 meters (60W / 10W per meter = 6m). A strip at 15W/m would allow 4 meters. Always check your strip's rated power per meter and keep total load at or below 60W.
Can the HLG-60H-30 be directly buried or submerged for underground LED lighting?
Its IP67 rating protects against temporary submersion up to 1 meter, so it can handle ground-level or buried junction boxes where occasional water ingress may occur. However, it is not rated for continuous submersion. For permanent underwater applications, a dedicated submersible enclosure would be needed.
